B-BIQ67-AHP

ATX motherboard supports 12th/13th/14th Gen Intel Core processor, Intel Q670 chipset
Anewtech-Systems-Industrial-Motherboard-B-BIQ67-AHP
  • Support 12th/13th/14th Gen Intel Core i7/i5/i3 processor with Intel Q670 chipset, TDP: 125W
  • Support quad display : VGA/2xHDMI® 2.0/DP++
  • 4 x DDR4 3200 MHz U-DIMM, up to 128G
  • Support M.2 Hailo-8™ AI Accelerator, up to 26 TOPS (option)
  • 1 x Intel i226-V 2.5G LAN, 1 x Intel i226-LM 2.5G LAN
  • 4 x USB2.0 , 6 x USB3.2 Gen2, 2 x USB3.2 Gen1
  • 4 x RS232, 2 x RS232/422/485
  • 8 x SATA3
  • 1 x M.2 M key 2242/2280 support PCIe4.0 x4 for NVMe storage
  • 1 x M.2 B key 3042/3052 support PCIe3.0 x1 + USB3.2 w/ SIM slot for 4G/5G module
  • 1 x M.2 E key 2230 support PCIe3.0 x1 + USB2.0 for WIFI/BT module
  • 2 x PCIe4.0x16 slot; 3 x PCIe4.0x4 slot; 2 x PCI slot
Product Specification
Anewtech-Systems-Industrial-Motherboard-B-BIQ67-AHP-Biostar
CPU SUPPORTLGA1700, support 12th/ 13th /14th Gen Intel® Core Processor
CHIPSETIntel Q670
MEMORY4 x 288-pin DDR4-3200Mhz U-DIMM, up to 128GB
EXPANSION SLOT1 x M.2 B key 3042/3052 support PCIe3.0 x1 + USB3.2 w/ SIM slot for 4G/5G module
1 x M.2 M Key 2242/2280 support PCIe4.0 x4 for NVMe storage
1 x M.2 E Key 2230 support PCIe3.0 x1 + USB2.0, support WIFI/BT module
2 x PCIe4.0 x16 slot (x16 +NA or x8 + x8)
3 x PCIe4.0 x4 slot (PEX4_3 share IO w/ SATA1~4)
2 x PCI slot
GRAPHICSIntel® Integrated Graphics, support quad display
2 x HDMI® 2.0 connectors (4096x2160@60Hz)
1 x DP++1.4 connector (4096x2160 @60Hz)
1 x VGA connector (1920x1200 @60Hz)
AUDIOAudio Codec: ALC897 + ALC105, support 4 ohm 2W amplifier
LANDual 2.5GbE
1 x Intel i226-V
1 x Intel i226-LM, support Intel® vPro
SUPER I/O CHIPFINTEK F81966

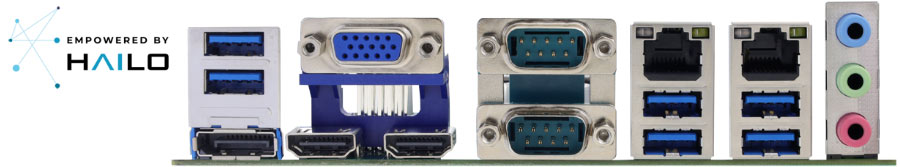

REAR I/O2 x HDMI® connector
1 x DP connector
1 x VGA connector
6 x USB3.2 Gen2 Type A connector
2 x RJ45 connector, support 2.5G
2 x COM port, support RS232/422/485
3 x audio port, support MIC-in, LINE-in, LINE-out
INTERNAL I/OExpansion slots:
1 x M.2 M key
1 x M.2 B key w/SIM slot
1 x M.2 E key
2 x PCIe4.0 x16 slot (x16 + Non or x8 + x8)
3 x PCIe4.0 x4 slot (PEX4_3 share IO w/ SATA1~4)
2 x PCI slot
SATA:
8 x SATA3 7pin connector (SATA1~4 share IO w/ PEX4_3)
Audio:
1 x 2*5 pin header for MIC-in, LINE-out
1 x 1*4 pin box header for 4 ohm 2W amplifier speaker
USB:
2 x 2*5 pin header, support 4 x USB2.0
1 x 2*5 pin header, support 2 x USB2.0 + 1 x USB2.0 Type A onboard(opt)
1 x 2*10 pin box header, support 2 x USB3.2 Gen1
Power:
1 x 2*4 pin CPU power connector
1 x 2*12 pin ATX power connector
Serial Port:
4 x 2*5 pin RS232 box header
4 x 2*3 pin COM power select header (RI/5V/12V, default is RI)
Others:
1 x buzzer
1 x 2*13 pin printer/ 16-bit DIO box header (function select by BIOS)
1 x 2*2 pin header for printer/ DIO function select( PU-open drain/ PD-low, default is PU-open drain, printer must set to PU-open drain)
1 x 1*3 pin DIO power select header(3.3V/5V, default is 3.3V)
1 x 1*4 pin CPU Fan header
1 x 1*4 pin System Fan header
2 x 1*3 pin System Fan header
1 x 1*3 pin clear CMOS
1 x 2*5 pin front panel header
1 x 1*5 pin SMBUS box header
1 x 1*3 pin AT/ATX mode select header (default is ATX)
TPM2.0 onboard
DIMENSIONATX 305 x 244 x1.6mm ( W x L )
ENVIRONMENT0ºC ~ 60ºC Humidity : 5% ~ 90%
OS SUPPORTSupport Windows 10 IoT Enterprise 21H2
Windows 11 IoT Enterprise 24H2
Windows 10/11 21H2 or later version
Support Ubuntu 22.04
