AS-IMB-A1700
ATX Motherboard supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors with B650 Chipset
- AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors with B650 Chipset
- 4 x 288-pin ECC/non-ECC U-DIMM DDR5 5600 MHz, up to 256GB (64GB per DIMM)
- 1 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 1 x PCIe x4 (Gen4), 4 x PCIe x1 (Gen4), 7 x USB 3.2 Gen2, 8 x USB 2.0, 1 x M.2 Key M, 6 x COM, 4 x SATA3
- 1 x Intel® 1 Gigabit LAN, 1 x Intel® 2.5 Gigabit LAN, 2 x Realtek® 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.0b, 2 x DP 1.2++ (1 from Type-C header)
- TPM 2.0 onboard IC
- Supports RAID 0/1/10
- ATX PWR
Datasheet
| Processor System | |
| CPU | AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Desktop Processors*, up to 170W |
| Chipset | AMD B650 |
| Socket | AM5 |
| BIOS | AMI SPI 256 Mbit |
| Form Factor | |
| Dimensions | ATX (12-in x 9.6-in x 1.81-in, 30.5 cm x 24.4 cm x 4.61 cm) |
| Memory | |
| Technology | Dual Channel ECC/non-ECC DDR5 5600 MHz *ECC support may vary by CPU |
| Capacity | 256 GB (64 GB per DIMM) |
| Socket | 4 x 288-pin Long-DIMM |
| Graphics | |
| Controller | AMD RDNA™ 2 Architecture |
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.2, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Quad Display (Included 1 output from Type-C) |
| Expansion Slot | |
| PCIe | 2 x PCIe Gen5 Slots (PCIE1/PCIE4: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4)) (PCIE1: Support Riser card x8/x8) 1 x PCIe x4 (Gen4) 4 x PCIe x1 (Gen4) |
| Audio | |
| Interface | Realtek® ALC897, High Definition Audio. Line-out, Mic-in, Line-in |
| Ethernet | |
| Controller/ Speed | LAN1: Intel® I210AT with 10/100/1000 Mbps LAN2: Intel® I226V with 10/100/1000/2500 Mbps LAN3: Realtek® RTL8125BG with 10/100/1000/2500 Mbps LAN4: Realtek® RTL8125BG with 10/100/1000/2500 Mbps |
| Connector | 4 x RJ-45 |

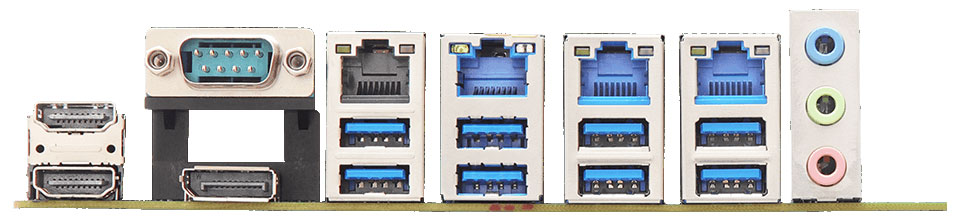

| Rear I/O | |
| HDMI | 2 x HDMI 2.0b |
| COM | COM1 (RS-232/422/485) |
| DisplayPort | 1 x DP 1.2++ |
| Ethernet | 1 x 1 Gigabit LAN 3 x 2.5 Gigabit LAN |
| USB | 7 x USB 3.2 Gen2 1 x USB 2.0 |
| Audio | 3 (Mic-in, Line-in, Line-out) |
| Internal Connector | |
| USB | 1 x USB 2.0 (Type-A vertical con) 6 x USB 2.0 (3 x USB 2.0 header) 1 x USB 3.2 Gen2 (Type-C header, 5V/3A, supports DP 1.2 display output) |
| COM | COM2 (RS-232/422/485) COM3, COM4, COM5, COM6 (RS-232) |
| Security | |
| TPM | TPM 2.0 onboard IC |
| Storage | |
| M.2 | 1 x M.2 (Key M, 3042/2280/25110 ) with PCIe Gen4 x4 and USB 2.0 for SSD |
| SATA | 4 x SATA3 (6Gb/s) |
| RAID | Support RAID 0/1/10 |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| Input PWR | ATX PWR (24+8-pin) |
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | -20ºC ~ 60ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Accessories | |
| Gift Package | 2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G02P141000AK) 1 x SCREW M3*2.5 (13G02P072010AK) |
| Bulk Package | 1 x I/O Shield (13G02P141000AK) 4 x SCREW M3*2.5 (13G02P072010AK) |
