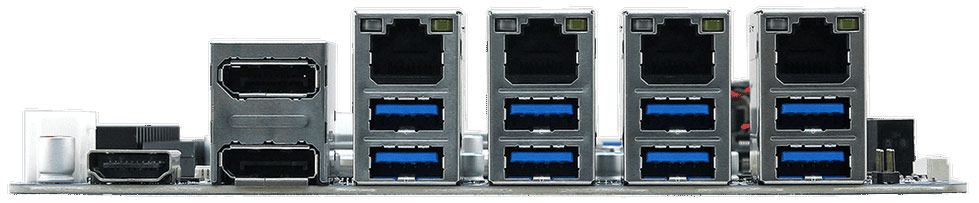

A-EMX-R680P
Intel® 12th/13th Gen Core™ i9/i7/i5/i3/Pentium Processor Mini ITX Motherboard
- Intel® 12th/13th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor, Support LGA 1700 CPU Up to 35/65/125W Max
- Intel® R680E Chipset
- 2 x SODIMM up to 64GB Dual Channel DDR5 4800MHz
- 4 x Intel® i226-LM 2.5 Gigabit Controller
- Realtek ALC888S with Stereo Class D 2W4Ω x 2
- 2 x DP++, 1 x HDMI 2.1b (LSPCON support): 8K@60Hz
- 1 x 2CH LVDS or eDP
- 2 x SATA III
- 4 x USB 3.2 Gen 2 & 4x USB 3.2 Gen 1 in I/O, 2 x USB 3.2 Gen 1, 2 x USB 2.0 via headers
- 1 x PCIe x 16 Gen 5
- 1 x M.2 (2230) E-Key, supports Wi-Fi module with PCIe x 2 Gen 4 & USB 2.0
- 2 x M.2 (2242/2280) M-Key, supports PCI-e x 4 Gen 4 SSD
- 2 x RS232/422/485, 3 x RS232
- 16-bits GPIO, support RAID 0, 1 ATX Power
Datasheet
Product Specification
| System Information | |
| Processor | Intel® 12th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor |
| Platform Controller Hub | Intel® R680E Chipset |
| System Memory | 2 x SO-DIMM Up to 64GB Dual Channel DDR5 4800MHz |
| I/O Chipset | NuvoTon NCT6126D Ver.B (eSPI super IO) |
| BIOS Information | AMI uEFI BIOS, 256Mbit SPI Flash ROM |
| Watchdog Timer | H/W Reset, 5~255 seconds/5~255 minutes |
| H/W Status Monitor | CPU temperature monitoringt, Voltage monitoringt, CPU fan speed controlt |
| Board | Mini ITX Board |
| Expansion | |
| Expansion | 1 x PCIe x 16 Gen 5 1 x M.2 (2230) E-Key, support Wi-Fi module with PCIe x 2 Gen 4 & USB 2.0 2 x M.2 (2242/2280) M-Key, support PCI-e x 4 Gen 4 SSD |
| I/O | |
| USB Port | 4 x USB 3.2 Gen 2 & 4 x USB 3.2 Gen 1 2 x USB 3.2 Gen 1 by pin header 2 x USB 2.0 by pin header |
| COM Port | 2 x RS232/422/485 by BIOS selection at I/O (COM1~2) 3 x RS232(COM3-5) without DB9 (pin9 without Power) |
| SATA | 2 x SATA III |
| DIO | 1 x 16-bit GPIO |
| Display | |
| Graphic Chipset | Intel® 12th Generation CPU Integrated |
| Spec. & Resolution | 2 x DP++: 4096 x 2304@60Hz / 5120 x 3200@60Hz 1 x HDMI 2.1b (supported with LSPCON): 8K@60Hz 1 x LVDS: 1920 x 1080@60Hz Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) Or 1 x eDP 1920 x 1080@60Hz (2 Lanes) |
| Multiple Display | 4 Independent Displays |
| LVDS | Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) Or 1 x eDP 1920 x 1080@60Hz (2 Lanes) |
| Ethernet | |
| LAN Chipset | 4 x Intel® i226LM 2.5 Gigabit Controller |
| LAN Port | 4 x 2.5 Gigabit Ethernet |
| Mechanical & Environmental | |
| Operating Temperature | 0~55°C (32~131°F) |
| Storage Temperature | -40 ~ 75°C |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Weight | 0.44 kg TBC |
| Power Requirement | +12V / +5V / 5VSB /+3.3V /-12V |
| ACPI | Single power ATX Support S0, S3, S4, S5 |
| Power Mode | AT / ATX mode Switchable Through Jumper |
| Dimension (L x W) | 6.7" x 6.7" (170mm x 170mm) |
