AD-ASMB-789
LGA 1851 Intel® Core™ Ultra 9/7/5 ATX Server Board with 4 x DDR5, 5 x PCIe (1 x Gen 5, 3 x Gen 4, 1x Gen 3), 7 x USB 3.2, 4 x SATA3, Quad/Dual LANs
- LGA 1851 Intel® Core™ Ultra 9/7/5 processors with W880 chipset
- DDR5 ECC/Non-ECC 5600/4800/4400/MT/s UDIMM up to 192 GB
- one PCIe x 16 (Gen5), one PCIe x 8 (Gen5) and five PCIe x 4 slots
- Triple displays - DP, VGA, and HDMI 2.0 ports
- Four SATA 3 ports and seven USB 3.2 ports
- One M.2 2280 (PCIe x4)
- Rackmount optimized placement with positive air flow design
- 0 ~ 60 °C (32 ~ 140 °F) ambient operating temperature range
Datasheet
| Model | ASMB-789G2-00A1 | ASMB-789G4-00A1 | ASMB-789G4-00A1U |
|---|---|---|---|
| Processor System | |||
| CPU | Intel® Core™ Ultra Processors | Intel® Core™ Ultra Processors | Intel® Core™ Ultra Processors |
| Socket Q'ty | 1 x LGA1851 | 1 x LGA1851 | 1 x LGA1851 |
| TDP | Up to 125 W | Up to 125 W | Up to 125 W |
| Chipset | Intel® W880 | Intel® W880 | Intel® W880 |
| Memory | |||
| Type and Speed | DDR5 5600 MHz UDIMM | DDR5 5600 MHz UDIMM | DDR5 5600 MHz UDIMM |
| Channel | 2 | 2 | 2 |
| Slots | 4 x 288-pin UDIMM | 4 x 288-pin UDIMM | 4 x 288-pin UDIMM |
| Per Slot Max Capacity | 48 GB | 48 GB | 48 GB |
| System Max Capacity | 192 GB | 192 GB | 192 GB |
| Expansion | |||
| PCIe/PCI Module | 1 x PCIe 5.0 x16, 1 x PCIe 5.0 x 8, 4 x PCIe 4.0 x4, 1 x PCIe 4.0 x2 | 1 x PCIe 5.0 x16, 1 x PCIe 5.0 x 8, 4 x PCIe 4.0 x4, 1 x PCIe 4.0 x2 | 1 x PCIe 5.0 x16, 1 x PCIe 5.0 x 8, 4 x PCIe 4.0 x4, 1 x PCIe 4.0 x2 |
| Internal Storage | |||
| M.2 | 1 (PCIe 4.0 x4, NVMe) | 2 (PCIe 4.0 x4, NVMe) | 2 (PCIe 4.0 x4, NVMe) |
| Front Panel & I/O | |||
| USB | 2 x USB 3.2 Gen1 (one onboard header), 4 x USB 2.0 (2 onboard headers), 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A, 1 x USB 3.2 Gen2 Type E | 2 x USB 3.2 Gen1 (one onboard header), 4 x USB 2.0 (2 onboard headers), 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A, 1 x USB 3.2 Gen2 Type E | 2 x USB 3.2 Gen1 (one onboard header), 4 x USB 2.0 (2 onboard headers), 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A, 1 x USB 3.2 Gen2 Type E |
| Rear I/O | |||
| Display | 1 x VGA port, 1 x DVI port, 1 x HDMI port | 1 x VGA port, 1 x DVI port, 1 x HDMI port | 1 x VGA port, 1 x DVI port, 1 x HDMI port |
| USB | 4 x USB 3.2 Gen1 | 4 x USB 3.2 Gen1 | 4 x USB 3.2 Gen1 |
| LAN | |||
| Controller | Intel® I210, Intel® I219, Intel® I226 | Intel® I210, Intel® I219, Intel® I226 | Intel® I210, Intel® I219 |
| 1GbE | 2 | 4 | 4 |
| Security | |||
| TPM | TPM 2.0 optional module card | TPM 2.0 optional module card | TPM 2.0 optional module card |
| Storage | |||
| SATA Port | 4 | 4 | 4 |
| Cooling | |||
| System Fan | 4 x system, 1 x CPU | 4 x system, 1 x CPU | 4 x system, 1 x CPU |
| System Management | |||
| Controller | Aspeed AST2600 | Aspeed AST2600 | Aspeed AST2600 |
| IPMI | Advantech remote monitoring utility | Advantech remote monitoring utility | Advantech remote monitoring utility |
| Watchdog Timer | |||
| Output | System Reset | System Reset | System Reset |
| Environment | |||
| Operating Temperature | 0 ~ 60 °C (32 ~ 140 °F) | 0 ~ 60 °C (32 ~ 140 °F) | 0 ~ 60 °C (32 ~ 140 °F) |
| Non-Operating Temperature | -40 ~ 85 °C (-40 ~ 185 °F) | -40 ~ 85 °C (-40 ~ 185 °F) | -40 ~ 85 °C (-40 ~ 185 °F) |
| Operating Humidity | 10 ~ 95% | 10 ~ 95% | 10 ~ 95% |
| Non-Operating Humidity | 10 ~ 95%, non-condensing | 10 ~ 95%, non-condensing | 10 ~ 95%, non-condensing |
| Physical Characteristics | |||
| Form Factor | ATX | ATX | ATX |
| Dimensions (L x H) | 305 x 244 mm (12" x 9.6") | 305 x 244 mm (12" x 9.6") | 305 x 244 mm (12" x 9.6") |
| Certification | |||
| EMC | CE/FCC | CE/FCC | CE/FCC |

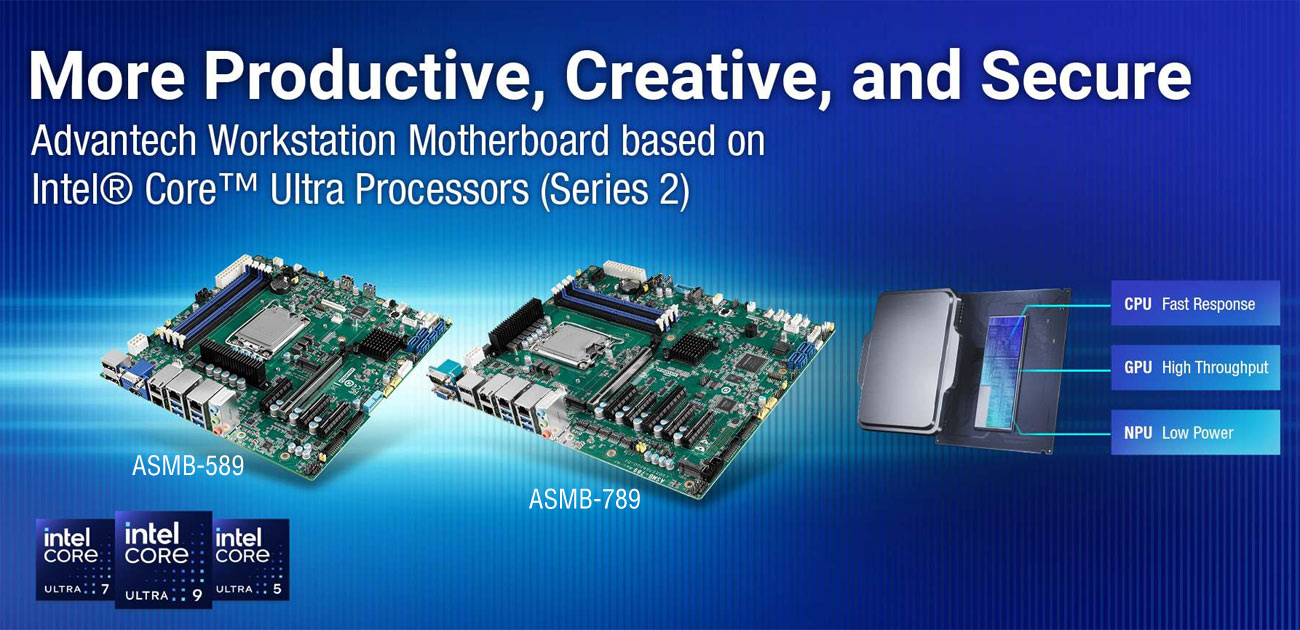

Next-Gen Workstation Server Boards: ASMB-789
Powered by the latest Intel® Core™ Ultra processors (Series 2), ASMB-789 was designed to meet the growing demands of high-performance computing, AI, and edge applications across various industrial sectors. The new boards feature the LGA 1851 socket with the Intel® W880 chipset, delivering superior performance for data-intensive workloads.
The ASMB-789 supports DDR5 ECC/Non-ECC memory up to 192 GB, ensuring stability and reliability for mission-critical applications.
Flexibility for Edge and Embedded Systems
The ASMB-789 (ATX) is designed to provide robust solutions for diverse industrial environments.
Simplified Thermal Architecture
With the reverse airflow design, these boards simplify thermal management, allowing for shared cooling modules and improved thermal efficiency and performance in rackmount configurations.
ASMB-789 ATX Server Board
A full-featured ATX board designed for maximum expandability. It provides extensive connectivity with seven PCIe slots (one PCIe 5.0 x 16, one PCIe 5.0 x 8, and five PCIe x 4), four SATA 3 ports, and seven USB 3.2 ports. The ASMB-789 is perfect for high-end workstations and server applications that demand multiple expansion cards and I/O options.
