AD-ASMB-818
LGA4710 Intel® 6th Gen Xeon® Scalable ATX server board with DDR5, PCIe Gen5, dual 10GbE, and IPMI for next-gen data centers and AI workloads.
- Powered by LGA4710 Intel® 6th Gen Xeon® Scalable processors with TDP support up to 350W for cutting-edge server performance.
- Supports DDR5 6400 MHz RDIMM up to 2TB (8 DIMMs), also supports MCRDIMM for maximum bandwidth.
- Features flexible PCIe Gen5 expansion with three x16 slots plus one x8 slot, or two x16 slots plus three x8 slots.
- Equipped with Intel® X710 dual 10GbE ports for high-speed network connectivity and redundancy.
- Provides five SATA 3 ports and one M.2 connector (PCIe x4) for versatile and fast storage configurations.
- Operates reliably in demanding environments with a wide ambient temperature range of 0 ~ 60°C (32 ~ 140°F).
- Features onboard IPMI 2.0 with Redfish support for comprehensive and secure remote server management.
- Designed for next-generation data centers with advanced thermal management and power delivery systems.
Datasheet

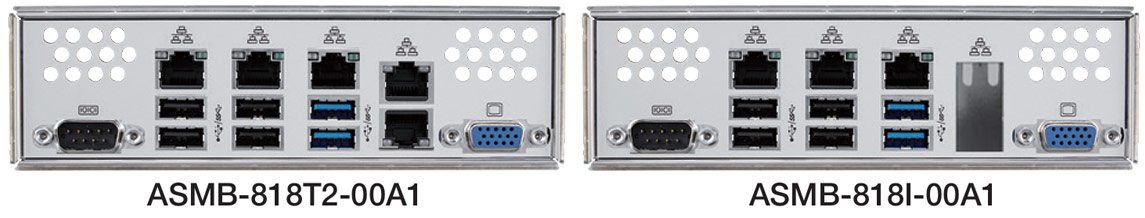

| Model | ASMB-818I-00A1 | ASMB-818T2-00A1 |
|---|---|---|
| CPU | Intel® Xeon® 6 Processors | Intel® Xeon® 6 Processors |
| Socket Q'ty | 1 x LGA4710 | 1 x LGA4710 |
| TDP | Up to 350 W | Up to 350 W |
| Type and Speed | DDR5 6400 MHz RDIMM | DDR5 6400 MHz RDIMM |
| Channel | 8 | 8 |
| System Max Capacity | 2 TB | 2 TB |
| PCIe/PCI Module | 2 x PCIe 5.0 x4, 2 x PCIe 5.0 x8, 3 x PCIe 5.0 x16 | 2 x PCIe 5.0 x4, 2 x PCIe 5.0 x8, 3 x PCIe 5.0 x16 |
| 1 (PCIe 5.0) | 1 (PCIe 5.0) | |
| Display | 1 x VGA port | 1 x VGA port |
| USB | 2 x USB 3.0, 4 x USB 2.0 | 2 x USB 3.0, 4 x USB 2.0 |
| Controller | Intel® I226 | Intel® I226, Intel® X710 |
| 2.5GbE | 2 | 2 |
| 10GbE | - | 2 |
| TPM | TPM 2.0 onboard | TPM 2.0 optional module card |
| SATA Port | 4 x (via SlimSAS), 1 x SATA3 < | 4 x (via Mini-SAS HD SFF-8643), 1 x SATA3 |
| System Fan | 6 x system, 1 x CPU | 6 x system, 1 x CPU |
| Controller | Aspeed AST2600 | Aspeed AST2600 |
| IPMI | Advantech remote monitoring utility | Advantech remote monitoring utility |
| Output | System Reset | System Reset |
| Operating-Temperature | 0 ~ 60 °C (32 ~ 140 °F) | 0 ~ 60 °C (32 ~ 140 °F) |
| Non-Operating Temperature | -40 ~ 85 °C (-40 ~ 185 °F) | -40 ~ 85 °C (-40 ~ 185 °F) |
| Operating Humidity | 10 ~ 95% | 10 ~ 95% |
| Non-Operating Humidity | 10 ~ 95%, non-condensing | 10 ~ 95%, non-condensing |
| Form Factor | ATX | ATX |
| Dimensions (L x H) | 305 x 244 mm (12" x 9.6") | 305 x 244 mm (12" x 9.6") |
| EMC | CE/FCC | CE/FCC |
