A-HPM-GNRUA
Single Intel®Xeon® 6 Processor ATX Server Board and IPMI2.0. Processor supports up to 350W TDP
- Intel LGA4710 Socket supports Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W)
- 8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM up to 2TB
- TPM 2.0 onboard
- IPMI 2.0 with AST 2600 BMC controller onboard.
- 1 x Intel I210AT 1GbE controller
- 1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports
- 5 x SATA III(1 x MiniSAS HD 4i (for 4x SATA Only) & 1 x 7 pin SATA connector)
- 1 x RS232 port
- 2 x USB 3.2 Gen1 ports at Edge I/O
- 2 x M.2 M-Key slots PCIe 5.0 x4 NVMe SSD 2260/2280/22110 form factor
| System Information | |
| Processor | Intel LGA4710 Socket supports Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W ) |
| System Memory | 8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 2TB |
| Watchdog Timer | System reset event 0 ~ 6553 seconds |
| BIOS | AMI UEFI BIOS |
| H/W Status Monitor | CPU temperature Fan speed and voltage monitoring Fan speed control Case open detection |
| TPM | TPM 2.0 onboard |
| IPMI | IPMI 2.0 with AST 2600 BMC controller onboard |

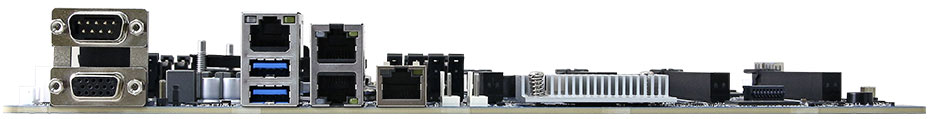

| Rear I/O | |
| USB | 2 x USB 3.2 Gen1 ports |
| COM Port | 1 x RS232 port |
| RJ-45 | 4 x RJ45 MGMT port for dedicated IPMI access only LAN1 port for 1GbE shared with IPMI access LAN2 and 3 ports for 10GbE |
| VGA | 1 x VGA port |
| Display | |
| Graphic Chipset | AST2600 BMC controller |
| Resolution | 1 x VGA port VGA: 1920 x 1200 @ 60Hz 32bpp |
| Expansion | |
| Expansion | 4 x PCIe Gen5 x16 slots Slot 1, PCIe Gen5 x16 Slot 2, NA Slot 3, PCIe Gen5 x16 Slot 4, NA Slot 5, PCIe Gen5 x16 Slot 6, NA Slot 7, PCIe Gen5 x16(This Slot is closest to the CPU) |
| Storage | |
| M.2 | 2 x M.2 M-Key slots to support 1 x PCIe 5.0 x4 NVMe SSD from 1st CPU 2260/2280/22110 form factor |
| I/O | |
| USB | 4 x Internal USB 3.2 Gen1 ports |
| SATA | 5 x SATA III (1 x Mini-SAS HD 4i (for 4 xSATA only) & 1 x 7pin SATA connector) |
| Serial | 1 x Internal RS232 port |
| Other | 1 x Slim SAS 4i (SFF-8654) connector |
| CMOS Battery | 1 x Horizontal Socket Type CMOS Battery Holder with CR2450 |
| Ethernet | |
| LAN Chipset | 1 x Intel I210AT 1GbE controller 1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports |
| LAN Port | 4 x RJ45 MGMT port for dedicated IPMI access only LAN1 port for 1GbE shared with IPMI access LAN2 and 3 ports for 10GbE |
| Mechanical & Environmental | |
| Operating Temp. | 0 ~ 55°C (32 ~ 131°F)to support up to 350W TDP CPU 0 ~ 55°C (32 ~ 131°F)to support up to 270W TDP CPU |
| Storage Temp. | -40 °C to 85 °C |
| Operating Humidity | 40°C 95% non-condensing |
| Dimension (L x W) | 12” x9.6” (304.8mm x 243.84mm) , PCB thickness is 2.59mm |
| Software Support | |
| OS | Windows 11 SAC and LTSC Windows Server 2025 Ubuntu Red Hat Enterprise Linux (RHEL) |
Ordering Information
| HPM-GNRUAA-A1R | ATX 1xLGA4710 Intel Xeon6/E610 8xDDR5/4xPCIex16/2x10GbE/1x1GbE/6xUSB3/5xSATA3 |
| HPM-GNRUAL-A1R | ATX 1xLGA4710 Intel Xeon6/ 8xDDR5/4xPCIex16/1x1GbE/6xUSB3/5xSATA3 |
HPM-GNRUA: High-Performance Server Motherboard for AI and Data Center Applications
Designed for Intelligent Infrastructure
Built on a standard ATX form factor, HPM-GNRUA is well-suited for rackmount servers, industrial chassis, and edge data center nodes. It is specifically optimized for AI inference, intelligent factory control, cloud storage management, and 5G MEC platforms. Leveraging the P-Core architecture of Intel® Xeon® 6, the board provides exceptional compute density and multi-threaded processing for latency-sensitive workloads—delivering both stability and flexibility at the edge.
Industry-Leading PCIe Gen5 Expansion for AI and GPU Workloads
HPM-GNRUA features four PCIe Gen5 x16 slots, each with full x16 lane support, offering a total of 64 PCIe Gen5 lanes—a highly scalable foundation for high-bandwidth add-on cards such as AI accelerators, GPUs, high-speed networking, and NVMe storage cards. Two M.2 M-Key (PCIe 5.0 x4) slots further extend storage flexibility with high-performance NVMe SSDs, alongside 1 x Slim SAS 4i and 5 x SATAIII (including Mini-SAS HD) for diverse storage configurations.
High-Bandwidth Memory & Remote System Management
To support AI and data-intensive workloads, the motherboard supports 8 x DDR5 RDIMM or MRDIMM slots (6400/8000 MT/s), with up to 2TB total memory capacity. Integrated IPMI 2.0 remote management allows administrators to monitor hardware status, set alerts, and schedule maintenance remotely, helping reduce downtime and optimize system availability.
High-performance server-grade motherboard, HPM-GNRUA, designed to meet the growing demands of AI, data infrastructure, and high-density edge computing. Supporting the newest Intel® Xeon® 6 processor platform (6500P/6700P) with a TDP of up to 350W, HPM-GNRUA delivers next-level performance, advanced PCIe Gen5 expandability, and robust remote management capabilities—making it the ideal backbone for compute-intensive applications.
