AS-IMB-X1902-10G
EATX Motherboard supports Intel® Xeon® W-3500/3400 and W-2500/2400 Series Processors with W790 chipset
- Intel® Xeon® W-3500/3400 and W-2500/2400 Series Processors with W790 chipset
- 8 x 288-pin ECC RDIMM/RDIMM-3DS DDR5 4400/4800 MHz, up to 2TB
- 4 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 1 x PCIe x4 (Gen4), 1 x USB 3.2 Gen2x2, 5 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 3 x USB
- 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 1 x Mini-SAS, 4 x SATA3
- 2 x Intel 2.5 Gigabit LAN, 1 x Marvell 10 Gigabit LAN
- Supports 1 x VGA
- TPM 2.0 onboard IC
- Support Intel® vPro, VMD RAID 0/1/5/10
- ATX PWR (8+8+24 Pin)
Datasheet
Product Specification
| Processor System | |
| CPU | Intel® Xeon® W-3500/3400 and W-2500/2400 Series Processors |
| Chipset | Intel® W790 |
| Socket | LGA4677 |
| BIOS | AMI SPI 256 Mbit |
| Form Factor | |
| Dimensions | EATX (12-in x 11.7-in x 1.6-in, 30.5 cm x 29.7 cm x 4.0 cm) |
| Memory | |
| Technology | Quad Channel ECC DDR5 4400/4800 MHz* *1DPC 4800 MHz Natively for Xeon® W9, Xeon® W7 and Xeon® W5 2DPC 4400 MHz Natively for Xeon® W9, Xeon® W7 and Xeon® W5 Supports 4400 MHz Natively for Xeon® W3, W5-3423 and W5-3433 |
| Capacity | 2TB |
| Socket | 8 x 288-pin RDIMM/RDIMM-3DS |
| Graphics | |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| Expansion Slot | |
| PCIe | PCIE1: PCIe Gen5 x16 PCIE2: PCIe Gen5 x16 PCIE3/PCIE4: single at Gen5 x16 (PCIE4); dual at Gen5 x8 (PCIE3) / x8 (PCIE4) PCIE5: PCIe Gen4 x4 PCIE6: PCIe Gen5 x16 |
| M.2 | 1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G |
| SIM Socket | 1 x SIM socket connected to M.2 key B |
| Audio | |
| Interface | Realtek ALC897, High Definition Audio. Line-in, Line-out, Mic-in |
| Ethernet | |
| Controller/ Speed | LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I226V with 10/100/1000/2500 Mbps LAN3: Marvell AQC113 with 10/100/1000/2500/5000/10000 Mbps |
| Connector | 3 x RJ-45 |

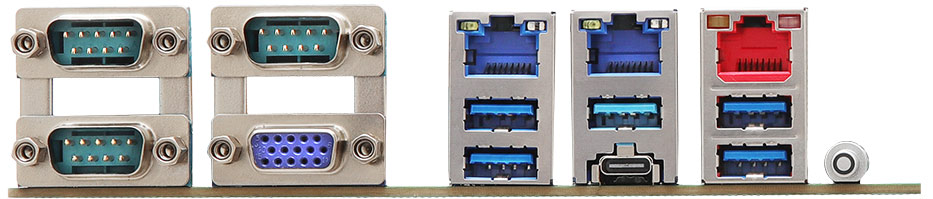

| Rear I/O | |
| VGA | 1 |
| Ethernet | 1 x 10 Gigabit LAN 2 x 2.5 Gigabit LAN |
| USB | 5 x USB 3.2 Gen2 1 x USB 3.2 Gen2x2 (Type-C, 5V/3A) |
| Serial Port | COM3 (RS-232) COM1, COM2 (RS-232/422/485) |
| Internal Connector | |
| USB | 2 x USB 3.2 Gen1 (1 x USB 3.2 header) 2 x USB 2.0 (1 x 2.54 pitch header) 1 x USB 2.0 (vertical con) |
| COM | COM4, COM5, COM6 (RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| Security | |
| TPM | TPM 2.0 onboard IC |
| Storage | |
| M.2 | 1 x M.2 (Key M, 2242/2280/25110) with PCIe Gen4 x4 and SATA3 for SSD 1 x M.2 (Key M, 2260/2280/25110) with PCIe Gen4 x4 for SSD |
| Mini-SAS | 1 x Mini-SAS with PCIe Gen4 x4 |
| SATA | 4 x SATA3, SATA3_4 shared with M.2 Key M1 |
| RAID | Intel® VMD RAID 0/1/5/10 **supported by identical interface (PCIE or SATA) PCIE interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M SATA interface: SATA port |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 segments, 0,1,2…255sec |
| Power Requirements | |
| Input PWR | 1 x 24-pin ATX PWR connector 2 x 8-pin 12V PWR connector 1 x 8-pin and 1 x (6+2)-pin 12V PWR connector for PCIe |
| Power On | AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | -20ºC ~ 70ºC |
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
