AS-IMB-X1904-10G
EATX Motherboard supports Intel® Xeon® 600 Processors with W890 chipset
- Intel® Xeon® 600 Processors with W890 chipset
- 8 x 288-pin ECC RDIMM/RDIMM-3DS DDR5 5200 MHz, up to 2TB
- 6 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 4 x USB 3.2 Gen2, 6 x USB 3.2 Gen1, 3 x USB 2.0, 2 x
- M.2 Key M, 2 x COM, 1 x U.2, 2 x MCIO, 8 x SATA3
- 2 x Intel 10 Gigabit LAN, 2 x Intel 1 Gigabit LAN
- Supports 1 x VGA
- TPM 2.0 onboard IC
- OOB Function (optional)
- Support Intel® vPro, RAID 0/1/5/10
- ATX PWR (8+8+24 Pin)
Datasheet
| Processor System | |
| CPU | Intel® Xeon® 600 Processors |
| Chipset | Intel® W890 |
| Socket | LGA4710 |
| BIOS | AMI SPI 256 Mbit |
| Form Factor | |
| Dimensions | EATX (12-in x 11.7-in x 1.6-in, 30.5 cm x 29.7 cm x 4.0 cm) |
| Memory | |
| Technology | Quad Channel ECC DDR5 5200 MHz |
| Capacity | 2TB |
| Socket | 8 x 288-pin RDIMM/RDIMM-3DS |
| Graphics | |
| VGA | 1 x VGA from Silicon Motion SM750 Max resolution up to 1920 x 1200@60Hz |
| Expansion Slot | |
| PCIe | PCIE7: PCIe Gen5 x16 PCIE6: PCIe Gen5 x16 PCIE5: PCIe Gen5 x16 (supported with Expert SKU) PCIE4: PCIe Gen5 x16 PCIE3: PCIe Gen5 x16 (supported with Expert SKU) PCIE2: PCIe Gen5 x8 PCIE1: PCIe Gen5 x16 |
| MCIO | 2 x MCIO with PCIe Gen5 x8 (supported with Expert SKU) |
| Ethernet | |
| Controller/ Speed | LAN1: Intel® I210AT with 10/100/1000 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, supports vPro LAN3: Intel® E610-XAT2 with 10/100/1000/2500/5000/10000 Mbps LAN4: Intel® E610-XAT2 with 10/100/1000/2500/5000/10000 Mbps |
| Connector | 4 x RJ-45 |

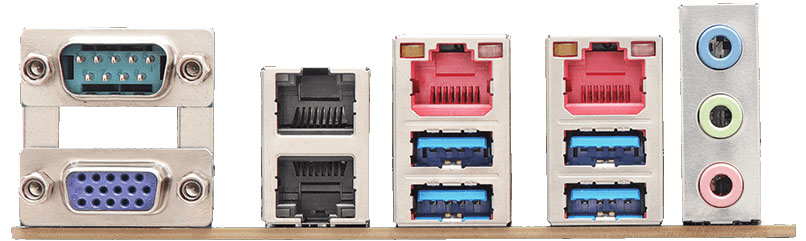

| Rear I/O | |
| VGA | 1 |
| Ethernet | 2 x 10 Gigabit LAN 2 x 1 Gigabit LAN |
| USB | 4 x USB 3.2 Gen2 |
| Serial Port | COM1 (RS-232) |
| Audio | 3 (Line-In/Line-Out/Mic-In) |
| Internal Connector | |
| USB | 2 x USB 3.2 Gen1 (vertical con) 4 x USB 3.2 Gen1 (2 x USB 3.2 header) 3 x USB 2.0 (2 x 2.54 pitch header) |
| COM | COM2 (RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| OOB Header | 1 *Recommend using AI-M2-OOB module to support OOB function |
| Security | |
| TPM | TPM 2.0 onboard IC |
| Storage | |
| M.2 | 1 x M.2 (Key M, 2242/2280/3052/25110) with PCIe Gen5 x4 for SSD 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD |
| U.2 | 1 x U.2 with PCIe Gen4 x4 |
| SATA | 8 x SATA3 |
| RAID | Intel® SATA RAID 0/1/5/10* *VROC Key is required to configure RAID |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 segments, 0,1,2…255sec |
| Power Requirements | |
| Input PWR | 1 x 24-pin ATX PWR connector 2 x 8-pin 12V PWR connector 1 x 8-pin and 1 x (6+2)-pin 12V PWR connector for PCIe |
| Power On | AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | -20ºC ~ 70ºC |
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% (non-condensing) |
| Storage Humidity | 5% ~ 90% (non-condensing) |
