E-1099L

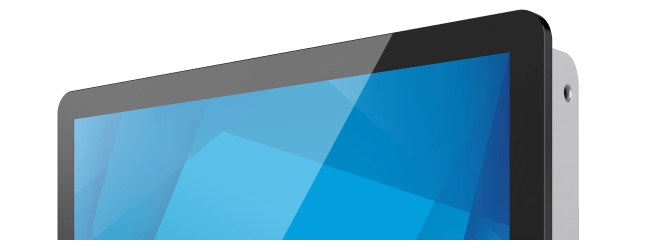

10" Outdoor Open Frame Touchscreen Monitor
- Optimize outdoor performance with the ambient light sensor that automatically adjusts the display’s brightness to save power and extend the life of the panel.
- Mount in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design.
- Built for integration into harsh physical and thermal environments: IK09 impact protection with -20C to 60C operating temperatures.
Datasheet
Product Specification
Ready for industrial & commercial use.
Elo’s 1099L 10-inch outdoor open-frame touchscreen monitor has you covered 24/7 with wide viewing angle technology and 1000 NITs of brightness. The IK09, vandal-proof outdoor display offers direct sunlight readability viewable with polarized sunglasses and extended operating temperatures. From payment and ticketing machines to signage and charging stations, the brilliant, optically bonded weatherproof monitor offers locking connectors and supports 12v-24v DC for easy and secure integration into an enclosure.
The 1099L provides outstanding image clarity and light transmissivity, as well as stable, drift-free operation for accurate touch responses making it well-suited for almost any commercial kiosk application.
Connections
| Part Number | TouchPro PCAP with anti-glare - E354792 |
| Enclosure Color | Black |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) - up to 5 touches |
| Touch Interface | USB 2.0 |
| Diagonal Size | 10.1'' diagonal, Active matrix TFT LCD (LED) |
| On Screen Display | Accessible through switches on the unit’s tethered OSD Control box. Controls: Menu, Up, Down, Select, Power Settings: Brightness, Contrast, Light sensor, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Rotation, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Touch Through, Touch Interface, GPIO Control, Time Setting, On/Off Schedule, Daylight Saving Time Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese, Lockouts: OSD, Power |
| Aspect Ratio | 16:9 |
| Active Area | 8.54" x 5.33" / 216.96 mm x 135.60 mm |
| Resolution | 1280 x 800 |
| Other Supported Resolutions | 640 x 480 60Hz 720 x 400 70Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 800 60Hz |
| Viewing Angle | Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total |
| Number of Colors | 16.7 million |
| Brightness (typical | TouchPro PCAP: 1000 nits |
| Response Time-total (typical | 25 msec |
| Contrast Ratio | 800:1 |
| I/O Ports | Locking for all ports, including USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort |
| Video | HDMI V1.3 Type A receptacle for HDMI input Analog VGA on Female DE-15 (DB-15) connector DisplayPort V1.1a - Supports later versions of DisplayPort video input Input Video Horizontal Sync frequency range: 31.5 – 80K KHz Input Video Vertical Sync (frame rate) frequency range: 60-75Hz |
| Power | External DC - Optional power brick (sold separately) Monitor input power connector: Coaxial power jack (2.5mm (+0.0 -0.1mm) pin outer diameter, 5.7mm (+/- 0.1mm) barrel inner diameter, 7.8mm (+/- 0.2mm) Barrel depth) Monitor input voltage range: 12V to 24V DC +/- 5% Adapter output power connector: DC barrel plug (2.5mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 7.5mm (+/- 0.5mm) Barrel length) Adapter input voltage range: 100-240 VAC Input frequency: 50-60 Hz |
| Power Consumption (Typical | Monitor + adapter ON: 23W SLEEP from PC: 1.5W OFF: 1.5W |
| Dimensions | 10.08" x 6.93" x 1.61" / 256 mm x 176 mm x 41 mm |
| Shipping Box Dimensions | 13.58" x 10.94" x 6.89" / 345 mm x 278 mm x 175 mm |
| Weight (Unpackaged | 4.85 lbs / 2.2 kg |
| Weight (Packaged | 7.28 lbs / 3.3 kg |
| Operating Temperature | -20°C to 60°C / -4°F to 140°F |
| Storage Temperature | -30°C to 80°C / -22°F to 176°F |
| Humidity | Operating: 10% to 90% Storage: 10% to 95% (38.7° maximum wet bulb temperature) |
| Sealability | Sealable to IP66 / NEMA 4x |
| MTBF | 50,000 hours demonstrated |
| Warranty | 2-year |
| Regulatory approvals and declarations | Australia RCM Canada cUL, IC China CCC Europe CE, TUV United Kingdom UKCA Japan VCCI Korea KCC Mexico NoM Taiwan BSMI United States UL, FCC International CB RoHS, China RoHS, WEEE |
| Compliance | GLI 27 kV air / 8 kV contact ESD compliance UL ball-drop compliance IK09 impact compliance |
| Mounting Options | 200x100mm VESA mount on rear of unit 4 Hole mounting interface on all four sides. Flush mount with included brackets |

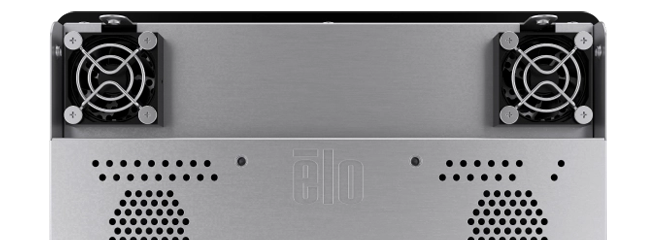

| Other Features | Viewable with polarized sunglasses in portrait and landscape orientations. Ambient light sensor Thermal sensor External fans (Automatically controlled) |
| What's in the Box | 1099L HDMI cable with screw-locked type VGA Cable Remote OSD Touch USB Cable with screw-locked type Quick Install Guide Flush Mount Brackets w/Screws EEI Label |
| Options / Peripherals / Upgrades | Remote OSD (RJ45) - Elo P/N: E483757 Cable Kit DVI-D to HDMI – Elo P/N: E538507 Cable Kit DP to DP – Elo P/N: E582895 Elo 1099L Flush mount Bracket - Elo P/N: E777499 External 80W power brick and cable, LVL6 America – Elo P/N: E596619 External 80W power brick and cable, LVL6 Europe – Elo P/N: E596821 External 80W power brick and cable, LVL6 UK – Elo P/N: E597014 External 80W power brick and cable, LVL6 China – Elo P/N: E597205 External 80W power brick and cable, LVL6 Taiwan – Elo P/N: E597410 External 80W power brick and cable, LVL6 Japan – Elo P/N: E597608 External 80W power brick and cable, LVL6 Argentina – Elo P/N: E597792 External 80W power brick and cable, LVL6 Australia – Elo P/N: E597994 HDMI to HDMI locking cable – Elo P/N: E100212 USB locking cable – Elo P/N: E100418 VGA to VGA locking cable – Elo P/N: E610090 |
