A-FPC-21W42
21.5” 13th Generation Intel® Core™ i3/ i5/ i7 Processors Full-flat Rugged Multi-touch Panel PC With Active Cooling and Expansion Slot
- Onboard Raptor Lake S 13th Intel® Core™ i3/ i5/ i7 Processor
- 2 x 262-pin DDR5 4800 MHz SO-DIMM sockets support up to 64GB

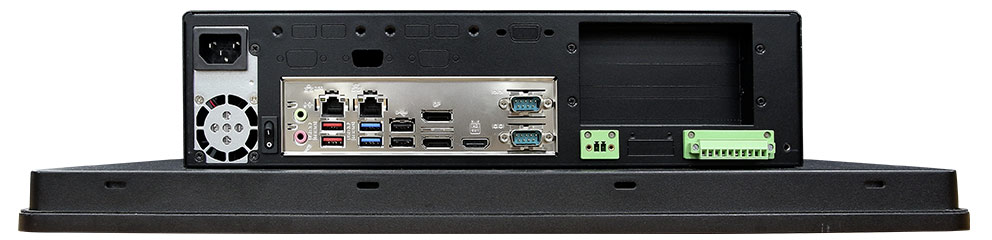

- 1 x HDMI, 2 x DP, 2 x COM, 4 x USB 3.2, 2 x USB 2.0
- 2 x Intel® Gigabit Ethernet (2.5GbE & 1GbE)
- 1 x 2.5” SATA SSD (optional), 1 x 2280 & 2242 M.2 M-Key with PCIe x4 & SATA 3.0 signal (optional)
- 1 x PCIe x16 expansion slot
- 3 x Independent displays supported (Intel Virtualization)
- Wi-Fi & bluetooth (optional)
- Mic-in, line-out
- TPM 2.0
- CPU cooler and system fan design
- PSU 300W power supply
Datasheet
Product Specification
| System Information | |
| Processor | 13th Generation Intel® Core™ i3/ i5/ i7 Processors Intel® Core™ i7-13700TE (35W, 30M Cache, up to 1.10 GHz) Intel® Core™ i5-13500E (65W, 24M Cache, up to 2.40 GHz) Intel® Core™ i3-13100TE (35W, 12M Cache, up to 2.40 GHz) |
| System Memory | 2 x 262-pin DDR5 4800 MHz SO-DIMM sockets support up to 64GB (non ECC only) |
| I/O Chipset | Fintek® F81966AB-I |
| Watchdog Timer | H/W Reset, 5~255 Seconds/5~255 Minutes |
| H/W Status Monitor | CPU Temperature Monitoring Voltage Monitoring CPU Fan Speed Control |
| TPM | TPM 2.0 |
| SBC | MX610H |
| CPU Cooler (Type) | 1 x PWM FAN for CPU |
| Expansion | |
| Expansion | 1 x PCIe x16 Gen4 Slot 1 x M.2 (2230) E-Key support WiFi module, with 1 x PCI-e x1 & USB 2.0 (CNVi Supported) |
| Storage | |
| Solid State Drive | 1 x 2.5” Drive Bay design (optional) |
| Other Storage Device | 1 x 2280 & 2242 M.2 Slot M Key with PCIe x4 & SATA 3.0 signal (optional) |
| Display | |
| Graphic Chipset | Intel® UHD Graphic |
| Spec. & Resolution | 2 x DP: Up to 4096×2304 @60Hz 1 x HDMI: Up to 3840x2160 @30Hz |
| Audio | |
| Audio Codec | Realtek® ALC897 |
| Audio Interface | Mic-in Line-out |
| Speaker Output | 2 x 5W |
| Ethernet | |
| LAN Chipset | 1 x Intel® I219-LM GbE LAN PHY 1 x Intel® I225-V 2.5GbE LAN |
| Power Requirement | |
| Power Supply Unit | PSU Flex ATX 300W, 100-240V~, 5-2.5A, 50-60Hz |
| Power Mode | AT/ATX by jumper (Default Setting: ATX) |
| Power Connector Type | AC Power input 3P (Male) Connector |
| Software Support | |
| OS | Win10 / Win11 / Linux |
| Certification | |
| Certification Information | CE / FCC Class A / VCCI / UKCA |
| Panel | |
| LCD Size | 21.5", 16:9 |
| Display Type | Full HD |
| Resolution | 1920 x 1080 |
| Pixel pitch | 247.95um(H) x 247.95um(V) |
| Luminance | 250 cd/m² |
| Contrast ratio | 1000 |
| Viewing angle | 89 (U), 89 (D), 89 (L), 89 (R) |
| Response time | 14 ms |
| Backlight | LED |
| Touch Type | Projective capacitive multi-touch up to 10 points |
| Touch Light Transmission | 89 % |
| Touch Controller | USB touch (EETI) |
| External I/O | |
| USB Port | 4 x USB 3.2 Gen 1 2 x USB 2.0 |
| Video Port | 2 x DP 1 x HDMI |
| LAN Port | 1 x Intel® I219-LM GbE LAN PHY 1 x Intel® i225-V 2.5GbE LAN |
| COM Port | 2 x RS232(default)/422/485 2 x RS232 (optional) |
| DIO Port | 1x8-bit GPIO (optional) |
| Switch | 1x Extend Power Switch (optional) |
| System Control | |
| LED Indicator | HDD LED, power LED |
| Wireless Communication | |
| WLAN | M.2 keyA/E 802.11ax Dual-band, BT5.2,AX210.NGWGIE.NV, 99ARN4,Intel (optional) |
| Bluetooth | BT5.2 (optional) |
| Mechanical & Environmental | |
| Operating Temp. | 0°C ~ 45°C |
| Storage Temp. | -20°C ~ 60°C (-4°F ~ 140°F) |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 538 x 341 x 122 mm |
| Weight | 12.6 Kg |
| Vibration Test | With SSD/M.2 SSD : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30mins/axis |
| Shock Test | Operating with SSD/M.2 : MIL-STD-810G, method 516.6, procedure I, functional shock=10G |
| Drop Test | ISTA 2A, IEC-60068-2-32 Test:Ed |
| IP Rating | Front IP65 |
| Mounting Kit | Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm Panel mount with mounting kits |
| Power Mode | AT/ATX by jumper (Default Setting: ATX) |
| System Fan | 1 x PWM FAN for System |
| Construction - Front | Aluminum Die-casting |
| Construction - Rear | Metal black |
| Component | |
| Adapter | PSU Flex ATX 300W |
