AD-UTC-320SL
21.5" Ubiquitous Touch Computer with Intel® Core™ 12th–14th Gen Processor
- Fan SKU and Fanless SKU system design
- Socket Type CPU with Intel® Core™ 12th/13th/14th Gen processor
- Multiple power input options (Power Din 4 pins/Terminal Block)
- 21.5" monitor with 16:9 widescreen display
- IP65-rated front panel for water and dust resistance
- VESA 100 mm standard mounting holes for varied mounting demands
- Detachable frame design for panel mount applications
- Support DeviceOn/iService software for remote device management
- Support TPM 2.0
Datasheet
Product Specification
| Model | UTC-320SLP-ATB0E | UTC-320SLP-PTB0E |
| Color | ||
| Color | Black | Black |
| Display | ||
| Size | 21.5" TFT LCD | 21.5" TFT LCD |
| Max. Resolution | FHD (1920 x 1080) | FHD (1920 x 1080) |
| Brightness | 250 cd/m² | 250 cd/m² |
| Touch Screen | ||
| Type | Projected Capacitive | Projected Capacitive |
| Process System | ||
| CPU | Intel® Core™ i5-14400T | Intel® Core™ i5-14400T |
| Processor System | ||
| OS | N/A | N/A |
| Storage | N/A | N/A |
| TPM | TPM 2.0 | TPM 2.0 |
| Speaker | 2 x 2W Speaker | 2 x 2W Speaker |

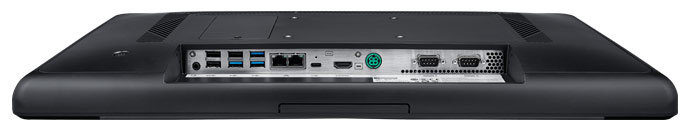

| I/O Interface | ||
| USB Port | USB: 3 x USB 2.0 / 3x USB 3.2 | USB: 3 x USB 2.0 / 3x USB 3.2 |
| Serial Port | 2 x RS-232/422/485 | 2 x RS-232/422/485 |
| Ethernet | 2 x Gigabit Ethernet (RJ-45) | 2 x Gigabit Ethernet (RJ-45) |
| Audio | 1 x Audio Phone Jack | 1 x Audio Phone Jack |
| Extendable Slot | 1 x M.2 2230 E-Key for Wi-Fi & BT combo 1 x M.2 M-Key 2280 for SSD | 1 x M.2 2230 E-Key for Wi-Fi & BT combo 1 x M.2 M-Key 2280 for SSD |
| Cooling Solution | ||
| Cooling Solution | Fan | Fanless |
| Power | ||
| Input Rating | 12~24V, 7.5 A (180W ITE Adaptor) | 12~24V, 7.5 A (180W ITE Adaptor) |
| Environment | ||
| Operating Temperature | 0 ~ 40 °C (32 ~ 104 °F) | 0 ~ 40 °C (32 ~ 104 °F) |
| Operating Humidity | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing |
| Vibration | 0.5G | 0.5G |
| System Protection | IP65 front panel | IP65 front panel |
| Certification | FCC, CE, CCC, BSMI, UL, CB | FCC, CE, CCC, BSMI, UL, CB |
| Peripheral | ||
| WWAN | N/A | N/A |
| Bluetooth | N/A | N/A |
UTC-320SL All-in-One Touch Computer for Outstanding Kiosk Integration
Designed for high versatility, serviceability, and performance scalability, the UTC-320SL features an enhanced mechanical structure, socket-type Intel® 14th Gen Core™ processors, and advanced system integration options, making it ideal for applications in smart retail, interactive kiosks, industrial HMI, and self-service terminals.
- Enhanced Design for Seamless Kiosk Installation and Maintenance
- Socket-Type CPU with Scalable Performance and Cost Optimization
- Thermal Flexibility for Demanding Environments
- Ready for Versatile Deployment Across Industries
