AD-SPC-515
15" XGA TFT LED LCD Industrial Multi-Touch Panel PC with Stainless Steel Housing and IP69K Rating

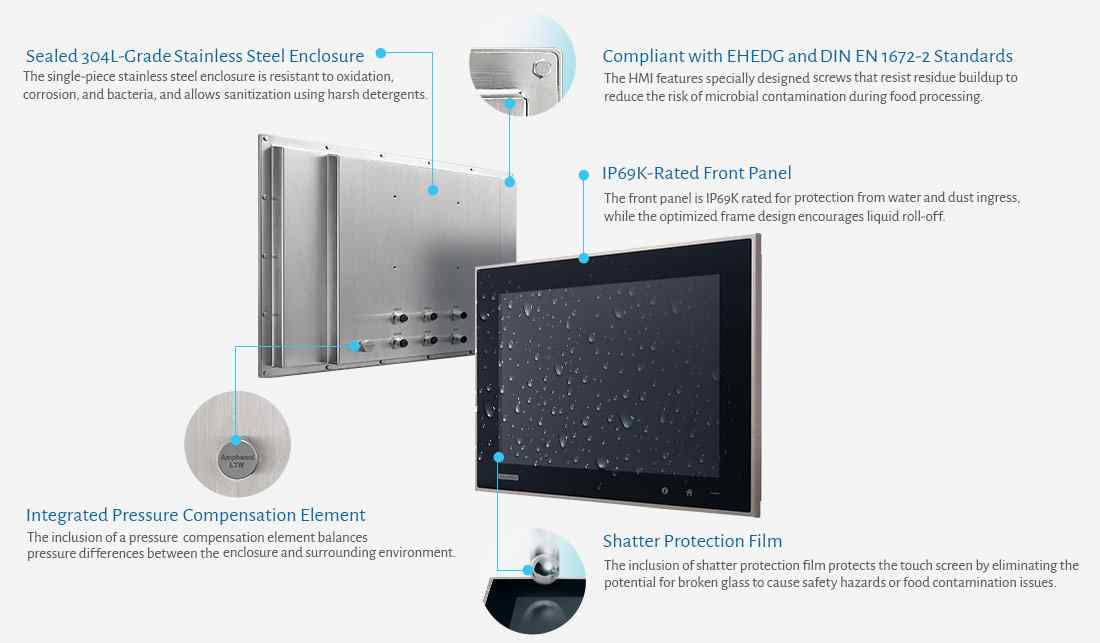

- All-around IP69K rating protects against dust and water
- 304L stainless steel housing
- 6th generation Intel® Core™ i3/i5/i7 processor
- Touchscreen equipped with shatter protection film
- PCAP multi-touch control
- Built-in function and home keys for intuitive operation
- Fanless cooling system
- Airflow valve design reduces condensation caused by temperature changes
Datasheet
Product Specification
| Model | SPC-515-633AE |
| Environment | |
| Ingress Protection | All-around IP69K |
| Operating Temperature | 0~50 °C (32~122 °F) |
| Relative Humidity | 10~95% RH (non-condensing) |
| Storage Temperature | -20~60 °C (-4~140 °F) |
| Vibration Protection | 1 Grms, random |
| General | |
| Humidity (Operating) | 10~95% RH (non-condensing) |
| Humidity (Storage) | 10~95% RH (non-condensing) |
| Rated Voltage | 24 VDC (±10%) |
| Hardware | |
| BIOS | AMI UEFI |
| Certification | CB, UL, CE, FCC Class A, CCC, BSMI |
| CPU | Intel® CoreTM i3-6100U 2.3GHz Skylake Dual Core, 3MB L2 |
| Hardware Security | Optional |
| I/O | 1 x RS-232, 2 x USB 2.0 |
| LAN | 2 x 10/100/1000 Mbps |
| Memory | 2 x SO-DIMM with 8GB DDR3L |
| OS Support | Microsoft® Windows 10 LTSC |
| Power Consumption | 60 W @ 24 VDC |
| Power Input | 24 VDC ±10% |
| Power Requirement | 24 VDC ±10% |
| I/O Interface | |
| Expansion | Optional |
| LAN Ports | 2 x 10/100/1000 Mbps |
| Power Connector | 1 x M-12 A-coded 5 pin male |
| Serial Ports | 1 x RS-232 |
| USB Ports | 2 x USB 2.0 |
| LCD Display | |
| Backlight Life (hrs) | 70,000 |
| Display Size | 15" |
| Luminance (cd/m2) | 300 |
| Max. Resolution | 1024 x 768 |
| Viewing Angle (H/V°) | 176/176 |
| Mechanical | |
| Dimension (W x H x D) | 389.6 x 313.7 x 56 mm |
| Enclosure | Stainless steel |
| Form Factor | Passive Cooling |
| Mounting | VESA |
| Weight (Net) | 10 kg (22.04 lb) |
| Power Requirements | |
| Input Voltage | 21~27 VDC |
| Touchscreen | |
| Touch Type | PCAP |
