P-SIO-W321-ADL
21.5" Stainless Steel Panel PC with Intel® N97 Processor, 3x LAN, 2x COM, 2x USB
- 21.5" (16:9) FHD LCD Capacitive Touch
- 1x DDR5 4800MT/s SODIMM
- 1x M.2 B Key, 1x M.2 E Key
- 3x 2.5GbE LAN, 2x USB, 2x COM
- Support 110V to 240V AC power input
- Fanless Operation from -10°C to 50°C
- Full system IP66/IP69K with Stainless Steel SUS316 construction
- Scratch Resistant 7H Glass Hardness
- Optical Bonding for ultimate clarity
- Pressure Valve SUS316L VENT
- CE, FCC Class A
| Display | |
| IP Rating | IP66/IP69K |
| LCD Size | 21.5" (16:9) |
| Max. Resolution | 1920 x 1080 (FHD) |
| Brightness (cd/m²) | 400 nits |
| Contrast Ratio | 1000:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.248 (H) x 0.248 (V) |
| Viewing Angle | 89 /89 /89 /89 (Typ.) (CR>=10) |
| Backlight MTBF | 50,000 hrs (LED Backlight) |
| Touch | |
| Projected Capacitive Touch | Surface Hardness: 7H / IK07 Multi-touch: Default 2 point (Support Glove Mode) Anti-noise: CS 10V rms |
| Resistive Touch (Option) | Surface Hardness: 3H Touch Point: single Touch IP Rating: IP65 |
| System | |
| Processor | Intel® Processor N97 6M Cache, up to 3.60 GHz 4 core 12W |
| System Chipset | SoC Integrated |
| LAN Chipset | GbE1: Intel i226V 2.5GbE LAN PXE Support GbE2: Intel i226V 2.5GbE LAN PXE Support GbE3: Intel i226V 2.5GbE LAN PXE Support |
| Audio Codec | Realtek ALC897 |
| System Memory | 1x DDR5 SO-DIMM (262-Pin) 4800 MT/s up to 16GB Non-ECC |
| BIOS | AMI uEFI 256MB SPI flash |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| Storage | |
| SSD/HDD | 1x M.2 B key 2242/3042 NVMe/SATA SSD (optional 4G/5G) |
| SATA | 1x 2.5" SATA SSD (optional) |
| Expansion | |
| Network Modules | M.2 E Key for Wi-Fi 6E (Optional) |
| I/O | |
| COM | COM1: 1x RS232/422/485 by M12 A-Code 8-pin (Default RS232) COM2: 1x RS232 by M12 A-Code 8-pin |
| LAN | 3x LAN by M12 X-Code 8-pin |
| USB | 1x M12 A-code by 2x USB 2.0 (8-pin) |
| Others | 4x Antenna (Optional) Power On/Off SUS 316 Vent |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Ubuntu 22.04 / 24.04 LTS |
| Power | |
| Power Mode | AT / ATX (default) |
| Power Supply Voltage | 110 ~ 240V AC Input |
| Power Connector | M12 S-code 4-pin |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 10% ~ 80% (non-condensing) |
| IP Level | Full System IP66/IP69K |
| Certification | CE,FCC Class A |
| Vibration | With SSD: 3 Grms (5 - 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 20G half-sin 11ms |
| Physical | |
| Dimension | 588.5 (W) x 380 (H) x 52.8 (D) mm |
| Weights | 10 kg |
| Construction | Stainless Steel SUS316 with Optical bonding |
| Mounting Options | VESA Mounting Holes 100 x 100 mm or 200 x 100 mm Optional Yoke Mount |

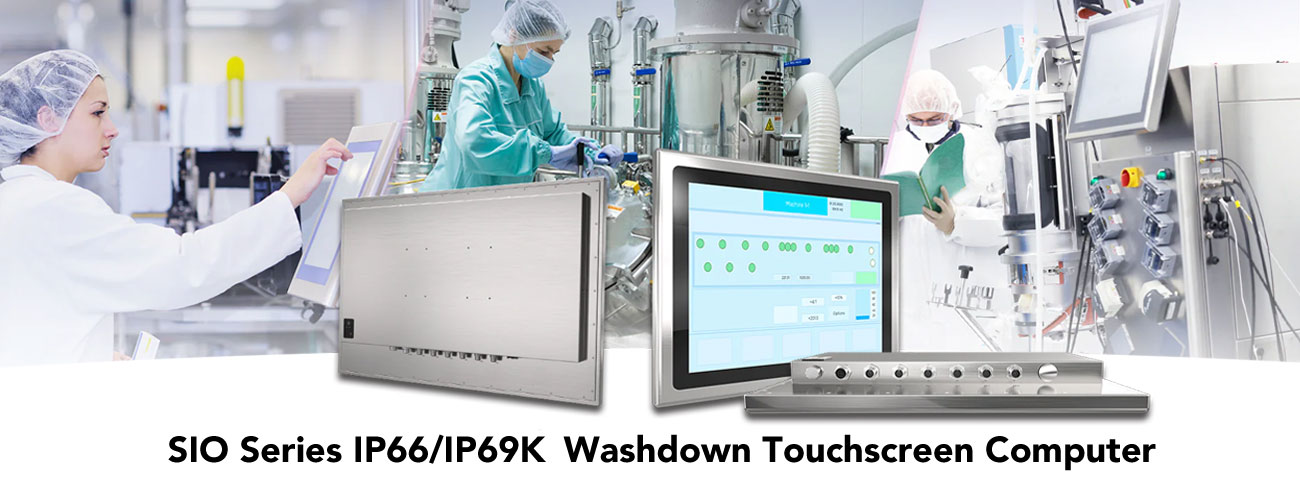

SIO Series IP66/IP69K Washdown Touchscreen Computer
The SIO Series unifies advanced compute capabilities, I/O expandability and interactive display for dynamic industrial deployments. The stainless steel SIO Series are designed fanless, strong and tightly sealed to sustain punishing temperatures, harsh impacts, caustic contact and intense equipment washdowns.
- Rigid, corrosive resistant stainless-steel enclosure
- IP66/IP69K rated resilience against water and dust penetration
- Impenetrable, locking M12 I/O connectors
- 7H hardness glass resists scratches and damage
- Optical bonding standard upholds clarity in humid areas for longevity
Intel® N97 Processor
Key Features
- Intel® Processor N97 (Alder Lake-N)
- Four efficiency cores with up to 3.60 GHz boost frequency
- Low-power design optimized for fanless operation
- DDR5 memory support for improved performance and scalability

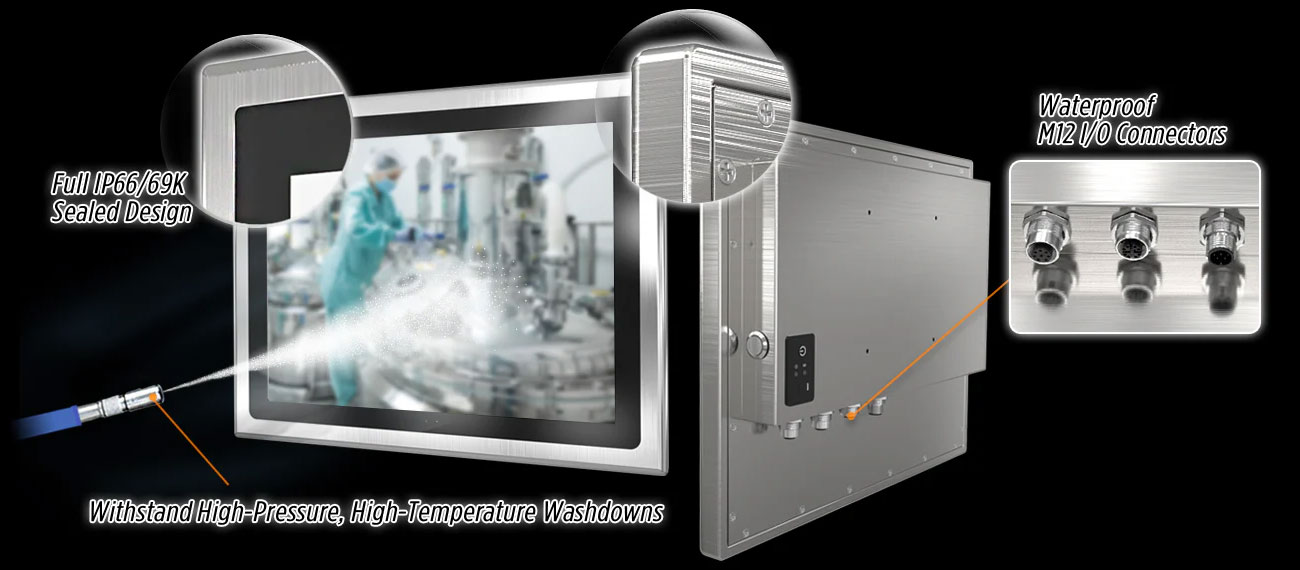

Rugged Stainless Steel Design - Reinforced for Aggressive Washdowns
Type 316 Stainless Steel & IP66/69K rated enclosure provides rigid, corrosion resistance for tough washdown cleanrooms.
Resilient, Responsive Touch Technologies
2-point PCAP touch, 7H hardness glass, and an optional high brightness display provide exceptional visibility and precise interaction. Touchscreen enable/disable control button allows the device to remain powered throughout intense high-pressure washdowns.
Scalable M.2 Expansion for Wireless Connectivity
The SIO-300-ADL Series supports cellular connectivity via an M.2 B-key expansion slot on the 21.5” and 23.8” models, enabling 4G LTE or 5G integration, and also supports Wi-Fi 6E for high-speed wireless networking.
Waterproof M12 Connectors, Straight AC-in Power
Industrial M12 connectors and direct AC power input provides secure, sealed power and I/O connectivity with simplified installation for washdown-ready hygienic environments.
Optical Bonding for Clear Visibility
Prevent condensation and increase longevity and touch accuracy by filling the vulnerable air gap between the touch panel and LCD.
Flexible Mounting Options
The SIO Washdown Touchscreen Computer integrates smoothly into workspace systems through several mounting options. The SIO may be situated on yoke or VESA mounts, or within recessed panel spaces, affording countless deployment options for industrial applications.
Rugged Stainless Steel Design - Reinforced for Aggressive Washdowns
Type 316 Stainless Steel & IP66/69K rated enclosure provides rigid, corrosion resistance for tough washdown cleanrooms.

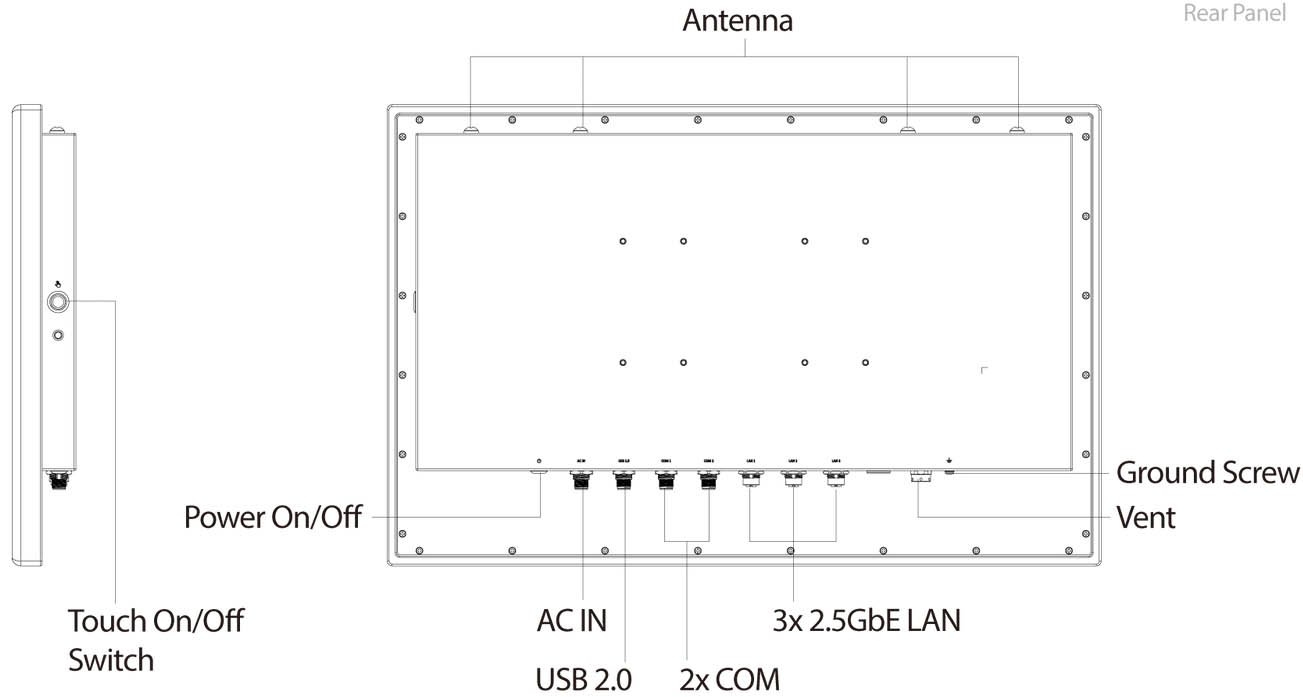

Mechanical Layout
