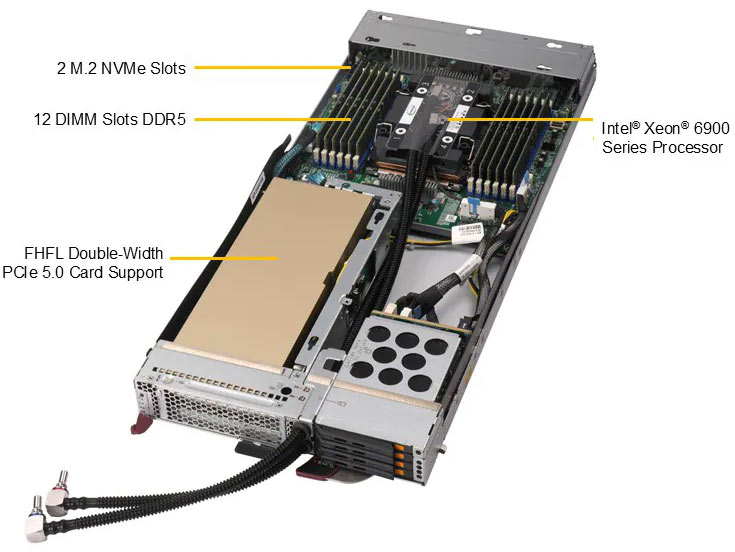

SBI-612BA-1NE34-LCC

70 servers per 42U rack
Single Socket BR (LGA-7529), Intel® Xeon® 6900 series processors
Up to 12 DIMMs supporting up to 3TB 6400MT/s DDR5 RDIMM or 1.5TB 8800MT/s DDR5 MRDIMM
4 Hot-swap E3.S NVMe NVMe SSD, 2 M.2 NVMe SSD
Dual-port 25G Ethernet (LOM)
Expansion slot for Ethenret mezzanine card and for standard PCIe card
High density 6U Blade system with integrated liquid cooling

Key Applications:

Product Specification

SuperBlade Sled	SBI-612BA-1NE34-LCC
Motherboard	MBD-B14SBE-CPU-AP
Processor
CPU	Single Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores
Note	Supports up to 500W TDP CPUs
System Memory (per Node)
Memory Capacity	12 DIMM slots Up to 3TB 6400MT/s DDR5 RDIMM or 1.5TB 8800MT/s DDR5 MRDIMM
On-Board Devices (per Node)
Chipset	System on Chip
Network Controllers	Onboard Dual 25G Ethernet1 expansion slot w/ optional mezzanine cards
MGMT/Security	IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust
Graphics	Aspeed AST2600
System BIOS
BIOS Type	AMI 256MB SPI Flash EEPROM
Dimensions
Height	9.75"
Width	1.75"
Depth	23.5"
Weight	12.1 lbs (5.49 kg)
Available Colors	Metalic Silver with Black Drive Bays

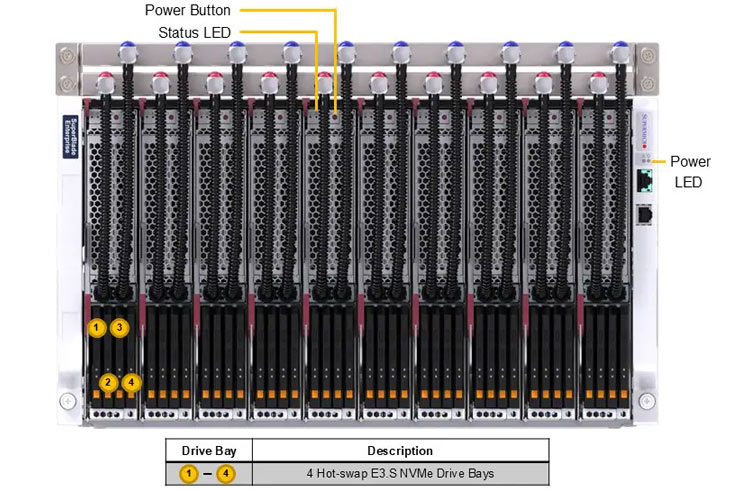

Front Panel
Buttons	Power On/Off button
LEDs	Power LED UID Network Activity LED Fault LED
Expansion Slots (per Node)
PCIe	2 PCIe Gen5 x16 slot, support 1 FHFL DW PCIe card or 2 SW PCIe cards
Drive Bays / Storage (per Node)
Hot-swap	4 Hot-swap E3.S NVMe SSDs
M.2	2 M.2 NVMe SSD
Input / Output
TPM	1 TPM Header
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
