AS-2115HE-FTNR
2U UP Hyper with 24 hot-swap 2.5" drive bays and 1 PCIe 5.0 slot
- Single AMD EPYC™ 9004/9005* Series Processor (*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
- Support up to DDR5 24 DIMM slots (2DPC)
- Optional PCIe slot configurations up to 5 PCIe 5.0 x8 FHFL and 3 PCIe 4.0 x8 FHFL or 3 PCIe 5.0 x16 FHFL and 1 PCIe 4.0 x16 FHFL slots with support for double-width GPU/Accelerator cards
Flexible networking with up to 2 PCIe 5.0 x16 OCP 3.0 compatible AIOM slots - 6 Rear hot-swap 2.5" NVMe/SAS/SATA drive bays
- Redundant 2000W Titanium level AC power supplies
- Support for up to 4 double-width PCIe GPU accelerator cards
- 2U Rackmount chassis with 22.6" (574mm) depth
Key Applications
- Virtualization
- Scientific Virtualization
- AI Inference and Machine Learning
- Cloud Computing
- Enterprise Server
Datasheet
Product Specification
| Product SKUs | A+ Server AS -2115HE-FTNR |
| Motherboard | Super H13SSH |
| Processor | |
| CPU | Single processor(s) AMD EPYC™ 9005/9004 Series Processors |
| Core Count | Up to 192C/384T |
| Note | Supports up to 500W TDP CPUs * *Air Cooled CPUs with TDP over 400W only supported under specific conditions. |
| GPU | |
| Max GPU Count | Up to 4 double-width or 4 single-width GPUs |
| Supported GPU | NVIDIA PCIe: H100 NVL, L40S, L4 |
| CPU-GPU Interconnect | PCIe Gen5 x16 |
| GPU-GPU Interconnect | PCIe |
| System Memory | |

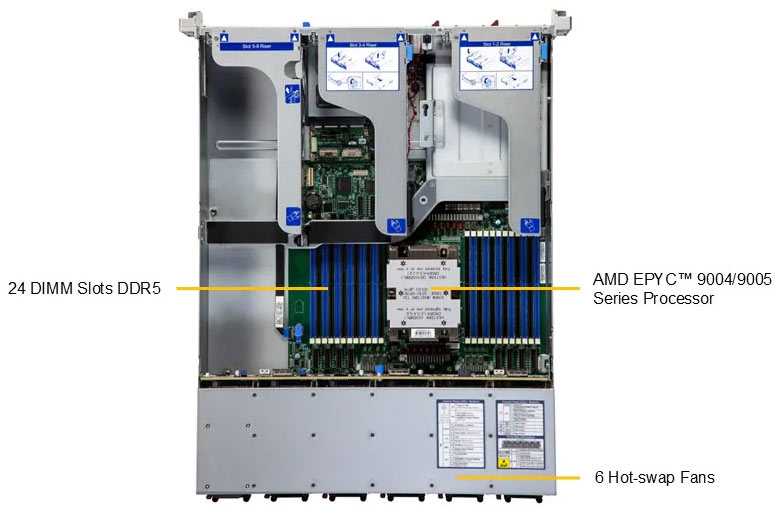

| Memory | Slot Count: 24 DIMM slots/12 Channels Max Memory (1DPC): Up to 3TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (2DPC): Up to 6TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 Type-A ports(Front) |
| Video | 1 VGA port |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| BIOS Features | ACPI 6.4 Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) OOB Management Package (SFT-OOB-LIC ) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism, |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-HE211-R000NFP |
| Dimensions and Weight | |
| Height | 3.5" (88.9 mm) |
| Width | 17.2" (436.88 mm) |
| Depth | 22.6" (574 mm) |
| Package | 9.7" (H) x 23.5" (W) x 36.9" (D) |
| Weight | Gross Weight: 47.4 lbs (21.5 kg) Net Weight: 34.4 lbs (15.6 kg) |
| Available Color | Silver |
| Front Panel | |
| LED | HDD activity LED LAN1 activity LAN2 activity Power Fail Power status LED System information |
| Buttons | Power On/Off UID button |
| Expansion Slots | |

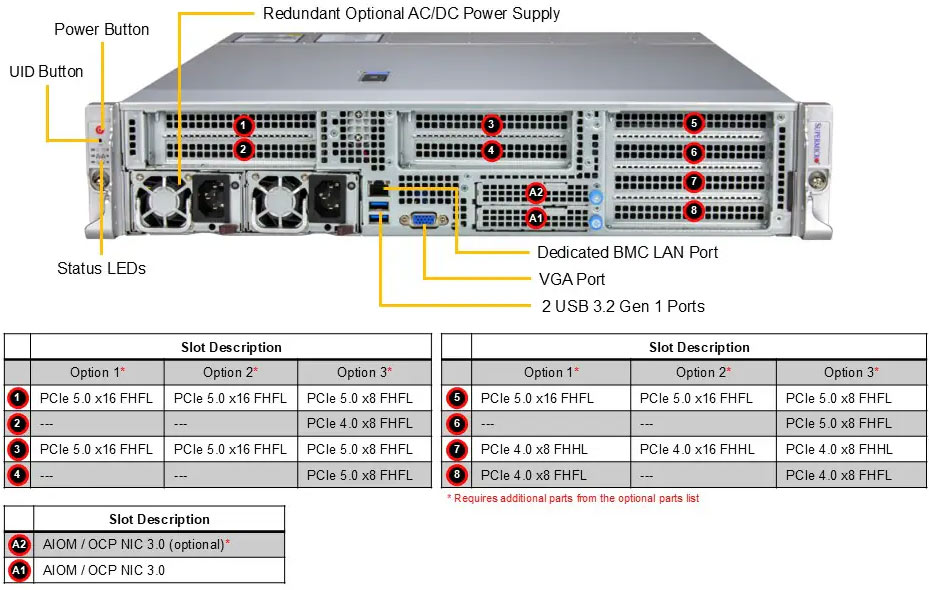

| PCI-Express (PCIe) Configuration | Option A* 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) 3 PCIe 5.0 x16 (in x16) FHFL slots 2 PCIe 4.0 x8 (in x16) FHFL slots Option B* 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) 3 PCIe 5.0 x16 (in x16) FHFL slots 1 PCIe 4.0 x16 (in x16) FHFL slot Option C 2 PCIe 5.0 x16 (in x16) AIOM slots (OCP 3.0 compatible) 5 PCIe 5.0 x8 (in x16) FHFL slots 3 PCIe 4.0 x8 (in x16) FHFL slots (*Requires additional parts) |
| M.2 | 1 M.2 PCIe 3.0 x4 slot (M-key 22110(default)/2280) 1 M.2 PCIe 3.0 x2 slot (M-key 22110(default)/2280) |
| PCI | 8 PCI 5V 32-bit slots |
| Drive Bays / Storage | |

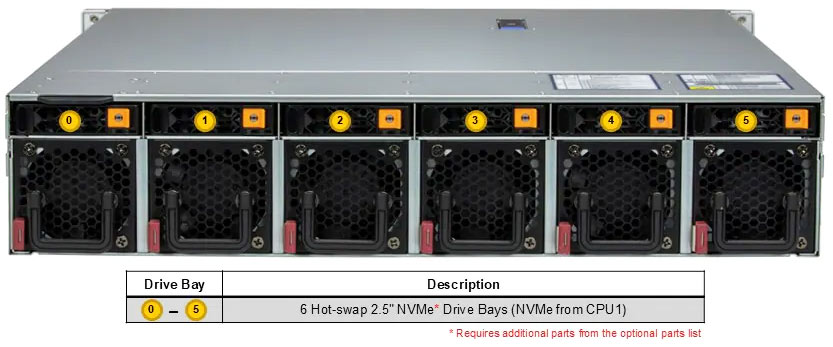

| Drive Bays Configuration | Default: Total 6 bays 6 rear hot-swap 2.5" PCIe 5.0 x4 NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| M.2 | 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 22110(default)/2280) 1 M.2 PCIe 3.0 x2 NVMe slot (M-key 22110(default)/2280) |
| System Cooling | |
| Fans | 6x 6cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
| 2x 1200W | 2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies |
| 2x 2000W | 2x 2000W Redundant (1 + 1) Titanium (certification pending) Level (96%) power supplies |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
