SYS-E201-14AR
Mini-ITX Embedded System with Intel® Core™ Ultra processor
- Single Intel® Core™ Ultra processor up to 65W with air cooling
- Up to 2 ECC/Non-ECC SODIMMs supporting up to 96GB with DDR5-6400MT/s
- 2 RJ45 2.5GbE LAN ports
- 1 internal fixed 2.5" SATA drive bay
- Mini-ITX chassis with 7.68" (195mm) depth
Key Applications
- Digital Signage Kiosk, Interactive info system
- Video processing & streaming
Datasheet
Product Specification
| Product SKU | SuperServer SYS-E201-14AR |
| Motherboard | Super X14SAV-LVDS |
| Processor | |

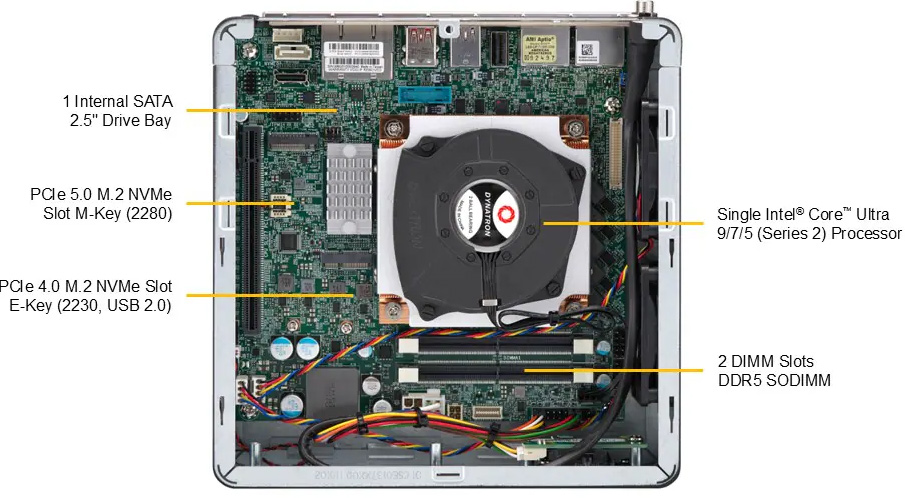

| CPU | Single LGA-1851 Intel® Core™ Ultra 9/7/5 (Series 2) processors |
| Note | Supports up to 65W TDP CPUs (Air Cooled) |
| System Memory | |
| Memory | Slot Count: 2 DIMM slots Max Memory (1DPC): Up to 96GB 6400MT/s ECC/non-ECC DDR5 SO-DIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | Intel® W880 |
| Input / Output | |

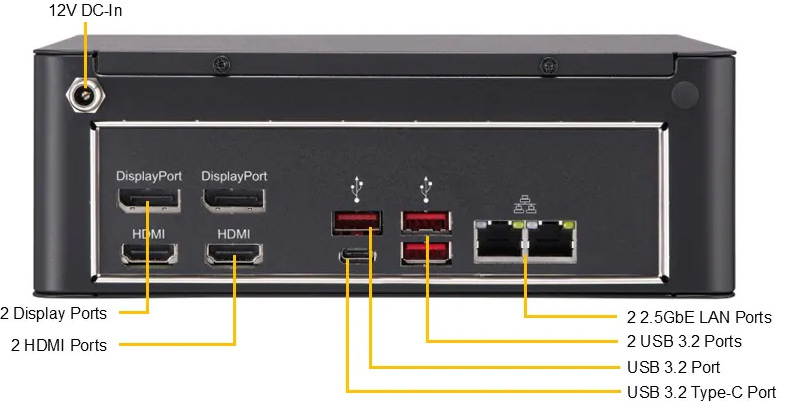

| LAN | 2 RJ45 2.5 GbE LAN ports (Intel® I226) |
| USB | 3 USB 3.2 Gen2 Type-A ports(Rear) 1 USB 3.2 Gen2 Type-C port(Rear) |
| Video | 2 DisplayPort ports(Rear) 2 HDMI ports(Rear) |
| TPM | 1 TPM Onboard/port 80 |
| System BIOS | |
| BIOS Type | AMI 32MB UEFI |
| BIOS Features | ACPI 6.5 SMBIOS 3.7 or later UEFI 2.9 |
| Management | |
| Software | Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) SuperServer Automation Assistant (SAA) New! |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Chassis | |
| Form Factor | Mini-ITX |
| Model | CSE-101iF |
| Dimensions and Weight | |
| Height | 2.68" (68 mm) |
| Width | 7.68" (195 mm) |
| Depth | 7.68" (195 mm) |
| Package | 10.87" (H) x 15" (W) x 5.59" (D) |
| Weight | Gross Weight: 6.68 lbs (3.04 kg) Net Weight: 3.86 lbs (1.75 kg) |
| Available Color | Black |
| Front Panel | |
| Buttons | Power On/Off button System Reset button |
| LED | Power status LED |
| Expansion Slots | |
| M.2 | 1 M.2 PCIe 4.0 x1 slot (E-key 2230) |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 1 bay 1 internal fixed 2.5" SATA* drive bay (*SATA support may require additional storage controller and/or cables) |
| M.2 | 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280) |
| System Cooling | |
| Fans | 1 CPU heatsink with Φ80x15mm Fan(s) 2x 4-PIN PWM 60x60x15mm Fan(s) |
| Power Supply | |
| 1x 180W | 1x 180W power supply |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 0°C to 40°C (32°F to 104°F) with 0.7 m/s airflow Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
