AS-1116R-FN4
H14 1U Ultra-short depth 249mm chassis with AMD EPYC™ 4005/4004 65W server
- Single AMD EPYC™ 4005/4004 & Ryzen™ 9000/7000 Series Processors up to 65W with air cooling
- Support for PCIe GPU accelerator cards
- Up to 4 DIMMs supporting up to 192GB DDR5-5600 UDIMM
- Up to 1 PCIe 5.0 x16 LP slots
- Up to 2 internal fixed 2.5" SATA drive bays
- Mini-1U chassis with 9.8" (249mm) depth
- 1 x 200W power supply
Key Applications
- AI Inference and Machine Learning
- Cloud Computing
- Healthcare
- Surveillance Security Server
| Product SKUs | A+ Server AS -1116R-FN4 |
| Motherboard | Super H14SRV-HLN4F |
| Processor | |
| CPU | Single Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 Series Processor |
| Core Count | 16C/32T; 64MB Cache |
| Note | Supports up to 65W TDP CPUs (Air Cooled) |
| System Memory | |
| Memory | Slot Count: 2 DIMM slots Max Memory (1DPC): 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | AMD B650 |
| Input / Output | |
| LAN | 4 RJ45 1 GbE LAN ports (Intel® I350-AM4) 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600) |
| USB | 1 USB 3.2 Gen2 Type-C port(Rear) 2 USB 3.2 Gen2 Type-A ports(Rear) 1 USB 3.0 Gen2 Type-A port(Rear) |
| Video | 1 HDMI 2.1 port(Rear) 1 Mini-DP port(Rear) |
| TPM | 1 TPM header 1 TPM Onboard/port 80 |
| System BIOS | |
| BIOS Type | AMI 32MB UEFI |
| BIOS Features | ACPI 6.5 SMBIOS 3.7 or later UEFI 2.9 |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! Plug-ins for 3rd Party Software |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring | |
| FAN | Status monitor for speed control |
| Chassis | |
| Form Factor | Mini-1U |
| Model | CSE-505-203B |
| Dimensions and Weight | |
| Height | 1.7" (43 mm) |
| Width | 17.2" (437 mm) |
| Depth | 9.8" (249 mm) |
| Package | 6.1" (H) x 25.8" (W) x 18.3" (D) |
| Weight | Gross Weight: 10 lbs (4.54 kg) |
| Available Color | Black |

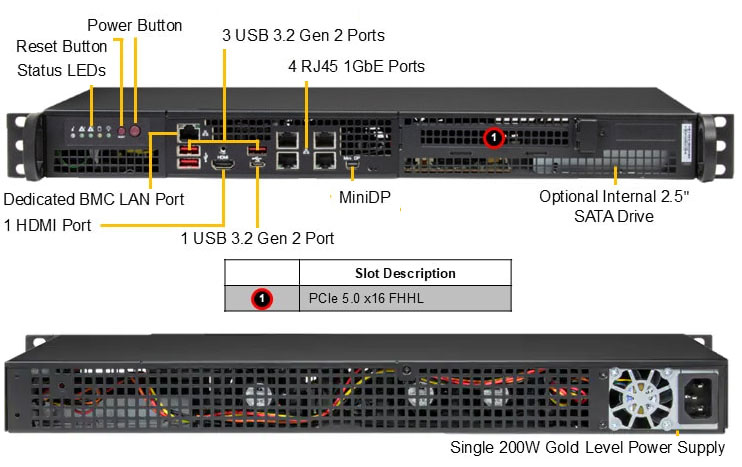

| Front Panel | |
| Buttons | Power On/Off button System Reset button |
| LED | Fan Fail/System Over Heat LED HDD activity LED Network Activity LEDs Power status LED |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x16 (in x16) LP slot |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 2 bays 2 internal fixed 2.5" NVMe* drive bays Option A: Total 1 bay 1 internal fixed 3.5" SATA* drive bay (*NVMe/SATA support may require additional storage controller and/or cables) |
| M.2 | 1 M.2 PCIe 5.0 x4 slot (M-Key 2280) 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 22110) |
| System Cooling | |
| Fans | 3 counter-rotating 40x40x28mm Fan(s) |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
| Power Supply | 1x 200W Gold Level (91%) power supply |
| Dimension (WxHxL) | 76 x 40.3 x 192 mm |
| Input | 200W: 100-240Vac 200W: 100-240Vac / 50-60Hz |
| +12V | Max: 16A / Min: 0A (100Vac-240Vac) Max: 16A / Min: 0.1A (100Vac-240Vac) |
| 5V SB | Max: 2A / Min: 0A |
| Output Type | 20pin ATX |
| Certification | Gold Level |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
