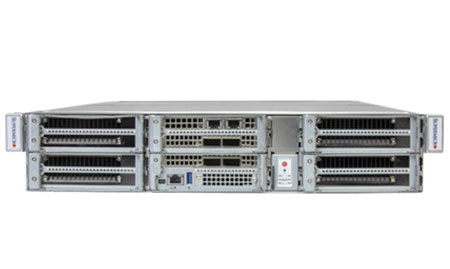

SYS-212GB-NR
UP Intel 2U PCIe GPU Server. Up to 2 NVIDIA RTX PRO™ 6000 Blackwell Server Edition or NVIDIA H200
- Intel® Xeon® 6700 series processors, Single Socket, CPU TDP supports Up to 350W
- Support up to 4 double-width PCIe GPU accelerator cards
- Up to 2TB ECC RDIMM DDR5-6400MT/s and up to 512GB MRDIMM DDR5-8000MT/s in 16 DIMM slots
- Up to 4 PCIe 5.0 x16 FHFL double-width + 3 PCIe 5.0 x16 FHFL slots
- Up to 4 front hot-swap E1.S NVMe drive bays
- 3 Redundant 2000W Titanium Level power supplies
- 2U Rackmount chassis with 35.43" (900mm) depth
Key Applications
- Scientific Research
- Model analysis
- High Performance Computing (HPC)
- Research Lab
- Edge AI Inferencing
- Financial Services
Datasheet
Product Specification
| Product SKUs | SuperServer SYS-212GB-NR |

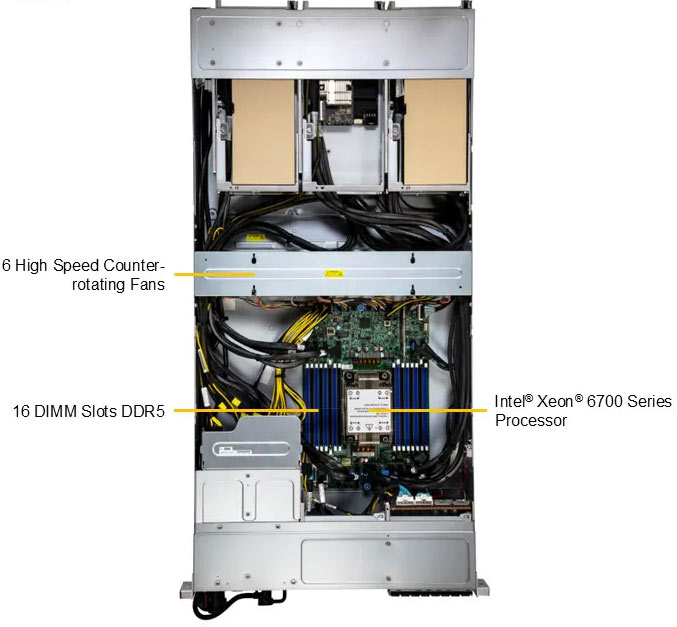

| Motherboard | Super X14SBGM |
| Processor | |
| CPU | Single Socket E2 (LGA-4710) Intel® Xeon® 6700-series processors with P-cores |
| Core Count | Up to 80C/160T |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | Up to 4 double-width GPUs |
| Supported GPU | NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® Bridge (optional) |
| System Memory | |
| Memory | Slot Count: 16 DIMM slots/8 Channels Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | System on Chip |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 1 USB 3.0 Type-A port(Rear) |
| Video | 1 mini-DP port |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! Plug-ins for 3rd Party Software |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-GP201TS-R000NP |
| Dimensions and Weight | |
| Height | 3.46" (88 mm) |
| Width | 17.25" (438.4 mm) |
| Depth | 35.43" (900 mm) |
| Package | 11" (H) x 22.5" (W) x 45.5" (D) |
| Weight | Gross Weight: 84 lbs (38 kg) Net Weight: 66 lbs (30 kg) |
| Available Color | Black front & silver body |
| Front Panel | |
| LED | Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED |
| Buttons | Power On/Off button System Reset button |
| Expansion Slots | |

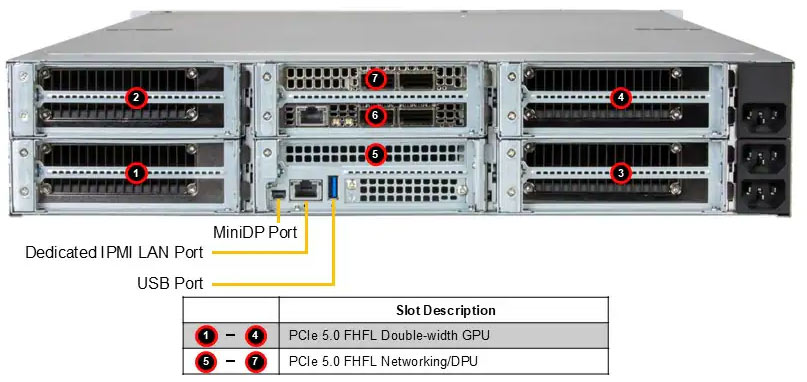

| PCI-Express (PCIe) Configuration | Default 4 PCIe 5.0 x16 FHFL double-width slots 3 PCIe 5.0 x16 FHFL slots |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 4 bays 4 front hot-swap E1.S NVMe drive bays |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) |
| System Cooling | |
| Fans | 6x 6cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
| 3x 2000W | 3x 2000W Redundant Titanium Level (96%) power supplies |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) |
