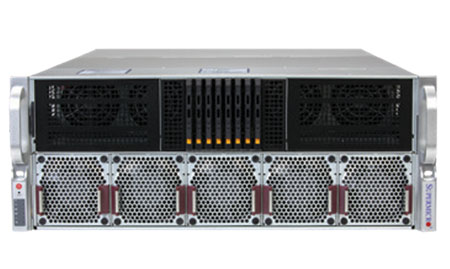

SYS-422GA-NRT
DP Intel 4U Dual-Root PCIe GPU System with up to 10 GPUs
- Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores up to 500W with air cooling
- Support for up to 8 double-width PCIe GPU accelerator cards

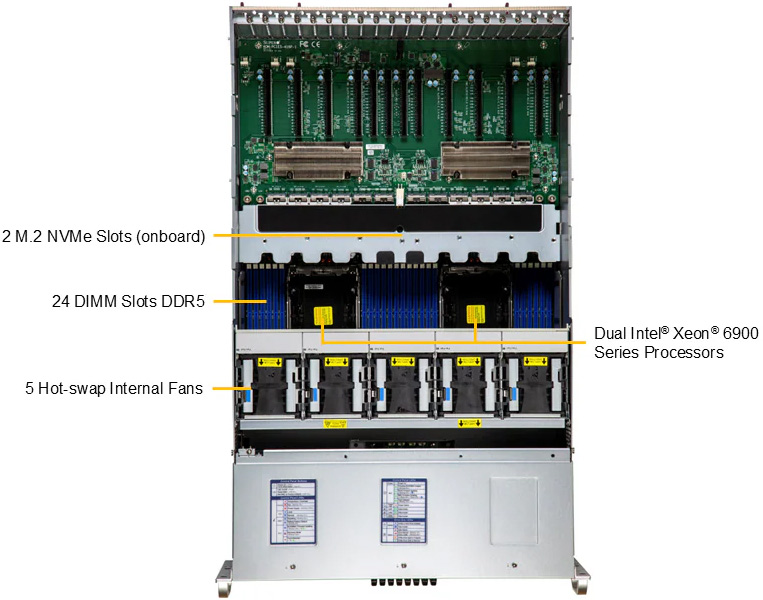

- Up to 24 DIMMs supporting up to 6TB DDR5-6400 in 1DPC or 6TB DDR5-8800 in 1DPC
- Flexible networking with up to AIOM slots

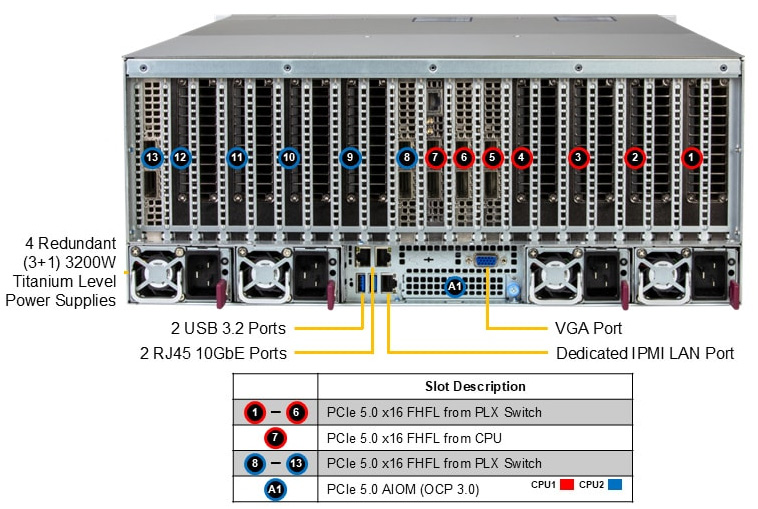

- Up to 13 PCIe 5.0 x16 FHFL slots
Key Applications
- High Performance Computing
- VDI
- AI/Deep Learning Training
- Media/Video Streaming
- Cloud Gaming
- Animation and Modeling
- Design & Visualization
- 3D Rendering
- Diagnostic Imaging
Datasheet
Product Specification
<
| Product SKUs | SuperServer SYS-422GA-NRT |
| Motherboard | Super X14DBG-AP |
| Processor | |
| CPU | Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores |
| Core Count | Up to 128C/256T; Up to 504MB Cache per CPU |
| Note | Supports up to 500W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs |
| Supported GPU | NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition |
| CPU-GPU Interconnect | PCIe 5.0 x16 Switch Dual-Root |
| GPU-GPU Interconnect | NVIDIA® NVLink® Bridge (optional) |
| System Memory | |
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710-AT2 |
| Input / Output | |
| LAN | 2 RJ45 10 GbE LAN ports (Intel® I350) |
| USB | 2 USB 3.0 Type-A ports(Rear) |
| Video | 1 VGA port |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 4U Rackmount |
| Model | CSE-418G3TS-R6K40P |
| Dimensions and Weight | |
| Height | 7" (178 mm) |
| Width | 17.2" (437 mm) |
| Depth | 29" (737 mm) |
| Package | 26.57" (H) x 27" (W) x 41" (D) |
| Weight | Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) |
| Available Color | Black Front & Silver Body |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 13 PCIe 5.0 x16 FHFL slots |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key) |
| Drive Bays / Storage | |

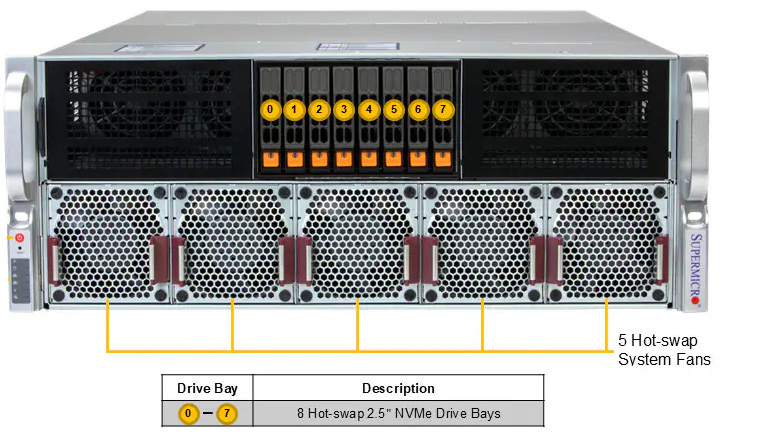

| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap E3.L 1T PCIe 5.0 x4 NVMe drive bays |
| M.2 | 2 M.2 NVMe slots (M-key) |
| System Cooling | |
| Fans | Up to 10 heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
| 4x 3200W | >4x 3200W Redundant (3 + 1) Titanium Level (96%) power supplies |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
