ARS-111GL-DSHR-LCC
1U 2-Node NVIDIA GH200 Grace Hopper Superchip system with liquid-cooling supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7
Two nodes in a 1U form factor. Each node supports the following:
- Supports up to eight E1.S drives with NVIDIA's BlueField®-3 in Storage Configuration
- High density 1U 2-node GPU system with Integrated NVIDIA® H100 GPU
- NVIDIA Grace Hopper™ Superchip (Grace CPU and H100 GPU), up to 72 cores per node (Liquid-Cooled)
- NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s
- Up to 576GB of coherent memory per node including 480GB LPDDR5X (CPU) and 96GB of HBM3 (GPU) for LLM applications
- 2 PCIe 5.0 x16 slots per node (1 PCIe FHFL slot dedicated to BlueField-3 and 1 PCIe LP)

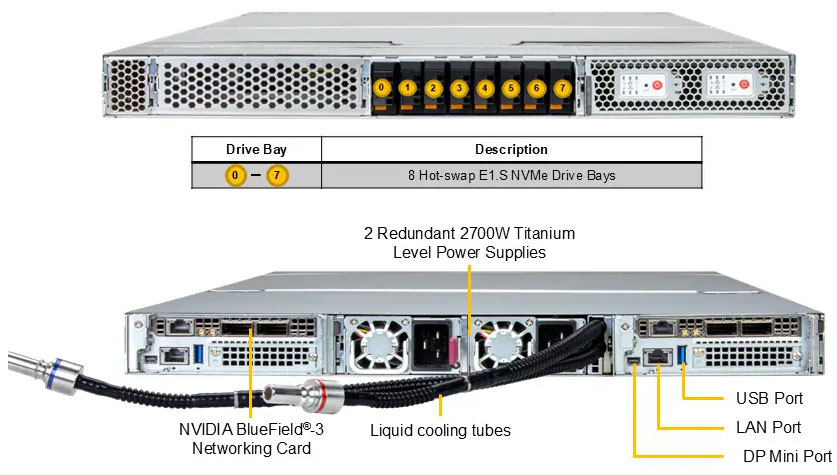

- Supports up to eight hot-swap E1.S drives bays (four per node).

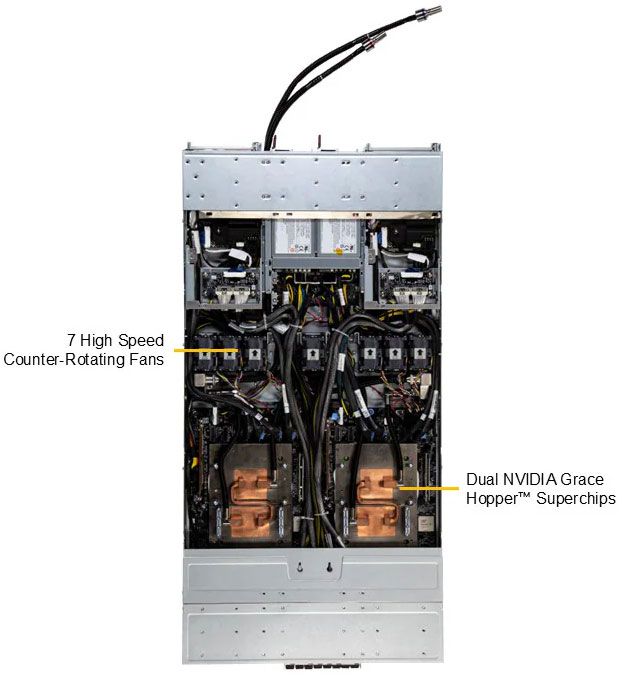

- 7 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
Key Applications
- High Performance Computing
- AI/Deep Learning Training and Inference
- Large Language Model (LLM) and Generative AI
Datasheet
| Product SKUs | ARS-111GL-DSHR-LCC |
| Motherboard | Super G1SMH-G |
| Processor (per Node) | |
| CPU | NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip |
| Note | Supports up to 2000W TDP CPUs (Liquid Cooled) |
| GPU (per Node) | |
| Max GPU Count | Up to 1 onboard GPU |
| Supported GPU | NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip |
| GPU-GPU Interconnect | PCIe |
| System Memory (per Node) | |
| Memory | Slot Count: Onboard Memory Max Memory: Up to 480GB ECC LPDDR5X Additional GPU Memory: Up to 96GB ECC HBM3 |
| On-Board Devices (per Node) | |
| Chipset | System on Chip |
| Input / Output (per Node) | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 1 port(Rear) |
| Video | 1 mini-DP port |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-MG102TS-R000NDFP-2N |
| Dimensions and Weight | |
| Height | 1.7" (43.6 mm) |
| Width | 17.26" (438.4 mm) |
| Depth | 35.4" (900 mm) |
| Package | 9.05" (H) x 27.36" (W) x 46.06" (D) |
| Weight | Gross Weight: 49.21 lbs (22.32 kg) Net Weight: 33.64 lbs (15.26 kg) |
| Available Color | Silver |
| Front Panel | |
| Buttons | Power On/Off button |
| Expansion Slots (per Node) | |
| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x16 FHFL slot 1 PCIe 5.0 x16 LP slot |
| Drive Bays / Storage (per Node) | |
| Drive Bays Configuration | Default: Total 4 bays 4 front hot-swap E1.S NVMe drive bays |
| M.2 | 2 M.2 NVMe slots (M-key) |
| System Cooling | |
| Fans | Up to 7 Removable heavy-duty 4cm Fan(s) |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Power Supply | |
| Power Supply | 2x 2700W Redundant Titanium Level (96%) power supplies |
| Dimension (WxHxL) | 73.5 x 40 x 185 mm |
| Input | 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) |
| +12V | Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc) |
| 12V SB | Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
