ARS-121L-DNR-LCC
1U 2-Node NVIDIA Grace™ CPU Superchip liquid-cooled system supporting NVIDIA BlueField®-3 or NVIDIA ConnectX®-7
Two nodes in a 1U form factor. Each node supports the following:

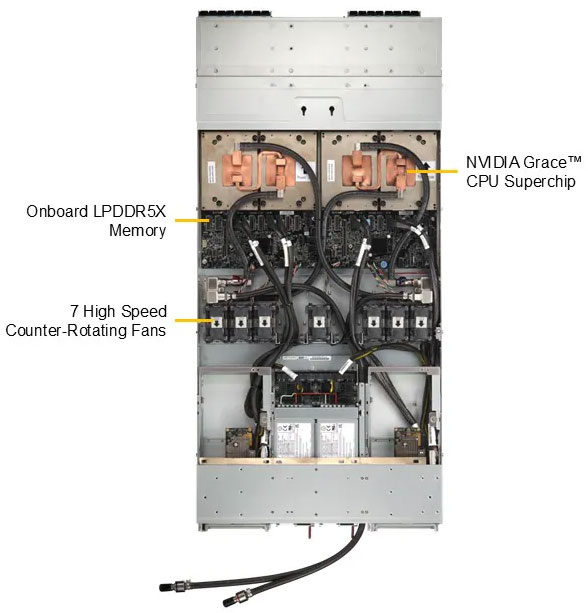

- High density processor(s) NVIDIA 144-core CPUs on a Grace™ CPU Superchip with liquid- cooling
- Up to 960GB onboard memory
- Up to 2xPCIe 5.0 x16 slots
- Up to 2xE1.S NVMe drive bays, 2xM.2 NVMe drive
- 2 Redundant 2000W Titanium Level power supplies
Key Applications
- High Performance Computing
- Hyperscale Cloud Applications
- Data Analytics
Datasheet
| Product SKUs | ARS-121L-DNR-LCC |
| Motherboard | Super G1SMH |
| Processor (per Node) | |
| CPU | Single processor(s) NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip |
| Note | Supports up to 500W TDP CPUs (Liquid Cooled) |
| System Memory (per Node) | |
| Memory | Slot Count: Onboard Memory Max Memory: Up to 960GB ECC |
| On-Board Devices (per Node) | |
| Chipset | NVIDIA C2 |
| Input / Output (per Node) | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 1 port(Rear) |
| Video | 1 mini-DP port |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-MG102TS-R000NDFP-2N< |
| Dimensions and Weight | |
| Height | 1.7" (43.6 mm) |
| Width | 17.26" (438.4 mm) |
| Depth | 35.4" (900 mm) |
| Package | 9.05" (H) x 27.36" (W) x 46.06" (D) |
| Weight | Gross Weight: 49.21 lbs (22.32 kg) Net Weight: 33.64 lbs (15.26 kg) |
| Available Color | Silver |
| Front Panel | |
| Buttons | Power On/Off button |
| Expansion Slots (per Node) | |
| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x16 FHFL slot 1 PCIe 5.0 x16 LP slot |
| Drive Bays / Storage (per Node) | |

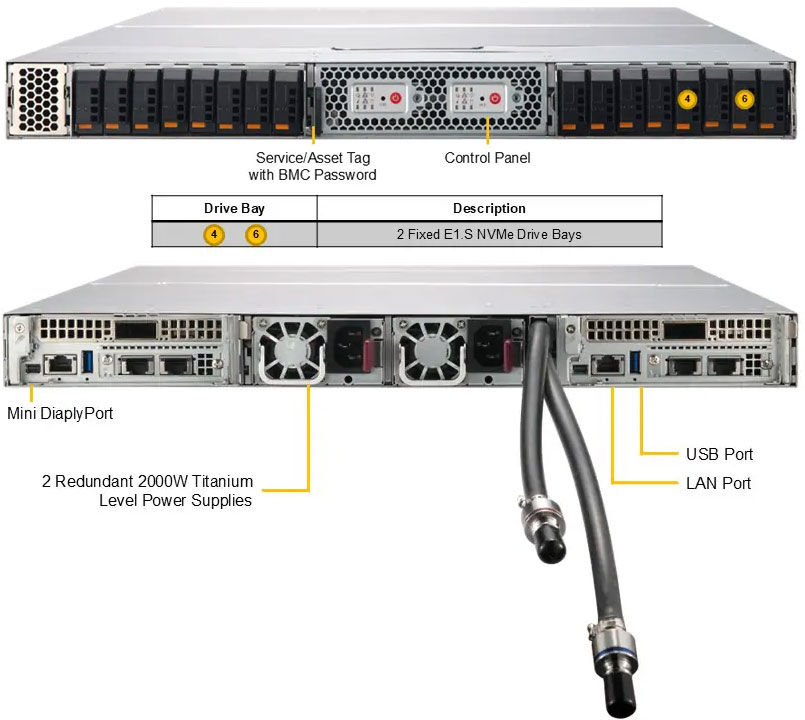

| Drive Bays Configuration | Default: Total 2 bays 2 front fixed E1.S NVMe drive bays |
| M.2 | 2 M.2 NVMe slots (M-key) |
| System Cooling | |
| Fans | Up to 7 Removable heavy-duty 4cm Fan(s) |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate |
| Power Supply | |
| Power Supply | 2x 2000W Redundant Titanium Level (96%) power supplies |
| Dimension (WxHxL) | 73.5 x 40 x 185 mm |
| Input | 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vdc / 50-60Hz (for CQC only) |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
