SYS-422GS-NBRT-LCC
DP Intel 4U Liquid-Cooled Server with NVIDIA HGX B200 8-GPU
- Complete liquid-cooled rack integration is required for purchase
- Dual Intel® Xeon® 6700 series processors with P-cores
- 8x Nvidia B200 GPUs, 1.4TB of GPU memory space
- 32x DIMMs slots, RDIMM ECC DDR5
- 8x PCIe 5.0 x16 LP + 2x PCIe 5.0 x16 FHHL slots
- 8x front hot-swap E1.S + 2x M.2 NVMe drive bays
- 2x 10GbE, 1x Dedicated BMC/IPMI
- 4x Redundant 6600W Titanium Level power supplies
Key Applications
- Scientific Research
- Conversational AI
- Business Intelligence & Analytics
- Drug Discovery
- Finance Services and Fraud Detection
- AI/Deep Learning Training and Inference
- Large Language Model (LLM) and Generative AI
- High Performance Computing (HPC)
Product Specification
| Product SKU | SuperServer SYS-422GS-NBRT-LCC |
| Motherboard | Super X14DBG-LC+ |
| Processor | |
| CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700-series processors with P-cores |
| Note | Supports up to 350W TDP CPUs (Liquid Cooled) |
| GPU | |
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ |
| System Memory | |
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710-AT2 |
| Input / Output | |
| Video | 1 VGA port(Front) 1 Mini-DP port(Front) |
| System BIOS | |
| BIOS Type | AMI 64MB UEFI |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 4U Rackmount |
| Model | CSE-GP405TS-R000NP |
| Dimensions and Weight | |
| Height | 6.85" (174 mm) |
| Width | 17.6" (448 mm) |
| Depth | 39.03" (991.4 mm) |
| Package | 16.14" (H) x 54.92" (W) x 31.29" (D) |
| Weight | Gross Weight: 280 lbs (127 kg) Net Weight: 236 lbs (107 kg) |
| Available Color | Silver |
| Front Panel | |
| LED | HDD activity LAN1 activity LAN2 activity Power Fail Power status System information (overheat/UID) |
| Buttons | Power On/Off UID |
| Expansion Slots | |

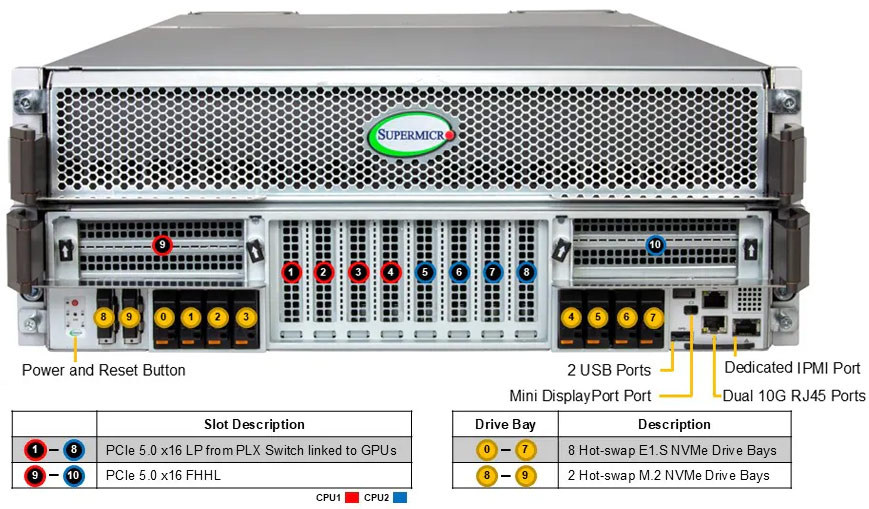

| PCI-Express (PCIe) Configuration | Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays |
| M.2 | 2 M.2 NVMe slots (M-key) |
| System Cooling | |

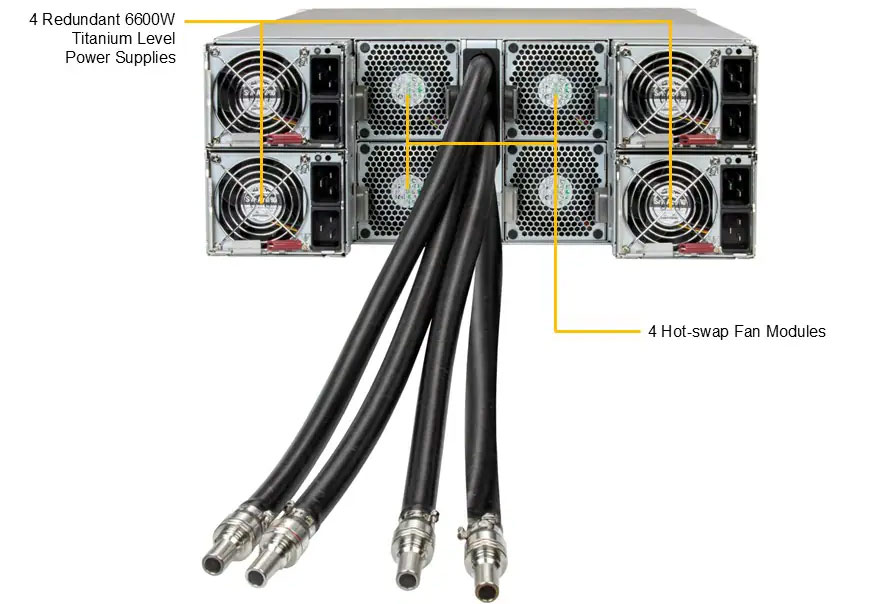

| Fans | 6 Fan 80mm Fan(s) |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate |
| Power Supply | |
| 4x 6600W | 4x 6600W Redundant (2 + 2) Titanium Level (96%) power supplies |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Front I/O 4U Liquid-Cooled NVIDIA HGX™ B200 Server
Supermicro’s Front I/O NVIDIA HGX B200 systems simplify the deployment, management, and maintenance of air or liquid-cooled AI infrastructure, allowing easy front I/O access, simplifying cabling, improving thermal efficiency and compute density, and reducing operational expenses (OPEX).
Supermicro designed the liquid-cooled 4U Front I/O B200 system as the building block for densely populated AI factories that can reach cluster sizes beyond thousands of system nodes. This system features DLC-2 technology with support for higher inlet temperatures, reduced noise levels, additional cold plate coverage, delivering benefits of up to 40% data center power savings versus air cooling.

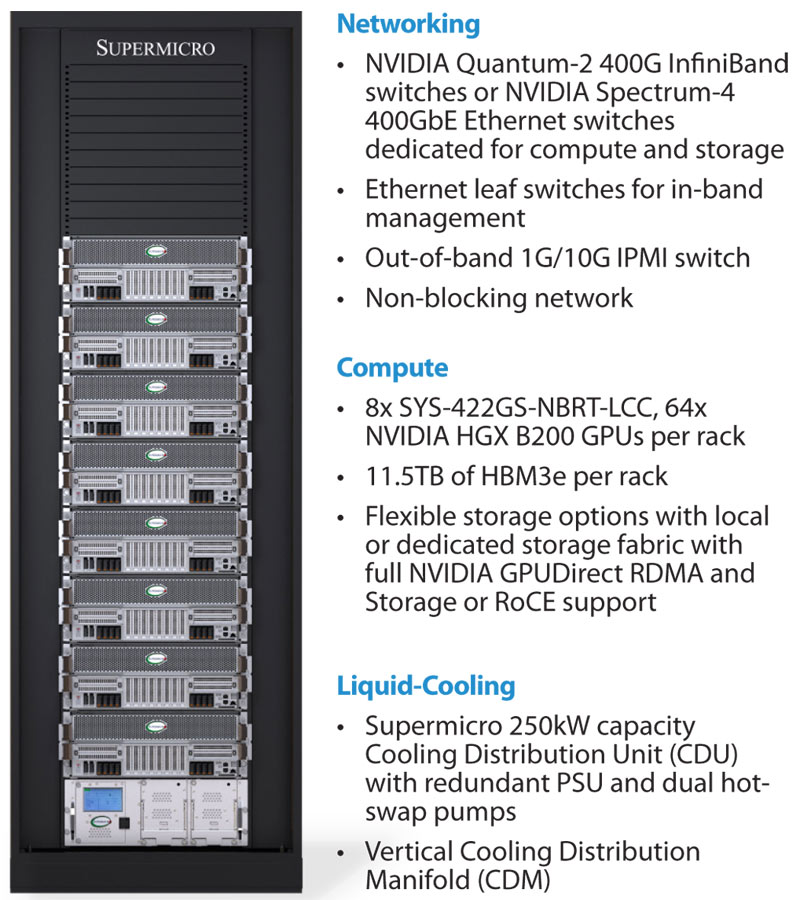

Liquid-Cooled Rack with 4U NVIDIA HGX B200 8-GPU Front I/O DLC-2 Server
SYS-422GS-NBRT-LCC
| Overview | 4U DLC-2 liquid-cooled system with front I/O NICs, DPUs, storage, and management |
| CPU | Dual-Socket Intel® Xeon® 6700 Series Processors with P-cores, up to 350W |
| Memory | 32 DIMMs with up to 8TB at 5200MT/s or up to 4TB at 6400MT/s DDR5 RDIMM |
| GPU | NVIDIA HGX B200 8-GPU with 5th Generation NVLink® 1.8TB/s, 1.4TB of HBM3e GPU memory per system |
| Networking | Up to 8 single-port NVIDIA ConnectX®-7 NICs or NVIDIA BlueField®-3 SuperNICs Up to two dual-port NVIDIA BlueField®-3 DPUs |
| Storage | 8 Hot-swap E1.S NVMe storage drive bays and 2 M.2 NVMe boot drives |
| Power Supply | 4x Redundant 6600W Titanium Level power supplies |
| Liquid Cooling with DLC-2 | Up to 98% system heat capture by liquid-cooling CPUs, GPUs, DIMMs, PCIe switches, VRMs, power supplies, and more |
