SYS-120C-TN10R
1U CloudDC DP Intel Server with 10 NVMe bays

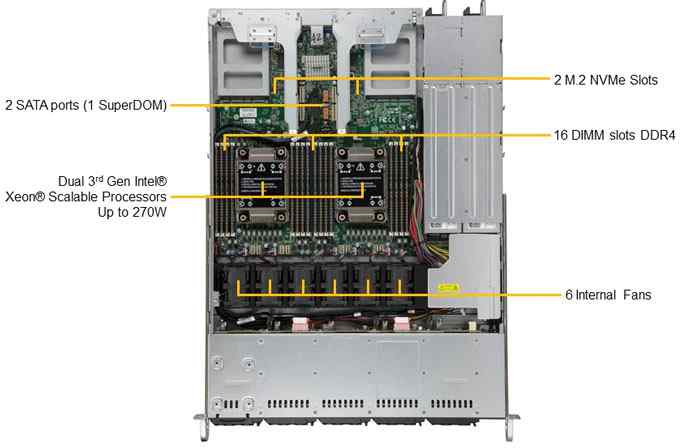

- Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
- Intel® C621A Chipset
- 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® DCPMM
- 2 PCI-E 4.0 x16 FHHL; 2 PCI-E 4.0 x16 AIOM (OCP 3.0); 2 PCI-E 3.0 x2 NVMe M.2
- Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN

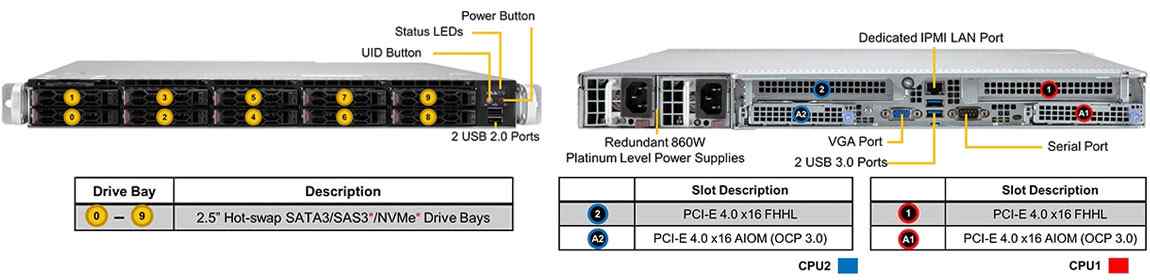

- 10x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
- 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
- 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
- 1 VGA, 1 COM, 2 USB 3.0 (rear), 2 USB 2.0 (front)
Datasheet
Product Specification
| SYS-120C-TN10R | SuperServer SYS-120C-TN10R |
| Motherboard | Super X12DDW-A6 |
| Processor/Cache | |
| CPU | Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors 3 UPI up to 11.2GT/s Support CPU TDP 270W CPUs with TDP higher than 185W may have support conditions due to power and thermal limitations. |
| Cores | Up to 40C/80T |
| System Memory | |
| Memory | Memory Capacity: 16 DIMM slots UP to 4TB: 16x 256 GB DRAM UP to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM Intel® Optane™ persistent memory 200 series |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices | |
| NVMe | NVMe; RAID 0/1/5/10 support |
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support |
| Chipset | Intel® C621A |
| Network Connectivity | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
| SATA | 1 SuperDOM port(s) |
| LAN | 1 Dedicated IPMI LAN port |
| USB | 2 USB 2.0 port(s) (2 front) 2 USB 3.0 port(s) (2 rear) |
| Video | 1 VGA port(s) |
| System BIOS | |
| BIOS Type | AMI 32MB SPI FLASH ROM |
| Management | |
| Software | SCC Redfish API IPMI 2.0 SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI Watch Dog SuperDoctor® 5 |
| Power Configurations | ACPI/APM Power Management |
| PC Health Monitoring | |
| CPU | 4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory. |
| FAN | Fans with tachometer monitorin Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-LB16AC10-R860AW |
| Dimensions and Weight | |
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 23.5" (597mm) |
| Package | 7.8" (H) x 23.8" (W) x 32.4" (D) |
| Weight | Net Weight: 25 lbs (11.3 kg) Gross Weight: 40 lbs (18.1 kg) |
| Available Color | Black front & sliver body |
| Front Panel | |
| Buttons | Power On/Off button UID button |
| LEDs | HDD activity LED Network activity LEDs Power status LED |
| Expansion Slots | |
| PCI-Express (PCI-E) | Slot 1: PCI-E 4.0 x16 FHHL Slot 2: PCI-E 4.0 x16 FHHL |
| Drive Bays / Storage | |
| Hot-swap | 10x 2.5" hot-swap NVMe/SATA/SAS drive bays (10x 2.5" NVMe hybrid) |
| M.2 | 2 M.2 NVMeM-Key, 2280 |
| System Cooling | |
| Fans | 6x 4cm heavy duty fans with optimal fan speed control |
| Air Shroud | 2 Air Shroud(s) |
| Power Supply | AC 860W, Platinum Level, Redundant Power Supply, 54.5mm width |
| Dimension (W x H x L) | 54.5 x 40.25 x 320 mm |
| Output Type | Gold Finger |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
