AS-3015MR-H5TNR
3U 5-Node MicroCloud with double-width GPU support
- Single Socket AMSingle Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 or Ryzen™ 7000 / 9000 Series Processor up to 170W with air cooling
- Support for up to 1 double-width PCIe GPU accelerator card
- Up to 4 DIMMs supporting up to 192GB DDR5-5200MT/s (1DPC)/ 3600MT/s (2DPC)
- Up to 1 PCIe 5.0 x16 LP + 1 PCIe 5.0 x4 MicroLP slots
- Up to 2 internal fixed 2.5" NVMe + 2 internal fixed 2.5" SATA drive bays
- 4 Redundant 2000W Titanium Level power supplies
- 3U Rackmount chassis with 30.51" (775mm) depth
Key Applications
- Cloud Computing
- Web/Collocation Services
- Web Cache, CDN, Video Streaming
- Social Networking, Downloads
- Corporate - WINS, DNS, Print, Login
Datasheet
Product Specification
| Product SKUs | A+ Server AS -3015MR-H5TNR |
| Motherboard | Super H13SRE-F |
| Processor (per Node) | |
| CPU | Single Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 Series Processor |
| Core Count | Up to 16C/32T; Up to 128MB Cache |
| Note | Supports 65W - 170W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 120W only supported under specific conditions. |
| GPU (per Node) | |
| Max GPU Count | Up to 1 double-width GPU |
| Supported GPU | NVIDIA PCIe: L40, L40S, L4, A16, A2, A10 AMD PCIe: Instinct™ MI210 |
| System Memory (per Node) | |
| Memory | Slot Count: 4 DIMM slots Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM Max Memory (2DPC): Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices (per Node) | |
| NVMe | NVMe; (Native) |
| Chipset | System on Chip |
| Network Connectivity | No NIC option supported |
| Input / Output (per Node) | |
| USB | 2 USB 2.0 ports |
| Video | 1 port |
| TPM | 1 TPM Onboard/port 80 |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI 6.0 Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| Temperature | Monitoring for CPU and chassis environment |
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V |
| FAN | Fan speed control, Dual Cooling Zone |
| Chassis | |
| Form Factor | 3U Rackmount |
| Model | CSE-MC301G-000NFP |
| Dimensions and Weight | |
| Height | 5.16" (131 mm) |
| Width | 17.68" (449 mm) |
| Depth | 30.51" (775 mm) |
| Package | N/A |
| Weight | Gross Weight: 147 lbs (66.68 kg) Net Weight: 107.5 lbs (48.76 kg) |
| Palletized Packing (W x H x L) | 27.17" (690 mm) x 16.93" (430 mm) x 44.88" (1140 mm) |
| Available Color | No Paint |
| Expansion Slots (per Node) | |

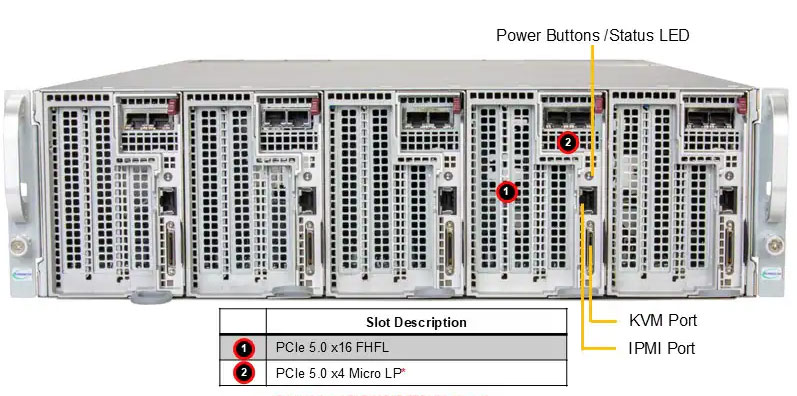

| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x4 MicroLP slot Option A 2 PCIe 5.0 x8 LP slots |
| Drive Bays / Storage (per Node) | |
| Drive Bays Configuration | Default: Total 4 bays 2 internal fixed 2.5" PCIe 5.0 NVMe drive bays 2 internal fixed 2.5" SATA drive bays |
| M.2 | 1 M.2 NVMe slot (M-key 2280/22110) |
| System Cooling | |
| Fans | 5 Heavy Duty 8cm Fan(s) |
| Air Shroud | 10 Air Shrouds |
| Power Supply | |
| 4x 2000W | 4x 2000W Redundant (3 + 1) Titanium Level (96%) power supplies |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
Resources:

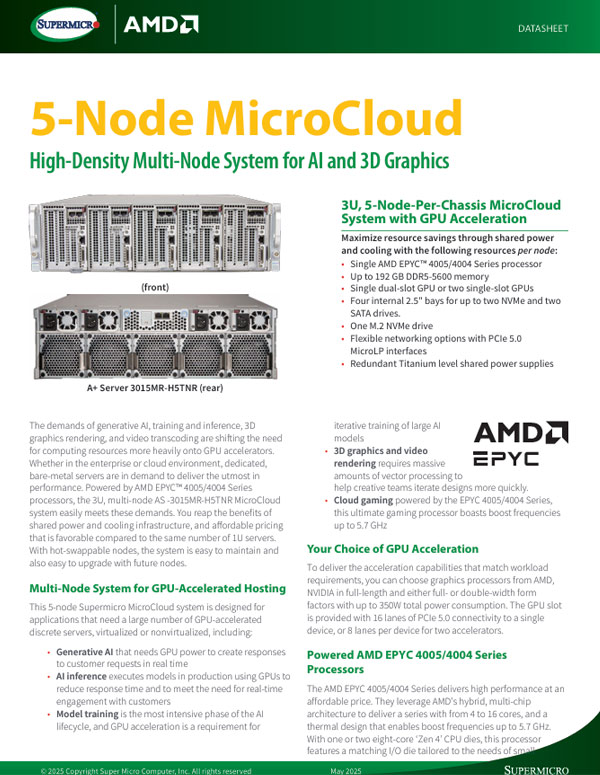

5-Node MicroCloud Server
High-Density Multi-Node Server with GPU Acceleration for AI and 3D Graphics

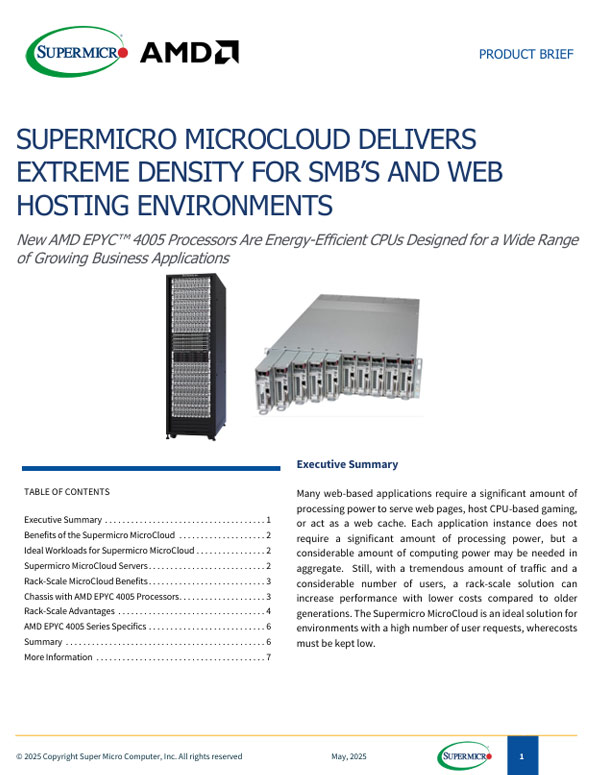

Supermicro MicroCloud Delivers Extreme Density for SMBs and Web Hosting Environments
