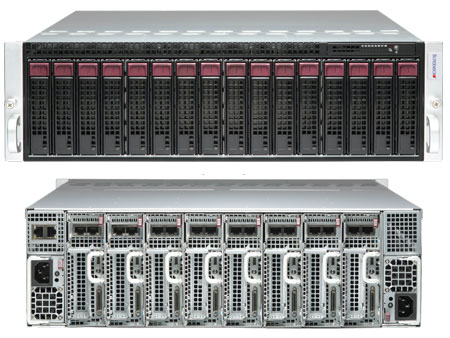

AS-3015MR-H8TNR
3U 8-Node MicroCloud Server with single-width GPU support
- Single Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 or Ryzen™ 7000 / 9000 Series Processor up to 170W with air cooling
- AMD Knoll - Integrated I/O Controller Hub
- 8 sets of up to 192GB ECC/non ECC UDIMM; DDR5 5200MHz, in 4 DIMM sockets
- 8 sets of 1 PCIe 5.0 x8 (in x16) LP slots + 1 Micro-LP slot
- 8 sets of 2 front NVMe U.2/ SAS/ SATA3 drive bays with optional kits
- 2200W Redundant 80+ Titanium Level high-efficiency power supplies
Key Applications
- Cloud Computing
- Web/Collocation Services
- Web Cache, CDN, Video Streaming
- Social Networking, Downloads
- Corporate - WINS, DNS, Print, Login
Datasheet
Product Specification
| Product SKUs | A+ Server AS -3015MR-H8TNR |
| Motherboard | Super H13SRD-F |
| Processor (per Node) | |
| CPU | Single Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 Series Processor |
| Core Count | Up to 16C/32T; Up to 128MB Cache |
| Note | Supports 65W - 170W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 120W only supported under specific conditions. |
| GPU | |
| Max GPU Count | Up to 1 single-width GPU(s) |
| Supported GPU | NVIDIA PCIe: T4, L4, A2 |
| System Memory (per Node) | |
| Memory | Slot Count: 4 DIMM slots Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM Max Memory (2DPC): Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM |
| On-Board Devices (per Node) | |
| NVMe | U.2 NVMe (Native) |
| Chipset | AMD Knoll - Integrated I/O Controller Hub |
| Network Connectivity | No NIC option supported |
| Input / Output (per Node) | |
| NVMe | 2 U.2 NVMe |
| LAN | 2 |
| Video | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 KVM) |
| System BIOS | |
| BIOS Type | AMI 128MB SPI Flash EEPROM |
| Management | |
| Power Configurations | ACPI 6.0 Power Management Power-on mode for AC power recovery |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring | |
| CPU | 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. |
| FAN | Cooling zone |
| Temperature | Monitoring for CPU and chassis environment |
| Chassis | |
| Form Factor | 3U Rackmount |
| Model | CSE-938NH-R2K20BP2 |
| Dimensions and Weight | |
| Height | 5.21" (132mm) |
| Width | 17.26" (438mm) |
| Depth | 23.2" (589mm) |
| Package | 11.65" (H) x 26.26" (W) x 34" (D) |
| Weight | Net Weight: 62.2 lbs (28.21 kg) Gross Weight: 88 lbs (39.92 kg) |
| Available Color | N/A |
| Front Panel | |
| Buttons | Power On/Off |
| LEDs | 8 Individual Node Status Indicators Power Failure |
| Expansion Slots (per Node) | |
| PCI-Express (PCIe) | 1 PCIe 5.0 x16 LP slot(s) 1 PCIe 5.0 x8 MLP slot(s) |
| Drive Bays / Storage (per Node) | |
| Hot-swap | 2x 3.5" hot-swap NVMe/SAS/SATA drive bays 2 U.2 NVMe drive support Native |
| M.2 | 1 M.2 NVMe |
| System Cooling | |
| Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 8 Air Shroud(s) |
| Power Supply | 2200W Redundant Titanium Level power supplies |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
3U, 8-Node-Per-Chassis Flexible Architecture
Maximize resource savings through shared power and cooling with the following resources per node:
Supermicro H13 MicroCloud 3U 8-node systems featuring AMD EPYC™ 4005/4004 series processors supports 8 single-processor nodes containing up to 2 front-accessible NVMe drive bays, as well as a single 8-lane PCIe 5.0 low profile slot that can be used for GPU accelerators are ideal for dedicated hosting and small-medium businesses.
