SYS-520P-WTR

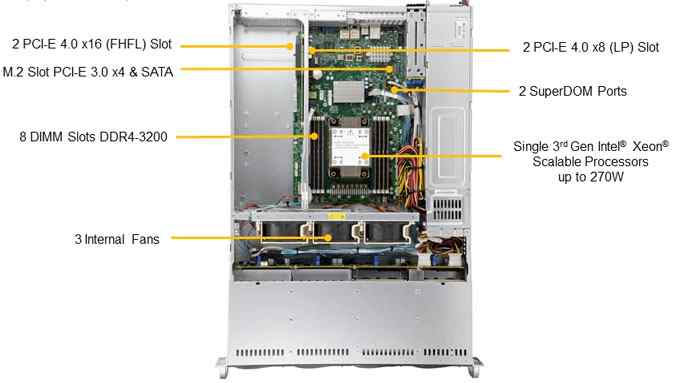

2U WIO Server. 8 hot-swap 3.5" SATA bays and 4 PCIe 4.0 slots
- Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
- 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
- 2 PCI-E 4.0 x16 (FHFL) slots, 2 PCI-E 4.0 x8 (LP) slots
- Intel® Ethernet Controller X550 2x 10GbE RJ45
- 8x hot-swap 3.5'' SATA3 drive bays, SAS3 with additional SAS controller card, Optional 2x 2.5'' Gen4 NVMe drives at rear; Onboard 1x NVMe/SATA M.2
- Redundant Platinum 650W Power Supply
Datasheet
Product Specification
| SYS-520P-WTR | SuperServer SYS-520P-WTR |
| Motherboard | Super X12SPW-TF |
| Processor/Cache | |
| CPU | Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 270W |
| System Memory | |
| Memory | Memory Capacity: 8 DIMM slots UP to 2TB: 8x 256 GB DRAM UP to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM Intel® Optane™ persistent memory 200 series |
| Memory Voltage | 1.25 V |
| Error Detection | Yes |
| On-Board Devices | |
| SATA | SATA3 (6Gbps); RAID 0/1/5/10 support |
| NVMe | NVMe; RAID 0/1 support |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| BMC | ASPEED AST2600 BMC |
| Input / Output | |
| SATA | 10 SATA (6Gbps) port(s |
| LAN | 1 RJ45 Dedicated IPMI LAN port 2 RJ45 10GBase-T LAN ports |
| USB | 4 USB 2 port(s) (2 headers; 2 rear) 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A |
| Video | 1 VGA port(s |
| Serial Port | 2 COM Port(s) (1 header; 1 rear |
| DOM | 2 Super DOM (Disk on Module) port with built-in power |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | IPMI2.0 Redfish API SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI |
| Power Configurations | ACPI/APM Power Management |
| PC Health Monitoring | |
| CPU | 7+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-825BTS-R609WP |
| Dimensions and Weight | |
| Height | 3.5" (89mm |
| Width | 17.2" (437mm |
| Depth | 25.5" (647mm |
| Package | 11" (H) x 26.5" (W) x 34" (D) |
| Weight | Net Weight: 34 lbs (15.42 kg) Gross Weight: 59 lbs (26.76 kg |
| Available Color | Black |
| Front Panel | |
| Buttons | Power On/Off System Reset |
| LEDs | Device Activity LAN 1 Activity LAN 2 Activity Power Failure LED Power status System information |
| Expansion Slots | |
| PCI-Express (PCI-E) | Slot 1: PCI-E 4.0 x16 FHFL Slot 2: PCI-E 4.0 x16 FHFL Slot 3: PCI-E 4.0 x8 LP Slot 4: PCI-E 4.0 x8 LP |
| Drive Bays / Storage | |
| Drive Bays | 8x 3.5" SATA drive bays (2x 2.5" NVMe dedicated |
| M.2 | 1x PCI-E 3.0 x 4 and SATAM-key, 2280, 22110 |
| Peripheral Bays | 2x 2.5" drive bays |
| System Cooling | |
| Fans | 3 heavy duty PWM 80x80x38mm Fan(s |
| Power Supply | Platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac. |
| Dimension (W x H x L) | 76 x 40 x 360 mm |
| Output Type | Gold Finger |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing |
