ASG-2115S-NE332R
2U front-loading all-flash storage server with 32 E3.S NVMe drives and PCIe 5.0
- Single Socket SP5 AMD EPYC™ 9004/9005 Series processor; up to 400WTDP
- Supports 24 DIMMs with 2DPC, up to 9TB memory capacity with 24 DIMMs of 384GB 3DS RDIMM/RDIMM DDR5 ECC memory

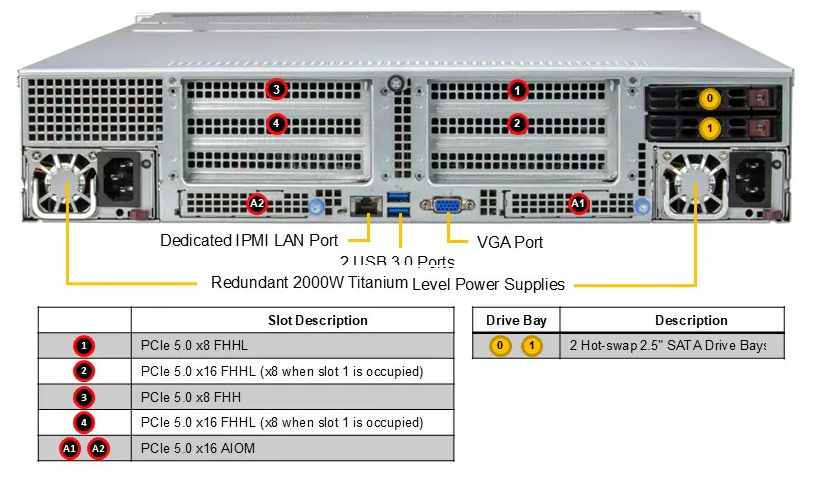

- 2 PCIe 5.0 x16 slots & 2 AIOM slots (OCP 3.0 SFF compliant)

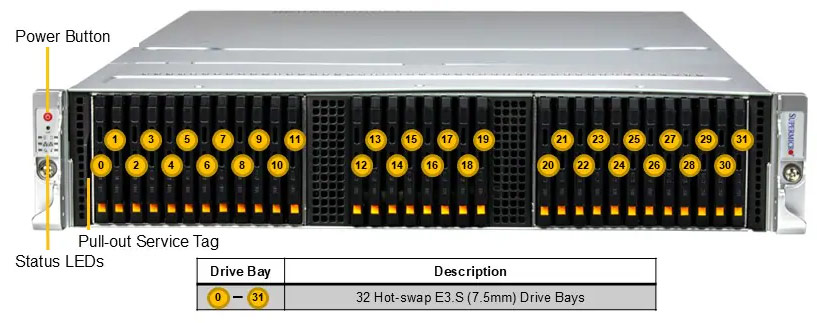

- 32 Hot-swap E3.S (7.5mm) NVMe PCIe5.0 x2 drive bays
- Redundant Titanium 2000W Power Supplies
Key Applications
- Software-defined Storage
- In-Memory Computing
- Data Intensive HPC
- Private & Hybrid Cloud
- NVMe Over Fabrics Solution
Datasheet
| Product SKUs | ASG-2117S7-NE332R |
| Motherboard | |
| Processor | |
| CPU | Single processor(s) AMD EPYC™ 9006 SP7 Series Processors |
| Core Count | Up to 256C/512T |
| Note | Supports up to 600W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | 1 double-width GPU |
| System Memory | |
| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 8000MT/s ECC DDR5 RDIMM/3DS RDIMM Max Memory (1DPC): Up to 4TB 12800MT/s ECC DDR5 MRDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| SAS | SAS (12Gbps) via Broadcom® 3808; RAID 0/1 support |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP) UEFI 2.8 USB Keyboard support ACPI 6.5 SMBIOS 3.7 or later |
| Management | |
| Software | SuperCloud Composer® (SCC) Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) KVM with dedicated LAN IPMI 2.0 Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! IPMIView |
| Power configurations | ACPI/APM Power Management Power-on mode control for AC power loss recovery Power button override mechanism, |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-256E3-R000NDP |
| Dimensions and Weight | |
| Height | 3.47" (88 mm) |
| Width | 17.25" (438 mm) |
| Depth | 30.7" (780 mm) |
| Package | 9.4" (H) x 23.5" (W) x 43.2" (D) |
| Weight | Gross Weight: 83.78 lbs (38 kg) Net Weight: 61.73 lbs (28 kg) |
| Available Color | Silver |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Option A* 2 PCIe 6.0 x16 (in x16) FHHL double-width slots 1 PCIe 6.0 x16 (in x16) FHFL double-width slot Option B* 1 PCIe 6.0 x16 (in x16) FHHL double-width slot 1 PCIe 6.0 x16 (in x16) FHFL double-width slot Default 2 PCIe 6.0 x16 (in x16) FHHL double-width slots 1 PCIe 6.0 x16 (in x16) AIOM slot (OCP 3.0 compatible) (*Requires additional parts.) |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slots (M-key) |
| Drive Bays / Storage | |
| Drive Bays Configuration | Option A: Total 40 bays 40 front hot-swap E3.S 1T PCIe 6.0 x2 NVMe drive bays Option B: Total 40 bays 40 front hot-swap E3.L 1T PCIe 6.0 x2 NVMe drive bays Option C: Total 24 bays 24 front hot-swap E3.S 1T PCIe 6.0 x4 NVMe drive bays Option D: Total 24 bays 24 front hot-swap E3.L 1T PCIe 6.0 x4 NVMe drive bays |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110) |
| System Cooling | |
| Fans | 6 counter-rotating 60x60x56mm Fan(s) |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
| 2x 2000W | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
