ASG-1014S-ACR12N4H
1U UP internal-mounted storage server with 12 hot-swap 3.5" SAS/SATA + 4 7mm 2.5" U.2 NVMe
- Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
- 16 DIMMs; Up to 4TB 3DS ECC Registered DDR4-3200MHz RDIMM/LRDIMM
- 2 PCI-E 4.0 x16 (FHHL) Slots, 1 PCI-E 4.0 x16 (LP) Slot
- 2x 10GBase-T LAN Ports via Broadcom BCM57416 Controller

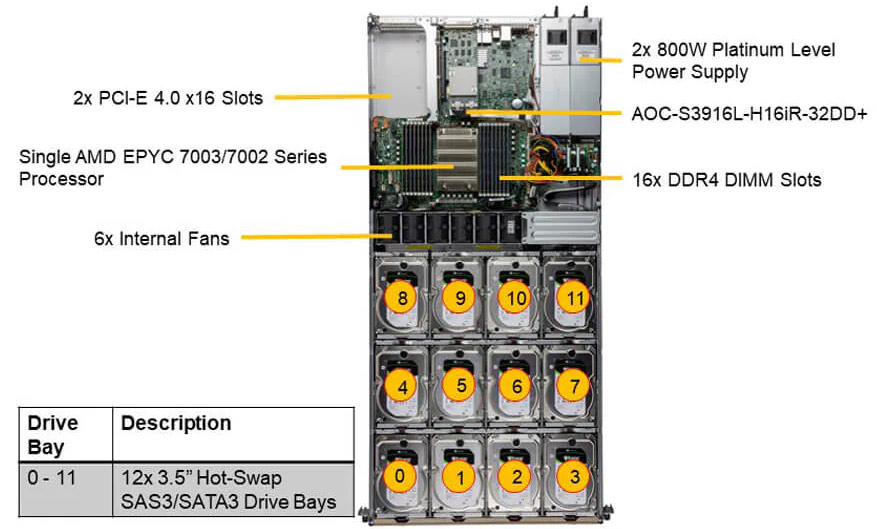

- 12x 3.5" SAS3/SATA3 Hot-Swap Drive Bays, 4x 2.5" 7mm U.2 NVMe Hot-Swap Drive Bays
Datasheet
Product Specification
| ASG-1014S-ACR12N4H | A+ Server ASG-1014S-ACR12N4H |
| Motherboard | Super H12SSW-NTR |
| Processor | |
| CPU | Single Socket SP3 AMD EPYC™ 7003/7002 Series Processor Support CPU TDP 120-240W |
| System Memory | |
| Memory | Memory Capacity: 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | 2x 10GbE BaseT with Broadcom |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
| LAN | 1 RJ45 Dedicated IPMI LAN port 2 RJ45 10GBase-T LAN Ports |
| USB | 2 USB 2.0 port(s) (2 Front_USB) 4 USB 3.0 port(s) (4 Rear_USB) |
| Video | 1 VGA port(s) |
| Serial Port | 1 Serial |
| System BIOS | |
| BIOS Type | AMI 256MB SPI Flash EEPROM |
| Management | |
| Software | KVM with dedicated LAN SUM IPMI 2.0 Watch Dog SuperDoctor® 5 |
| Power Configurations | ACPI / APM Power Management |
| PC Health Monitoring | |
| CPU | 4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-802TS-R804WBP |
| Dimensions and Weight | |
| Height | 1.7" |
| Width | 17.6" |
| Depth | 37" |
| Package | 12" (H) x 27" (W) x 53.15" (D) |
| Weight | Net Weight: 39.5 lbs (17.9 kg) Gross Weight: 58 lbs (26.3 kg) |
| Available Color | Black |

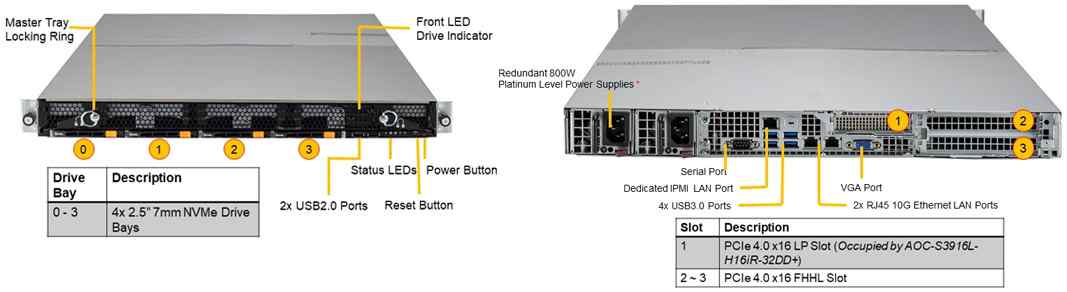

| Front Panel | |
| Buttons | Power On/Off |
| LEDs | HDD activity Network activity Power status System information (overheat/UID) |
| Expansion Slots | |
| PCI-Express (PCI-E) | Slot 1: PCI-E 4.0 x16 LP Slot 2: PCI-E 4.0 x16 FP Slot 3: PCI-E 4.0 x16 FP |
| Drive Bays / Storage | |
| Hot-swap | 12x 3.5" hot-swap SATA3/SAS3 drive bays 4x 2.5" 7mm drive bays |
| M.2 | 2 M.2 NVMe M-Key, 22110 |
| Backplane | |
| HDD Backplane | Supports 12 SAS3 |
| System Cooling | |
| Fans | 6 Heavy Duty 4cm Fan(s) |
| Power Supply | 800W Redundant Power Supplies with PMBus |
| Dimension (W x H x L) | 54.5 x 40 x 220 mm |
| AC Input | 100-127Vac / 50-60Hz 200-240Vac / 50-60Hz |
| DC Input | 230-240Vdc |
| +12V | Max: 62.5A / Min: 0A (100Vac-127Vac) Max: 66.6A / Min: 0A (200Vac-240Vac) Max: 66.6A / Min: 0A (230Vdc-240Vdc) |
| 5V SB | Max: 4A / Min: 0A |
| Output Type | Gold Finger Connector |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
