SSG-522B-ACR12H

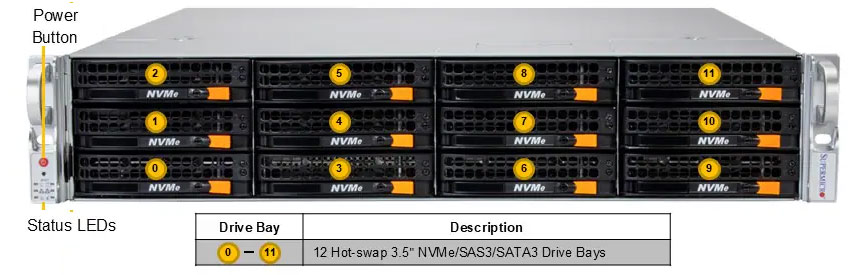

2U UP front-loading storage server with 12 direct-attached hot-swap 3.5" SAS/SATA/NVMe bays (SAS hardware RAID) and PCIe 5.0
- HW RAID by Broadcom® SAS3916 on both front and rear drive bays
- Single Intel® Xeon® 6700/6500 series processor up to 350W TDP
- Up to 2TB DDR5-6400MT/s ECC Registered in 8 DIMM slots (1DPC)
- 2 onboard 10GbE ports via Intel® X550 and 1 GbE port for BMC via Aspeed AST2600
- Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots *
* Slot 1 is occupied by system's default controller - 2U all hybrid hot-swap NVMe/SAS3/SATA3 front(3.5" x 12) and rear(2.5" x 2) drive bays *
* up to total 12 NVMe ports in the system - 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Key Applications
- General Purpose Computing
- Data Center Enterprise Applications
- iSCSI SAN
- Database Processing & Storage
- Corporate Database
- Appliance Optimized Storage Building Blocks
Datasheet
Product Specification
| Product SKU | SuperServer SSG-522B-ACR12H |
| Motherboard | Super X14SBI-TF |
| Processor | |
| CPU | Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Core Count | P-cores: Up to 86C/172T; Up to 336MB Cache E-cores: Up to 144C/144T; Up to 108MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| System Memory | |

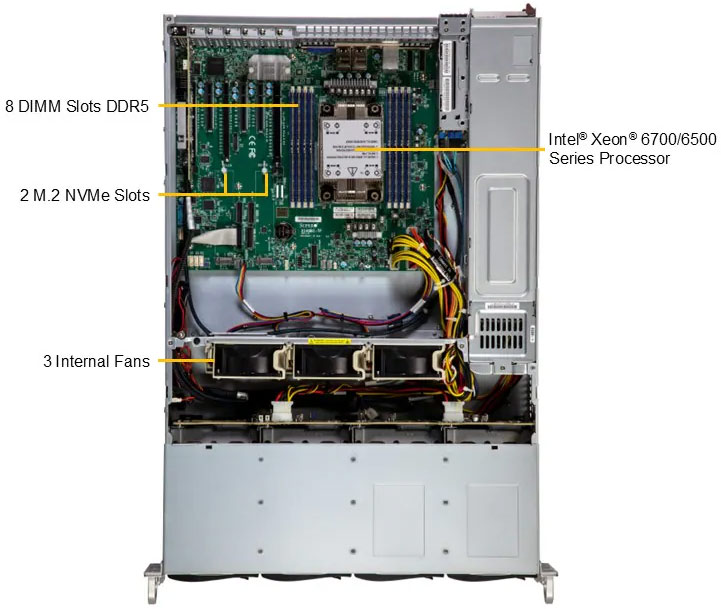

| Memory | Slot Count: 8 DIMM slots/8 Channels Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| SATA | 4 x SlimSAS |
| SAS | SAS (12Gbps) via Broadcom® 3916; RAID 0/1/5/6/10/50/60 support |
| NVMe | NVMe; RAID 0/1 support(Intel® VROC RAID key required) |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE with Intel® X550 |
| Input / Output | |
| LAN | 2 RJ45 10 GbE LAN ports (Intel® X550) 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) |
| USB | 2 USB 3.2 Gen1 ports(Header) 2 USB 3.2 Gen1 ports(Rear) |
| Video | 1 VGA port(Rear) |
| Serial | 1 COM port(header) |
| TPM | 1 TPM header |
| System BIOS | |
| BIOS Type | AMI 64MB UEFI |
| BIOS Features | ACPI 6.5 SMBIOS 3.7 or later UEFI 2.9 |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI/APM Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown Runtime BMC Protections Supply Chain Security: Remote Attestation |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 8 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-826BTS-R1K23LPBP2 |
| Dimensions and Weight | |
| Height | 3.5" (89 mm) |
| Width | 17.2" (437 mm) |
| Depth | 25.6" (650 mm) |
| Package | 11.5" (H) x 26.5" (W) x 34" (D) |
| Weight | Gross Weight: 58 lbs (26.3 kg) Net Weight: 34 lbs (15.4 kg) |
| Available Color | Black |
| Front Panel | |
| LED | Device Activity LAN 1 Activity LAN 2 Activity Power Failure LED Power status System information |
| Buttons | Power On/Off System Reset |
| Expansion Slots | |

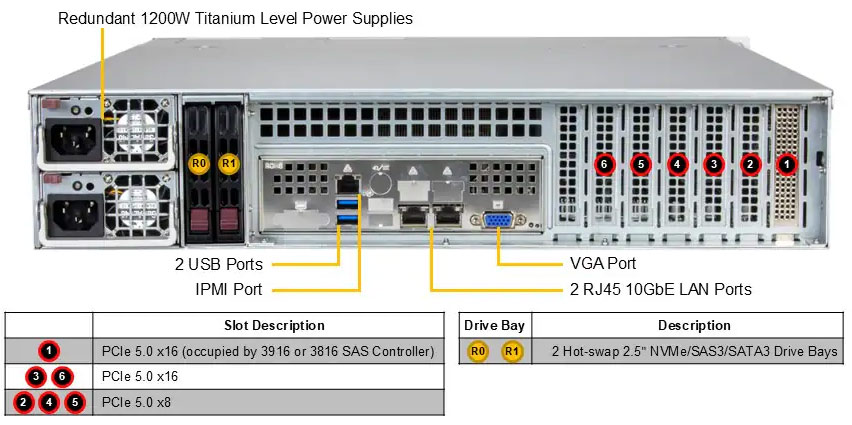

| PCI-Express (PCIe) Configuration | Default 3 PCIe 5.0 x16 (in x16) LP slots 3 PCIe 5.0 x8 (in x8) LP slots |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 14 bays 12 front hot-swap 3.5" NVMe*/SAS/SATA drive bays 2 rear hot-swap 2.5" NVMe*/SAS/SATA drive bays (*NVMe support may require additional storage controller and/or cables) |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)) |
| System Cooling | |
| Fans | 3 Heavy Duty PWM 80x80x38mm Fan(s) |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
| 2x 1200W | 2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
