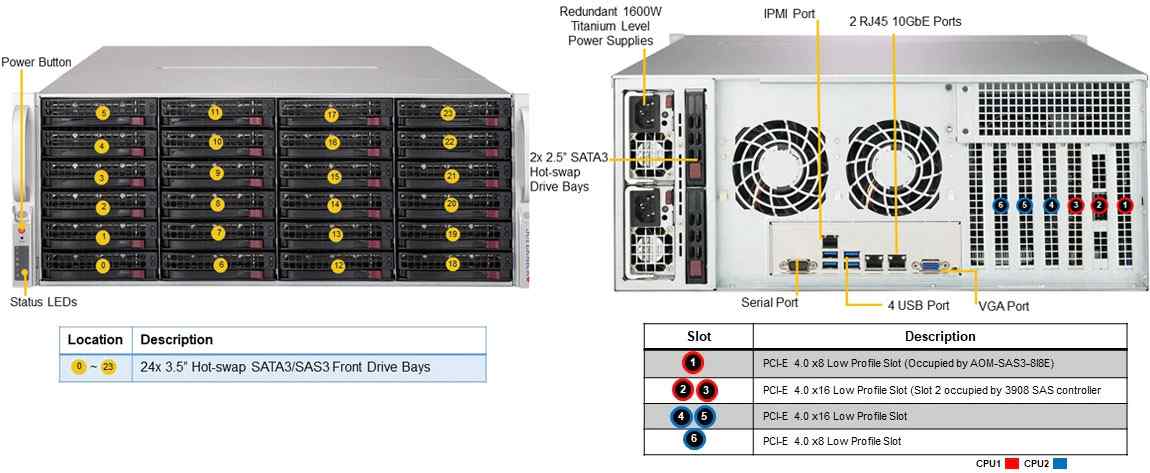

SSG-640P-E1CR24H
4U front-loading storage server with 24 hot-swap 3.5" SAS/SATA bays (SAS hardware RAID) and PCIe 4.0
- Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
- 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
- 2x 10Gbe
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
- 24 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots, 1x SATA/NVMe M.2 (form factor: 2280 and 22110)
- 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
- 1200W Redundant Power Supplies Titanium Level (96%)
- HW RAID support via Broadcom® 3908
Datasheet
Product Specification
| SSG-640P-E1CR24H | SuperServer SSG-640P-E1CR24H |
| Motherboard | Super X12DPi-NT6 |
| Processor/Cache | |
| CPU | Dual Socket P+ (LG-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 120-270W |
| System Memory | |
| Memory | Memory Capacity: 16 DIMM slots UP to 18TB: PMem UP to 4TB: 16x 256 GB DRAM Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM;DCPMM Intel® Optane™ persistent memory 200 series |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices | |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| BMC | ASPEED AST2600 BMC |
| Input / Output | |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| USB | 4 USB 3 port(s) (4 Rear_USB) |
| Video | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 rear) |
| DOM | 2 Super DOM (Disk on Module) port |
| System BIOS | |
| BIOS Type | AMI 128MB SPI Flash EEPROM |
| Management | |
| Software | IPMI 2.0 SUM NMI Watch Dog SuperDoctor® 5 |
| Power Configurations | ACPI Power Management Power-on mode for AC power recovery |
| PC Health Monitoring | |
| CPU | 4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 4U Rackmount |
| Model | CSE-846BE1C-R1K23B |
| Dimensions and Weight | |
| Height | 7" (138mm) |
| Width | 17.2" (437mm) |
| Depth | 26.5" (673mm) |
| Package | 15" (H) x 27" (W) x 39" (D) |
| Weight | Net Weight: 55 lbs (24.9 kg) Gross Weight: 92 lbs (41.7 kg) |
| Available Color | Silver |
| Front Panel | |
| Buttons | Power On/Off |
| LEDs | HDD activity Network activity Power status System information (overheat/UID) |
| Expansion Slots | |
| PCI-Express (PCI-E) | Slot 1: PCI-E 4.0 x8 LP Slot 2: PCI-E 4.0 x16 LP Slot 3: PCI-E 4.0 x16 LP Slot 4: PCI-E 4.0 x16 LP Slot 5: PCI-E 4.0 x16 LP Slot 6: PCI-E 4.0 x8 LP |
| Drive Bays / Storage | |
| Hot-swap | 24x 3.5" hot-swap NVMe/SATA/SAS drive bays |
| M.2 | 1 M.2 NVMe |
| System Cooling | |
| Fans | 5 Heavy Duty 8cm Fan(s) |
| Power Supply | 1200W Redundant Power Supplies with PMBus |
| Dimension (W x H x L) | 76 x 40 x 360 mm |
| AC Input | 100-127Vac / 12A-15A / 50-60Hz 200-240Vac / 7A-8.5A / 50-60Hz |
| DC Output | 200-240Vdc CCC only/ 7A-8.5A / 50-60Hz |
| Output Type | 19 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
