SSG-542B-CE1CR60L
4U Storage server with 60 hot-swap 3.5" SAS/SATA bays and PCIe 5.0
- HBA by Broadcom® SAS3816 on main drive bays
- Onboard Trusted Platform Module 2.0 via Infineon TPM 9672
- Single Intel® Xeon® 6700/6500 series processor up to 350W TDP
- Up to 2TB DDR5-6400MT/s registered ECC in 8 DIMM slots (1DPC)
- 2 onboard 10GbE ports via Intel® X550 and 1 GbE port for BMC via Aspeed AST2600

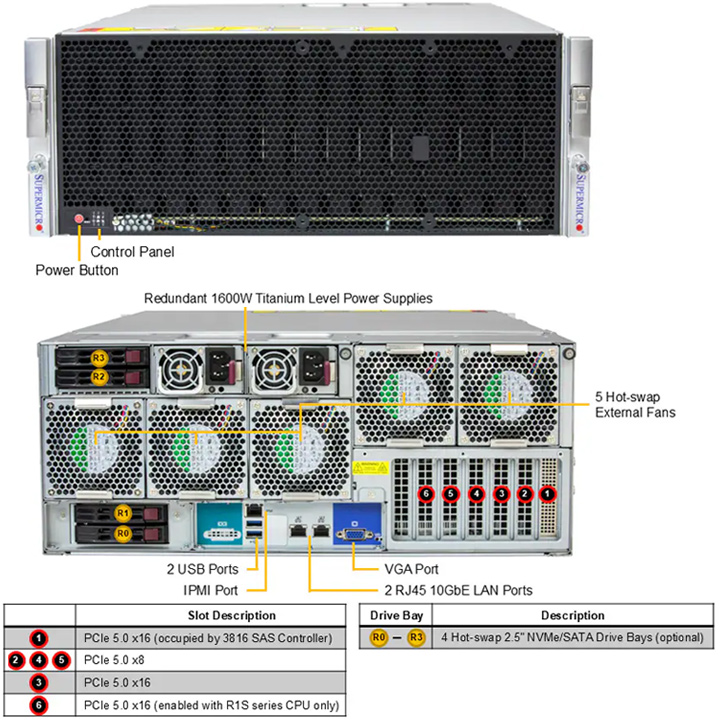

- Six total PCIe slots: 3 PCIe 5.0 x8 + 3 PCIe 5.0 x16 slots *
- * Slot 1 is occupied by system's default controller
- Up to 60 top-loading hot-swap 3.5" SAS/SATA drive bays
- Optional 4 hot-plug NVMe or SATA SSDs
- 2 Redundant 1600W Titanium Level Hot-plug power supplies
Key Applications
- Database Applications
- Backup Storage, Cold Storage
- Data Warehousing, Archiving
Datasheet
| Product SKUs | SSG-542B-CE1CR60L |
| Motherboard | Super X14SBI-TF |
| Processor | |
| CPU | Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Core Count | P-cores: Up to 86C/172T; Up to 336MB Cache E-cores: Up to 144C/144T; Up to 108MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| System Memory | |
| Memory | Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| SATA | SATA (6Gbps) |
| NVMe | NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) |
| Chipset | intel System on Chip |
| Network Connectivity | 2 RJ45 10GBASE-T with Intel® X550 |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports |
| USB | 2 USB 3.2 Gen1 ports(Header) 2 USB 3.2 Gen1 ports(Rear) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
| System BIOS | |
| BIOS Type | AMI 64MB UEFI |
| BIOS Features | ACPI 6.5 SMBIOS 3.7 or later UEFI 2.9 |
| Management | |
| Software | SuperCloud Composer® (SCC) Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI/APM Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown Runtime BMC Protections Supply Chain Security: Remote Attestation |
| PC Health Monitoring | |
| CPU | 8 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI |
| Certifications | |
| Operating Systems | RHEL 10.0, Windows Server 2022, Windows Server 2025 |
| Chassis | |
| Form Factor | 4U Rackmount |
| Model | CSE-946STS-R1K63LPP |
| Dimensions and Weight | |
| Height | 7" (178 mm) |
| Width | 17.2" (437 mm) |
| Depth | 26" (767.08 mm) |
| Package | 33.25" (H) x 28" (W) x 42.5" (D) |
| Weight | Gross Weight: 169.5 lbs (76.9 kg) Net Weight: 117 lbs (53 kg) |
| Available Color | Black |
| Front Panel | |
| Buttons | Power On/Off button Unit Identification (UID) button |
| LED | Network activity LEDs Power Fail LED Power status LED System Information LED |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 3 PCIe 5.0 x16 (in x16) LP slots 3 PCIe 5.0 x8 (in x8) LP slots |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 60 bays 60 top-loading hot-swap 3.5" SAS/SATA drive bays Option A: Total 4 bays 4 rear hot-swap 2.5" PCIe 5.0 x8 NVMe* drive bays Option B: Total 4 bays 4 rear hot-swap 2.5" SATA* drive bays (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)) |
| System Cooling | |
| Fans | Up to 5 Heavy Duty 8cm Fan(s) |
| Air Shroud | 1 Air Shroud |
| Power Supply | 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% () Non-operating Relative Humidity: 5% to 95% () |
