SYS-222BT-HNR-LCC
2U 4-Node BigTwin Server with 6 hot-swap 2.5" NVMe drives per node
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores up to 350W with liquid cooling
- Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC
- Flexible networking with up to 1 OCP 3.0 compatible AIOM slots
- Up to 2 PCIe 5.0 x16 LP + 1 PCIe 5.0 x16 AIOM slots

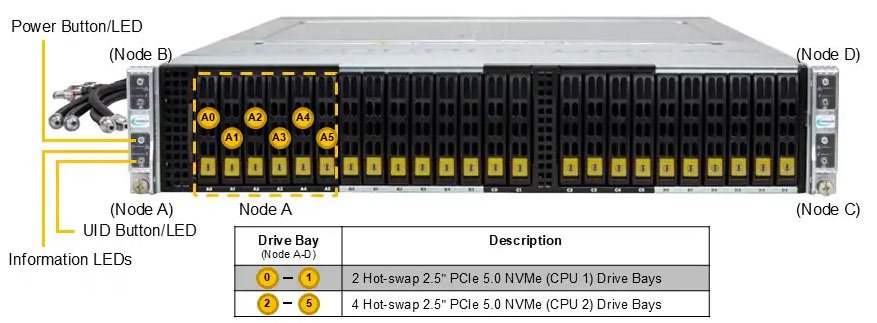

- Up to 6 front hot-swap 2.5" NVMe drive bays
- 2 Redundant 3600W Titanium Level power supplies
- 2U Rackmount chassis with 28.75" (730mm) depth
Key Applications
- All-Flash NVMe Hyperconverged Infrastructure
- Container-as-a-Service; Application Accelerator
- High-Performance File System
- Diskless HPC Clusters
Datasheet
Product Specification
| Product SKU | Superserver SYS-222BT-HNR-LCC |
| Motherboard | Super X14DBT-B |
| Processor | |
| CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Core Count | P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU |
| Note | Supports up to 350W TDP CPUs (Liquid Cooled) |
| System Memory (per Node) | |

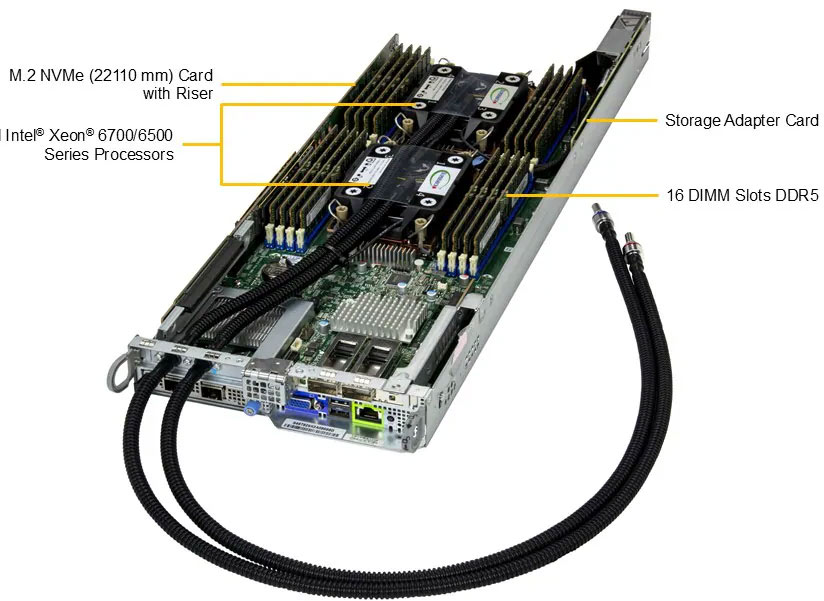

| Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices (per Node) | |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| Input / Output (per Node) | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 Gen2 Type-A ports(Rear) |
| Video | 1 VGA port |
| System BIOS | |
| BIOS Type | AMI 32MB Flash ROM |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI/APM Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 8+4 Phase-switching voltage regulator |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-217BQ2-R3K60P |
| Dimensions and Weight | |
| Height | 3.47" (88 mm) |
| Width | 17.68" (449 mm) |
| Depth | 28.75" (730 mm) |
| Package | 9.76" (H) x 24.65" (W) x 45.28" (D) |
| Weight | Gross Weight: 96.6 lbs (43.8 kg) Net Weight: 66.1 lbs (30 kg) |
| Available Color | Black front & silver body |
| Front Panel | |
| LED | HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED |
| Buttons | Power On/Off button UID button |
| Expansion Slots (per Node) | |

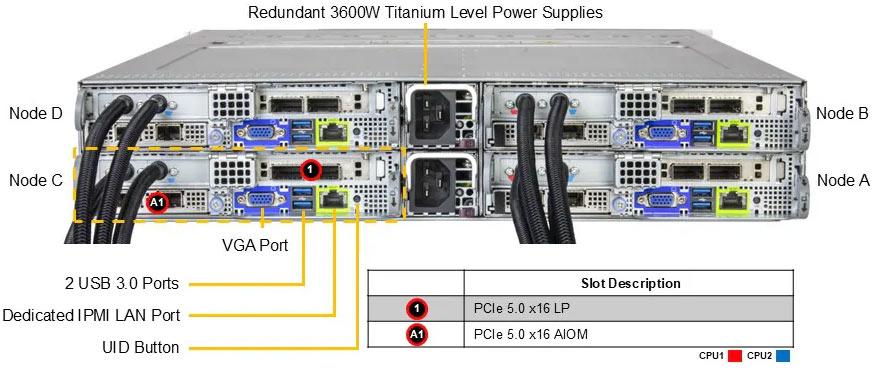

| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A 2 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Drive Bays / Storage (per Node) | |
| Drive Bays Configuration | Default: Total 6 bays 6 front hot-swap 2.5" PCIe 5.0 NVMe drive bays |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID) |
| System Cooling | |
| Fans | 4x 16K RPM Counter Rotating 80x80x56mm Fan(s) |
| Air Shroud | 4 Air Shrouds |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate |
| Power Supply | |
| 2x 3600W | 2x 3600W Redundant (1 + 1) Titanium Level (96%) power supplies |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
