AS-1127FT7-DEO-ALC
Liquid-cooled 1U 2-node FlexTwin™ server featuring Dual AMD EPYC™ 9006 processors

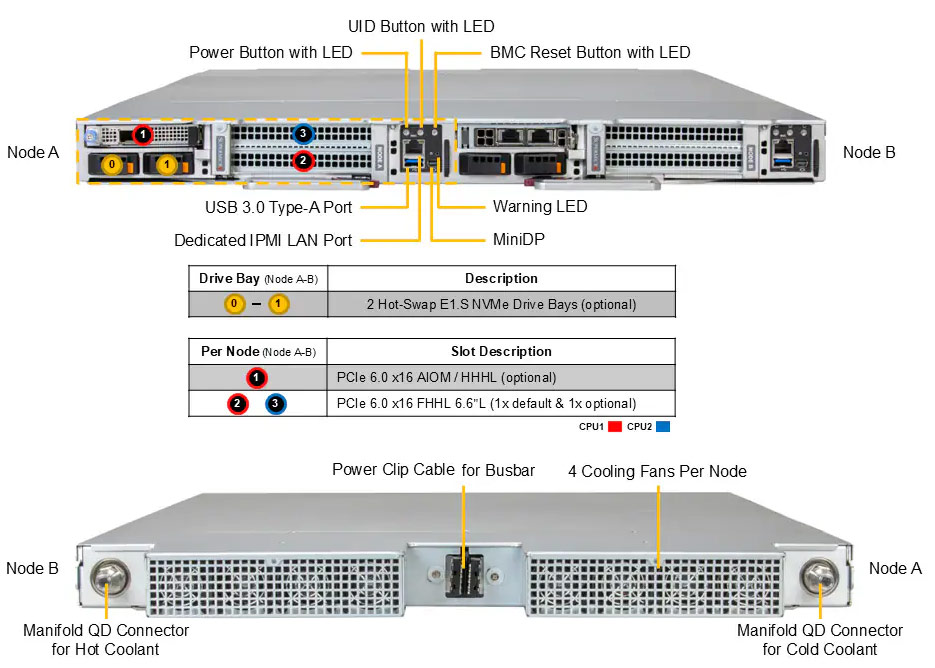

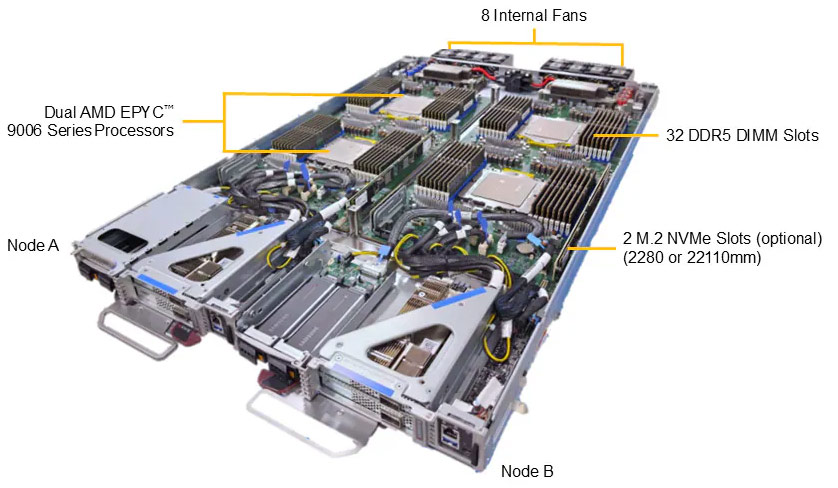

- Dual Socket AMD EPYC™ 9006 SP7 Series Processors up to 512 cores with Liquid Cooling
- Supports up to 2 PCIe 6.0 x16 FHHL + 1 PCIe 6.0 x16 HHHL + 1 PCIe 6.0 x16 AIOM slots
- Supports up to 32 DDR5 RDIMMs/MRDIMMs
- Flexible networking with 1 AIOM slot (OCP 3.0 SFF compliant)
- 2 Hot-swap E1.S NVMe drive bays + 2 M.2 NVMe slots
48-54V DC busbar
Key Applications
- Oil & Gas
- Scientific Research
- High Performance Computing (HPC
- Research Lab
Datasheet
| Product SKUs | AS -1127FT7-DEO-ALC |
| Motherboard | Super H15DPT-F |
| Processor (per Node) | |
| CPU | Dual processor(s) AMD EPYC™ 9006 SP7 Series Processors |
| Core Count | Up to 512C/1024T |
| Note | Supports up to 600W TDP CPUs (Liquid Cooled) |
| System Memory (per Node) | |
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 8TB 8000MT/s ECC DDR5 RDIMM/3DS RDIMM Max Memory (1DPC): Up to 8TB 12800MT/s ECC DDR5 MRDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices (per Node) | |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output (per Node) | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 1 USB 3.0 Type-A port (Front) |
| Video | 1 mini-DP port |
| TPM | 1 TPM header |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP) UEFI 2.8 USB Keyboard support ACPI 6.5 SMBIOS 3.7 or later |
| Management | |
| Software | Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) KVM with dedicated LAN IPMI 2.0 Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI/APM Power Management Power-on mode control for AC power loss recovery Power button override mechanism, |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Chassis | |
| Form Factor | 1-OU Rackmount |
| Model | CSE-OC101TS-V01DFP |
| Dimensions and Weight | |
| Height | 1.89" (48 mm) |
| Width | 21.14" (537 mm) |
| Depth | 33.66" (855 mm) |
| Package | 7.17" (H) x 26.38" (W) x 44.29" (D) |
| Weight | Gross Weight: 89 lbs (40.37 kg) Net Weight: 58.5 lbs (26.54 kg) |
| Available Color | Silver |
| Front Panel | |
| Buttons | Power On/Off UID button |
| LED | Power status UID |
| Expansion Slots (per Node) | |
| PCI-Express (PCIe) Configuration | Default 1 PCIe 6.0 x16 FHHL slot Option A* 1 PCIe 6.0 x16 FHHL slot 1 PCIe 6.0 x16 HHHL slot Option B 1 PCIe 6.0 x16 FHHL slot 1 PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible) Option C 2 PCIe 6.0 x16 FHHL slots 1 PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible) (*Requires additional parts.) |
| CXL Support | Up to 2 CXL 3.1 x16 devices |
| Drive Bays / Storage (per Node) | |
| Drive Bays Configuration | Option A: Total 2 bays 2 front hot-swap E1.S NVMe drive bays |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110) |
| System Cooling | |
| Fans | 8 counter-rotating 40x40x56mm Fan(s) |
| Air Shroud | 1 Air Shroud |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate |
| Power Supply | |
| Power via Busbar (48-54V DC) | Power via Busbar (48-54V DC) |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
