SYS-532AW-C
UP mid-tower workstation supports Intel® Core™ Ultra 9/7/5 Processors up to 125W with air cooling or optional liquid cooling
- Intel® Core™ Ultra 9/7/5 Processors up to 125W with air cooling or optional liquid cooling
- Supports for up to 1 double-width or triple-width GPU
- Supporting up to 192GB DDR5-5600
- 1 HDMI 2.1*, 1 DP 2.1**, 1 Thunderbolt™ 4.0 Type-C® *Supports data rates of up to 10 Gbps
- 2 PCIe NVMe M.2 and 2 PCIe 4.0 NVMe U.2
- 2 PCIe 5.0 x16 FHFL + 1 PCIe 4.0 x4 slots
- 1 RJ45 2.5GbE + 1 RJ45 1GbE (AMT/vPro)
- 1 1000W Gold Level Power Supply
Key Applications
- Designed for CAD and 3D Modeling Applications
- 2D/3D Content Creation
- VR Content Development
Datasheet
| Product SKUs | SuperWorkstation SYS-532AW-C |
| Motherboard | Super X14SAE |
| Processor | |
| CPU | Single LGA-1851 Intel® Core™ Ultra 9/7/5 (Series 2) processors |
| Core Count | Up to 24C/24T; Up to 36MB Cache |
| Note | Supports up to 125W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | Up to 1 triple-width or 1 double-width GPU |
| Supported GPU | NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition, RTX 5000 Ada, RTX 6000 Ada Generation NVIDIA: GeForce RTX 5070, GeForce RTX 5080, GeForce RTX 509 |
| System Memory | |
| Memory | Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| SATA | SATA (6Gbps) via Intel® W880; RAID 0/1/5/10 support |
| Chipset | Intel® W880 |
| Network Connectivity | 1 RJ45 1GbE with Intel® I219-LM 1 RJ45 2.5GbE with Intel® I226-LM |
| Input / Output | |

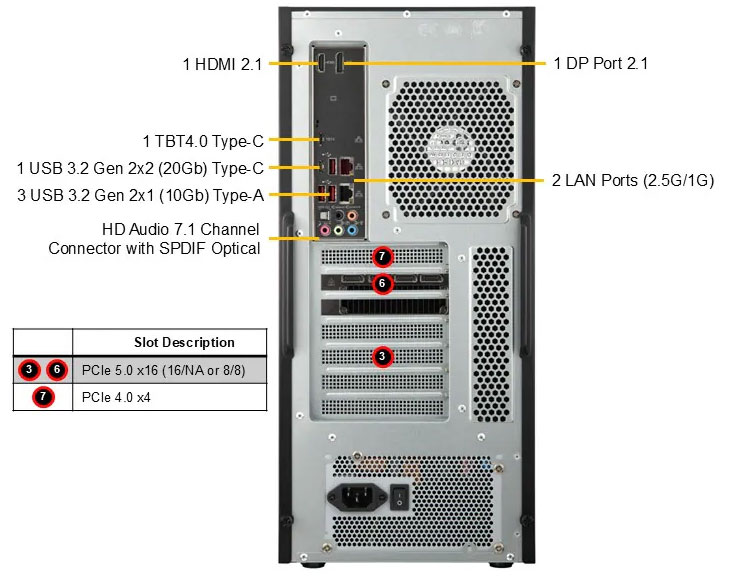

| USB | 2 USB 3.2 Gen1 Type-A ports(front) 3 USB 3.2 Gen2 Type-A ports(Rear) 1 USB 3.2 Gen2 Type-C port(Rear) 1 USB 3.2 Gen2 Type-C port(Front) 1 Thunderbolt™ 4 Type-C port(Rear) |
| Video | 1 HDMI 2.1 port(Rear) 1 DisplayPort 2.1 port(Rear) |
| Audio | 7.1 HD Audio |
| TPM | 1 TPM Onboard TPM & TPM Header |
| System BIOS | |
| BIOS Type | AMI 256MB SPI Flash |
| Management | |
| Software | Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) |
| Power configurations | ACPI 6.0 Power Management |
| Security | |
| Features | Cryptographically Signed Firmware Secure Boot |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring | |
| Voltage | +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature |
| Chassis | |
| Form Factor | Mid-Tower |
| Model | CSE-GS3A-000NBP |
| Dimensions and Weight | |
| Height | 17.72" (450 mm) |
| Width | 8.07" (205 mm) |
| Depth | 18.5" (470 mm) |
| Package | 24.29" (H) x 12.8" (W) x 23.23" (D) |
| Weight | Gross Weight: 19.2 lbs (8.7 kg) Net Weight: 14.1 lbs (6.4 kg) |
| Available Color | Black |
| Front Panel | |
| Buttons | Power On/Off |
| LED | HDD activity Power status LED |
| Port | Audio Jack-Combo microphone input / audio output port USB Type-A Ports-USB 3.2 Gen 1X1 ports (5G) USB Type-C-USB 3.2 Gen 2X2 port (20G) |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 4.0 x4 (in x4) FHHL slot Option A 1 PCIe 5.0 x16 (in x16) FHFL slot 1 PCIe 4.0 x4 (in x4) FHHL slot |
| M.2 | 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280(default)) 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 22110(default)/2280) |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 6 bays 2 internal fixed 3.5"/2.5" SATA drive bays 4 internal fixed 2.5" NVMe*/SATA drive bays (*NVMe support may require additional storage controller and/or cables) |
| M.2 | 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 22110(default)/2280) 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280(default)) |
| System Cooling | |
| Fans | Up to 4x 120mm Fan(s) |
| Power Supply | |
| Power Supply | 1x 1000W Gold Level (90%) power supply |
| Dimension (WxHxL) | 150 x 86 x 140 mm |
| Input | 1000W: 100-240Vac / 47-63Hz |
| +12V | Max: 83.3A / Min: 0A (100Vac-240Vac) |
| 5V SB | Max: 3A / Min: 0A |
| Output Type | 24pin ATX |
| Certification | Gold Level |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
