AD-ARK-1222
Intel N97 and x7433RE Quad Core SoC with dual HDMI, dual LAN, four COM DIN-Rail Fanless Box PC
- Intel N97 and x7433RE Quad Core SoC
- DIN-Rail system with essential I/O ports on front-side bezel
- Dual independent 4K HDMI
- 2 x Intel i226-IT and 4 x RS-232/422/485
- 2 x USB 3.2 and 2 x USB 2.0
- 8-bit Programmable GPIO
Industrial Intelligent Gateway: ARK-1222
The ARK-1222 is powered by Intel® Atom® x7433RE and Intel® Celeron® N97 quad-core processors and comes pre-installed with 16GB of DDR5 memory, offering reliable computing performance with high energy efficiency.
The system provides versatile I/O connectivity, including 2 x 2.5GbE, 4 x RS-232/422/485, multiple USB ports, and dual HDMI display outputs. Expansion options include mPCIe and M.2 slots, accommodating Wi-Fi, 5G, and the EAI-1200 Hailo AI accelerator. Engineered for harsh industrial environments, the ARK-1222 is built for long-term reliability in mission-critical applications. It is ideal for industrial automation, IoT gateway solutions, and edge AI deployments in demanding conditions. It supports smart city applications, such as intelligent traffic control, environmental monitoring, and public safety systems.
ARK-1200 DIN-Rail Series
ARK Edge Computers engineered for stability, expandability, and security, ARK platforms offer perfect fit I/Os and protocol support, AI-ready computing power add-on, and global certifications. The ARK series ensures reliable performance suited to vertical market applications, accelerating intelligent Edge transformation.

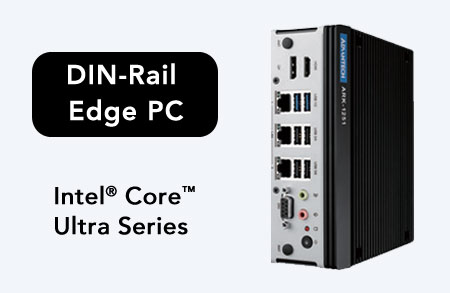

ARK-1251
Intel® Core™ Ultra Series 1 DIN-Rail Edge Computer
- Intel® Core™ Ultra Series 1, 7-155U, 5-125U, up to 96GB DDR5
- HDMI, DP, CE-RED certified for Wi-Fi
- 3x GbE, 2x USB3, 4x USB2, 4x COM, DIO, Audio
- 3x M.2, idoor, Optional CANbus
- -20 ~ 60° C, 12~28VDC, 60 x 173x 141mm, 1.5 kg

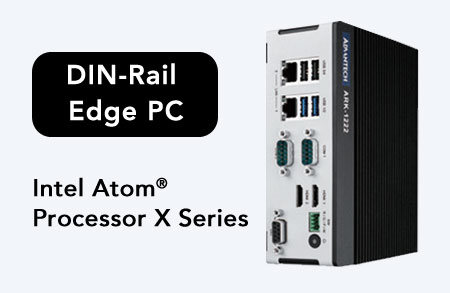

ARK-1222
Intel Atom® Processor X Series DIN-Rail Edge Computer
- Intel® i3-N305/N97/x7433RE, up to 16GB DDR5, CE-RED certified for Wi-Fi
- 2x HDMI 2.0
- 2x GbE, 2x USB3, 2x USB2, 4x COM, DIO, Audio
- 2x M.2, idoor, Optional CANbus
- -20 ~ 60° C, 12~28VDC, 60 x 158 x 114mm, 0.94 kg

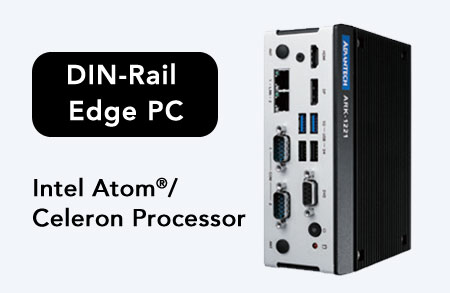

ARK-1221L
Intel Atom®/Celeron DIN-Rail Edge Computer
- Intel® x6413E/N6210/J6412, up to 32GB DDR4
- HDMI, DP
- 2x GbE, 2x USB3, 2x USB2, 2x COM, DIO, Audio
- 2x M.2, Optional CANbus
- -20 ~ 60° C, 12~28VDC, 60 x 158 x 114mm, 1.05 kg
