AD-ARK-2252
Intel® Core Ultra processor with 4x LAN, 6x COM, 2x HDMI, 1x type C, 6x USB
- Intel® Core™ Ultra series 3 Panther Lake Processor
- DDR5-6400/7200 CSODIMM memory support up 128G
- M.2 E Key, B Key and M Key for storage and wireless module installation
- Up to 4 x Intel GbE, 6 x serial ports, 8-bit DIO, 2xCANBus, 4 x USB 3.2 and 2 x USB 2.0
- TPM on board for system security
- 3 displays with 2 x 4K HDMI, 1x4K typeC
- -20 ~ 60 °C extended operating temperature
- 12V~24V wide range power input
- Support Advantech idoor, POE module, or GMSL camera
Datasheet
ARK-2000 Slim and Modular Series
ARK Edge Computers engineered for stability, expandability, and security, ARK platforms offer perfect fit I/Os and protocol support, AI-ready computing power add-on, and global certifications. The ARK series ensures reliable performance suited to vertical market applications, accelerating intelligent Edge transformation.
ARK-2252
Intel® Core™ Ultra 3 Series Modular Edge Computer
- Intel® PTL-H404/ H484, up to 128GB DDR5
- 2x HDMI, Type-C (ALT)
- 4x GbE, 4x USB3, 2x USB2, USB-C, 6x COM, 2x CAN, GPIO, Audio
- M.2 3052 B-key, M.2 2230 E-key, M.2 2280 M-key, iDoor
- -20 ~ 60°C, 12~24V, 260 x 60 x 145mm, 2.5kg

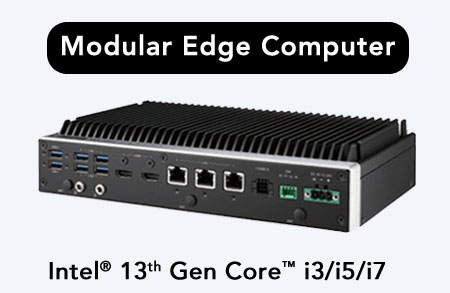

ARK-2251
Intel® Core™ i3/i5/i7 Modular Edge Computer
- Intel® 13th Gen, up to 64GB DDR5
- 2x HDMI
- 3x GbE, 6x USB3, 6x COM, 2x CAN, GPIO, Audio
- mPCIe, M.2 2230 E-key, M.2 2280 M-key, mSATA (shared with mPCIe), iDoor
- -20 ~ 60° C, 260 x 54 x 140.2mm, 2.3kg

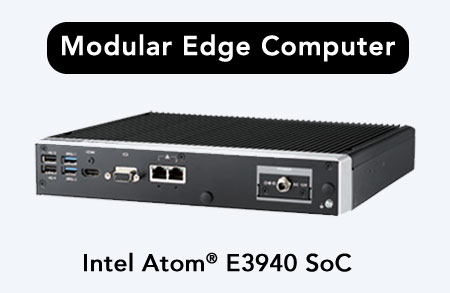

ARK-2232L
Intel Atom® E3940 SoC Modular Edge Computer
- Intel Atom® E3940, up to 8GB DDR3L
- VGA, HDMI
- 2x GbE, 2x USB3, 4x USB2, 4x COM, GPIO, Audio
- mPCIe, M.2 2230 E-key, 2.5” SSD, mSATA (shared with mPCIe), iDoor
- -20 ~ 60° C, 260 x 44 x 140.2mm, 1.9kg
