P-BCO-1000-ADLN_2L
BCO-1000-ADLN_2L Fanless Mini Computer with 12th Gen Intel® IoTG N97 Processor, 1x DP, 1x HDMI, 2x COM, 2x LAN, 1x 2.5" Drive Bay
- Support 12th Gen Intel® IoTG Alder Lake-N Processor N97, QC, 12W
- DDR5 4800/5600 MT/s SO-DIMM. Max. 32GB
- Dual Independent Display by 1x Display Port, 1x HDMI
- 2x 2.5GbE LAN
- 1x 2.5” SSD Drive Bay
- 1x M.2 B-Key (Default: 128GB SSD)
- 2x COM, 2x USB 3.2 Gen2, 2x USB 3.2 Gen1, 2x USB 2.0
- 9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature 0°C to 50°C
- TPM 2.0 Supported
- CE, FCC Class A
The powerful CPU performance positions it as an optimal choice for demanding industrial edge IoT applications, seamlessly providing cost-effective and deployment-ready solutions where reliability, speed, and integration are paramount.The BCO-1000-ADLN series, powered by the 12th Gen Intel® Core processor (Alder Lake-N97), strikes a balance between powerful performance and energy efficiency, making it ideal for industrial edge IoT applications. Its compact design, paired with the high-performance capabilities of the Alder Lake-N97 processor, ensures unmatched performance and reliability, catering to the diverse requirements of industrial environments.
With advanced features and a robust construction, this cutting-edge fanless mini computer seamlessly integrates into industrial setups, redefining the standards of industrial computing. Utilizing its advanced architecture, the BCO-1000-ADLN delivers faster performance, ensuring smoother operation, accelerated data processing, and overall enhanced efficiency.
| System | |
| Processor | Support 12th Gen Intel® IoTG Alder Lake-N Processor N97, QC, 12W |
| System Chipset | SoC integrated |
| LAN Chipset | 2x Intel® I225-V 2.5GbE LAN |
| Audio Codec | Realtek ALC897 |
| System Memory | DDR5 4800/5600 MT/s SO-DIMM. Max. 32GB |
| Graphics | Intel® UHD Graphics |
| BIOS | AMI UEFI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 1x DisplayPort 1.4a Max Resolution 4096 x 2304 @60Hz |
| HDMI | 1x HDMI 1.4b Max Resolution 3840 x 2160 @30Hz |
| Multiple Display | 2x Independent Displays |
| Storage | |
| M.2 B-Key | 1x M.2 B-Key slot (2242/2280/3042) Supports 1x PCIe x1 SATA signal, (Default 128GB SSD) Supports B+M Key SSD |
| SATA | 1 x 2.5” Drive Bay (7mm or 9mm) |
| Expansion | |
| M.2 E-Key | 1x M.2 E-Key (2230) Support PCIe x1 & USB 2.0; Support CNVi Devices Supported: Intel® AX210 Wi-Fi & BT (vPro Supported) |
| I/O | |
| Audio | Line-in/Line-out/Mic-in |
| COM | 2x DB9 COM1: RS232/422/485 COM2: RS232 |
| GPIO | 1x 8 GPIO |
| LAN | 2x RJ45 (2.5GbE) |
| USB | 2x USB 3.2 Gen2 2x USB 3.2 Gen1 2x USB 2.0 Type-A |
| Others | 2x Antenna Holes 1x Power button 1x HD LED 1x Power LED |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Linux Kernel |
| Power | |
| Power Adapter | Optional AC/DC 12V/5A, 60W |
| Power Mode | AT, ATX (Default ATX) |
| Power Supply Voltage | 9~36VDC |
| Power Connector | 3-pin Terminal Block |
| Environment | |
| Operating Temperature | 0°C to 50°C (12W CPU) |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | CE, FCC Class A |
| Vibration | With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 50G half-sin 11ms |
| Physical | |
| Dimensions (WxDxH) | 192 x 140 x 68mm |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting DIN-Rail Mounting (Optional) |
BCO-1000-ADLN Series: Semi-Rugged Fanless Industrial Mini Computer
The BCO-1000-ADLN is an ultra-compact fanless mini computer that balances performance, connectivity, and low-power efficiency for space-limited edge computing deployments. It leverages the latest edge computing technologies to streamline and consolidate industrial workloads for real-time insights.
- 12th Generation Intel Alder Lake-N N97 Processor (12W TDP)
- Intel NUC Mini PC Alternative
- Ultra compact size for space constrained applications
- Semi-rugged industrial grade design

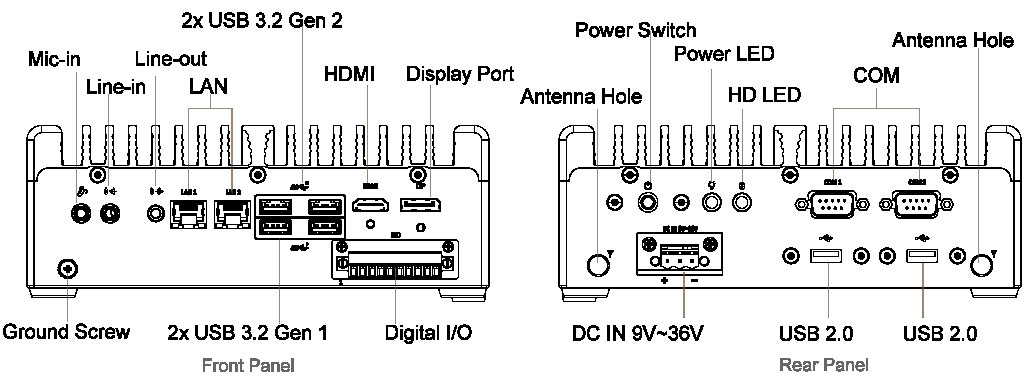

Mechanical Layout
Product Dimension
