P-ECO-1000
EDGEBoost EnergyPack with Industrial-Grade Supercapacitors
- 8x/16x Industrial 370 Farads Supercapacitors
- Up to 200W Max. Power Output
- 1x COM, 1x USB for GUI Remote Management and Monitoring
- 2 IN / 2 OUT DIO
- -20°C to 55°C Wide Operating Temperature
- EN50155: EN50121-3-2, CE, FCC Class A, UL Certification
- 3x Smart Modes with Remote On/Off, Ignition Control, Delay Time
- 12V/24V Compatibility: Industrial PCs, Panel PCs, Displays
| Power | |
| Capacity | • 8S Model: 8x 370 Farads Supercapacitors • 16S Model: 16x 370 Farads Supercapacitors |
| Input Connector | 3-pin Terminal Block (V+, GND, IGN IN) |
| Input Voltage | 12 ~ 35 VDC |
| Output Connector | 3-pin Terminal Block (V+, GND) |
| Output Power | • 8S Model: Max.100W output • 16S Model: Max. 200W output |
| Output Voltage | Charge mode: DC IN Voltage bypass (DC OUT = DC IN) Discharge mode: 12V or 24V Caution: • To use output voltage 24V DC, ECO-1000 input voltage must be 24V- 35V • Different voltage input/output can damage the systems. Ensure ECO-1000 Voltage Out setting matches the voltage input of external system. • For example, If the external system has a fixed voltage of 12V DC IN, the ECO-1000 must be configured for 12V DC OUT. |
| Charging Mode | Quick and Normal Charging |
| Power Ignition | Power Ignition Management |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection |
| I/O | |
| COM | 1x RS-232 |
| DIO | 2 in / 2 out |
| USB | 1x USB Type A |
| Others | 1x Remote Power On/Off 1x Smart Mode Switch 1x Mode Reset Switch |
| Environment | |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | CE, FCC Class A, UL 62368-1 Ed. 3 EMC Conformity with EN50155, EN50121-3-2 |
| Vibration | 5 Grms, 5 - 500 Hz, 0.5 hr/axis |
| Shock | 20G, half sine, 11ms |
| Physical | |
| Dimension | 100 (W) x 192 (D) x 192 (H) mm |
| Weights | ECO-1000-8S-LCM: 2 KG ECO-1000-16S-LCM: 2.6 KG |
| Construction | Heavy Duty Metal |
| Mounting Options | Wall Mounting, DIN Rail Mounting (Optional) |
Mission Critical Back-Up with Supercapacitors
The ECO-1000 Series EDGEBoost EnergyPack is an industrial-grade supercapacitor tailored to re-define power backup redundancy for industrial computers and HMI displays during mission-critical computing deployments in unstable operational technology deployments.
- Modular “EDGEBoost EnergyPack” with supercapacitor technology
- World-Class Certifications: UL-Certified, FCC, CE, and EN 50155
- Instantaneous power backup with rapid charge and discharge
- 3 configurable smart modes for safe shutdown
- Remote GUI and LCM Display module for customizable settings
- 10 Years Operating Longevity
- Double the power and capacity of supercapacitors than competitors (16 vs. 8)
Smart Power Management – 3 Flexible Modes
Engineered for mission critical deployments, the ECO-1000 Series is configurable with 3 Smart Modes for intelligent power management. The smart modes leverage the ignition control, remote power on/off, and electrical sensors in the ECO-1000 to determine redundant power when it matters most. The ECO-1000 also has an embedded logic on its MCU that can utilize its DIO ports to enable additional monitoring from the computer when sensors are connected.
| Ignition and In-Vehicle Mode | Normal Mode | Battery Mode |
 |  |  |
Use this mode when the ECO-1000 is connected to an in-vehicle DC (12VDC/24VDC) power supply with an ignition (IGN) control signal. This mode is suitable for applications in rolling stocks, electric vehicles, truck telematics, and other transportation solutions.
| Use this mode when the ECO-1000 is connected to an AC power plug. This mode is suitable for applications in factory automation, smart city, and smart energy grids.
| Use this mode when the ECO-1000 is connected to an in-vehicle DC power supply and the ignition (IGN) control signal is connected to the computer. The battery mode provides a continuous stable power supply to the computer. This mode is suitable for applications with frequent power fluctuations
|

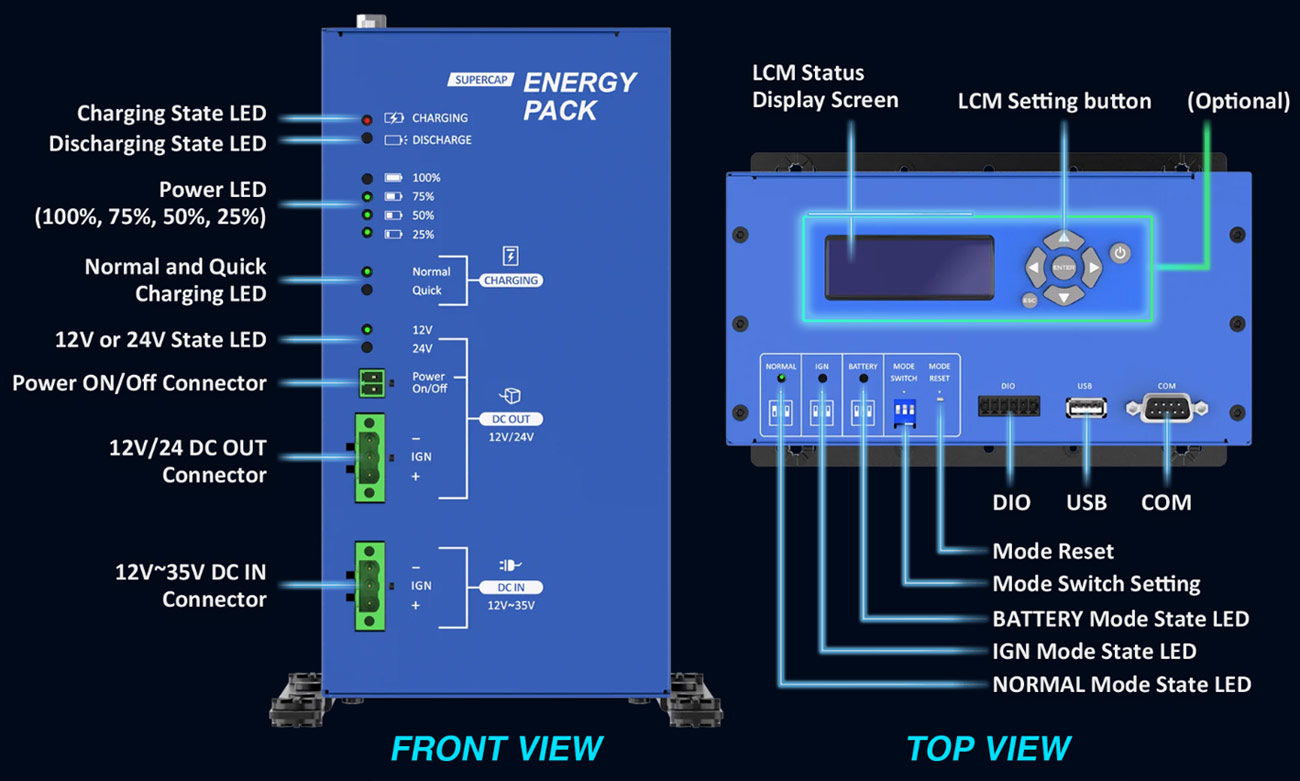

ECO-1000 EDGEBoost EnergyPack

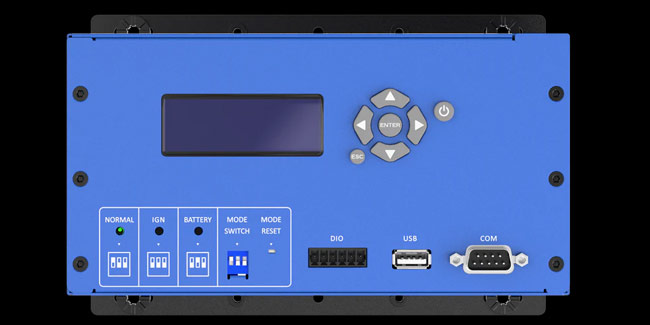

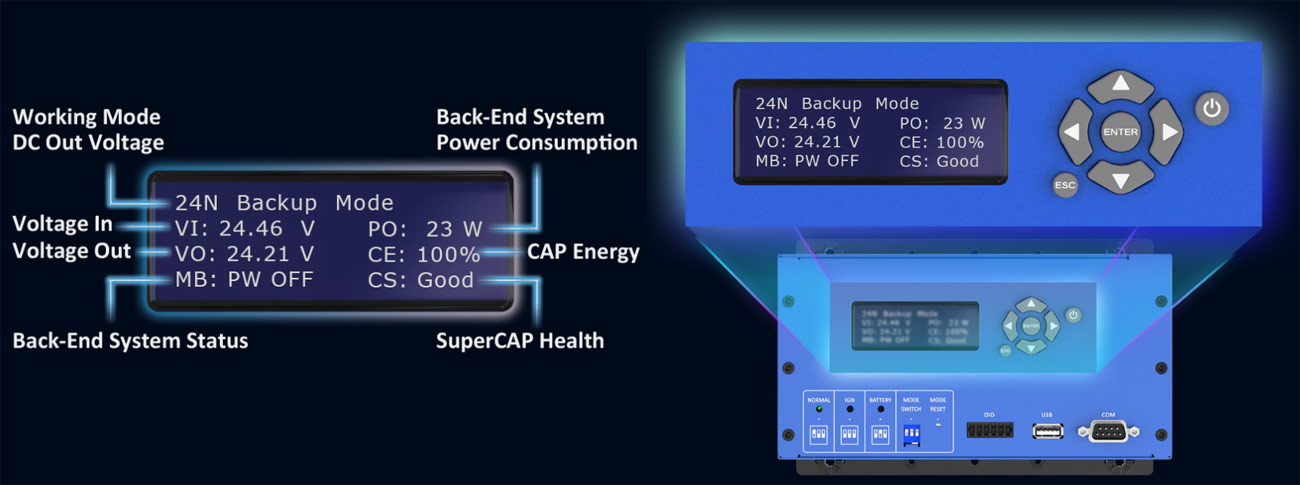

The ECO-1000 adapts seamlessly to diverse industrial environments, catering to various industrial computers, panel PCs, and industrial displays. The LCM display module is a unique feature for onsite monitoring and management. The feature rich I/O interface enables efficient remote and onsite management, empowering operators with real-time insights and control over critical systems, thereby minimizing downtime and optimizing productivity.
Tested, Validated, & Certified
The ECO-1000 carries world-class certifications to cover various mission-critical applications at the rugged edge.

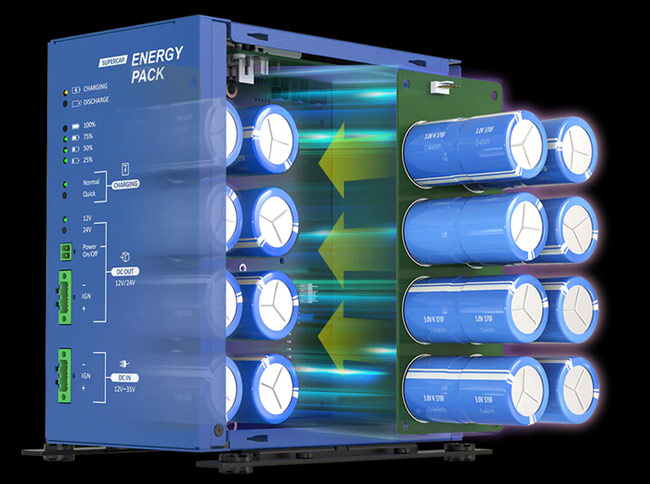

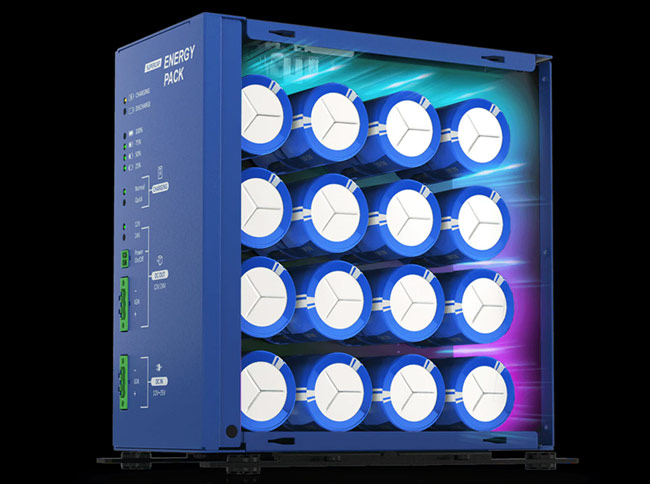

Modular EDGEBoost EnergyPack
The ECO-1000 Series is flexible and scalable to provide 370 Farads of stable power redundancy for mission-critical deployments at the rugged edge.
- 8x Supercapacitors with 100W Power Output
- 16x Supercapacitors with 200W Power Output
- 10 Years Lifetime and 500,000 Lifecycles
- 10 Years Lifetime and 500,000 Lifecycles
- Modular Supercapacitors Unit 370 Farads

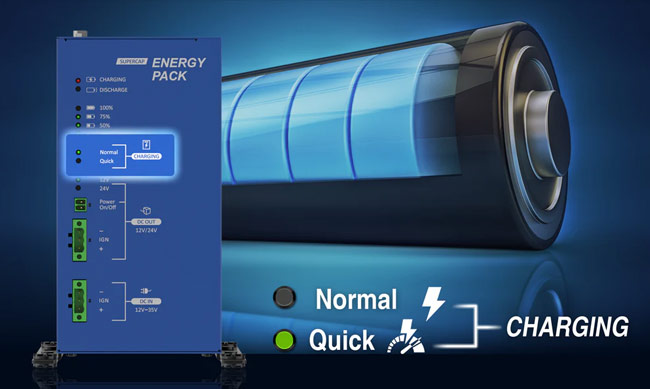

Need for Speed – Quick Charge and Eliminate Downtime
The ECO-1000 Series supercapacitor technology offers two charge options for energy replenishment and redundancy, a normal and quick charge mode. Alongside the Normal Charge mode, which operates with 60W or 120W power supplies, the Quick Charge mode elevates performance with rapid power inputs of 220W, 280W, and 306W.

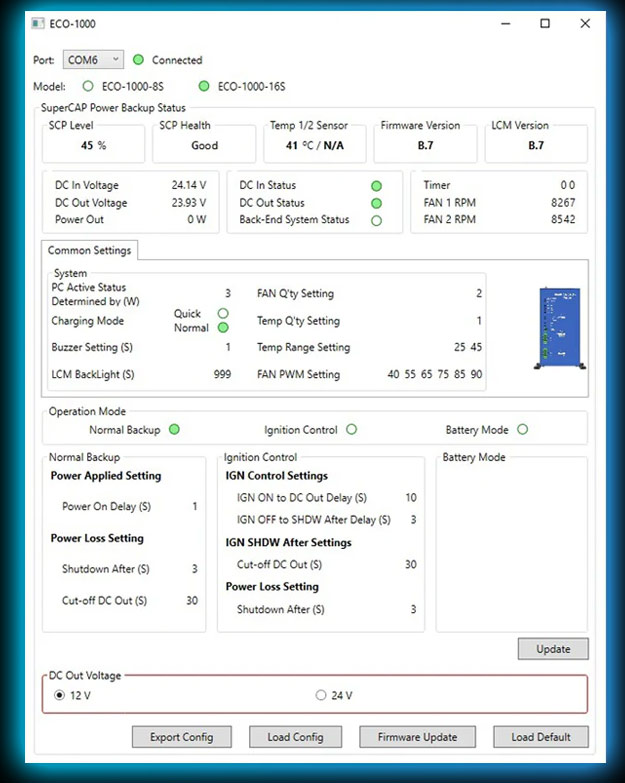

Interactive GUI for Remote Management
Streamlined management meets user-friendly convenience with an interactive GUI that enables remote management and monitoring by connecting effortlessly to a display through the ECO-1000's USB or COM ports
- USB and COM ports to enable GUI Remote Management and Monitoring
