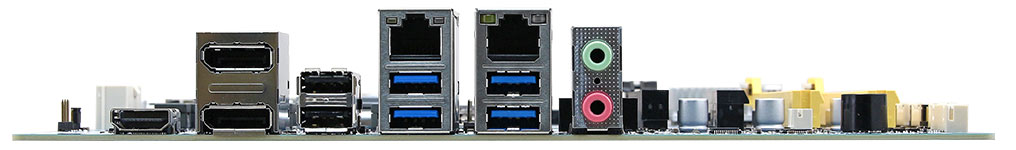

A-RX610H
12/13/14th Gen Intel® Core™ i9/i7/i5/i3 Processor, supports LGA 1700 CPU Up to 65W Max
- LGA 1700 Socket Supports 12th/13/14th Gen. Intel® Core™ i9/i7/i5/i3, Pentium, Celeron Processors with Intel® H610E Chipset
- 2 x DIMM Slots, Dual Channel DDR5 Up to 4800MHz with UDIMM, Up to 64GB
- 4 x SATA III
- 1 x PCIe x16 (Gen 5), 3 x PCIe x1 (Gen 3)
- 1 x Intel® I219-V and 1 x Intel® I225-LM 2.5 Gigabit Ethernet Controller
- 2 x USB 2.0, 4 x USB 3.2 and 4 x USB 2.0, 2 x USB 3.2 Gen 1 Header
- 1 x M.2 NVMe M-Key, 1 x M.2 E-Key Supports CNVi
- 1 x RS-232/422/485, 5 x RS-232
- ATX Power
Datasheet
Product Specification
| System Information | |
| Processor | LGA 1700 Socket Supports 12/13/14th Generation Intel® Core™ i9/i7/i5/i3 Processors (Max. TDP at 65W) |
| Platform Controller Hub | Intel® H610E Chipset |
| System Memory | 2 x 288-Pin DDR5 4800MHz Dual Channel U-DIMM Socket Supports Up to 64GB |
| I/O Chipset | nuvoton NCT6126D |
| Watchdog Timer | H/W Reset, 5~255 Seconds/5~255 Minutes |
| BIOS | AMI uEFI BIOS, 256Mbit SPI Flash ROM |
| H/W Status Monitor | CPU Temperature Monitoring Voltages Monitoring CPU Fan Speed Control |
| TPM | infineon TPM 2.0 |
| Board | Micro ATX |
| Expansion | |
| Expansion | 1 x Gen 5 PCIe x16 (x16 Physical Black) (Slot 1) 1 x Gen 3 PCIe x1 (x4 Physical Open Ended) (Slot 2) 2 x Gen 3 PCIe x1 (x16 Physical Yellow) (Slot 3 & 4) 1 x M.2 M-Key 2242/2280/22110 NVMe (PCIe x4 + SATA III) 1 x M.2 E-Key 2230 with CNVi Support (PCIe x 1 Share with Slot4 + USB 2.0) 3 x SATA III 1 x SATA III Shared with M.2 |
| Display | |
| Graphic Chipset | Intel® 12/13th Generation CPU Integrated |
| Spec. & Resolution | 1 x HDMI (2.0b) 4K x 2K@60Hz (with HDR) 2 x DP (DP1.4a): Max: 7680 x 4320@60Hz (2 x DP++: 1920 x 1080@60Hz) |
| Multiple Display | Triple Display |
| Audio | |
| Audio Codec | Realtek ALC888S HD Audio Decoding Controller |
| Audio Interface | Line-out, Mic-in |
| Audio Amplifier | 2 x 6W 8Ω Amplifier |
| Ethernet | |
| LAN Chipset | 1 x Intel® I219V Gigabit Ethernet 1 x Intel® I225LM 2.5 Gigabit Ethernet |
| LAN Port | 2 x RJ45 |
| Power Requirement | |
| Power Mode | AT/ATX (Default Setting: ATX) |
| Software Support | |
| OS | Windows 10, Windows 11, Linux |
| Certification | |
| Certification Information | CE, FCC Class B, RoHS Compliant |
| I/O | |
| USB | 2 x USB 2.0 Type A 4 x USB 3.2 Type A 4 x USB 2.0 by pin header 2 x USB 3.2 Gen1 by pin header |
| COM Port | 5 x RS-232 by pin header 1 x RS-232/422/485 by pin header |
| SATA | 3 x SATA III 1 x SATA III Shared with M.2 |
| DIO | 1 x 8-bit GPIO |
| MIO | 1 x PS/2 Header 1 x LPT Header |
| Mechanical & Environmental | |
| Operating Temp. | 0°C ~ 60°C (32°F ~ 140°F) |
| Storage Temp. | -20°C ~ 80°C (-4°F ~ 176°F) |
| Operating Humidity | 5% ~ 90% Relative Humidity, Non-condensing |
| Weight | 1.45lbs (0.65kg) |
| Power Requirement | +12V/+5V/5VSB/+3.3V/-12V |
| Power Mode | AT/ATX (Default Setting: ATX) |
| Dimension (L x W) | 9.6" x 9.6" (243.84mm x 243.84mm) |
Ordering Information
| Part No. | Description |
| 71842-IA | LGA 1700 socket supports 12th/13th Gen Intel® Core™ i9/i7/i5/i3 Processors Micro ATX Motherboard With Intel® H610E PCH |
