AD-PPC-319S RPL
19" fanless panel PC with 13th gen Intel® Core™ processors (i7/i5/i3)
- True-flat touchscreen with Industrial-grade LCD panel
- High-performance, fanless 13th gen Intel® Core™ processors
- Slim Compact, fanless design with aluminum alloy enclosure
- IP66-rated front panel
- Supports dual displays (1 x external DP), iDoor and PCI or PCIe
- 1 x M.2 M Key 2242/2280 (SATA or NVME PCIe x 4) for storage, support SATA RAID 0,1
- 2 x 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
- Supports VESA 100
- Support TPM2.0 hardware security
Datasheet
Product Specification
| Model | PPC-319S-PDI5A |
| Hardware | |
| CPU | Intel® Core™ i5-1335UE 1.3GHz 10-Core |
| Memory | 1 x DDR5 SO-DIMM Slot |
| Storage | 1 x NVMe/SATA M.2 SSD slot (2242/2280 M-key), 1 x 2.5" SSD/HDD Bay |
| LAN | 2 x 10/100/1000/2500 Mbps |

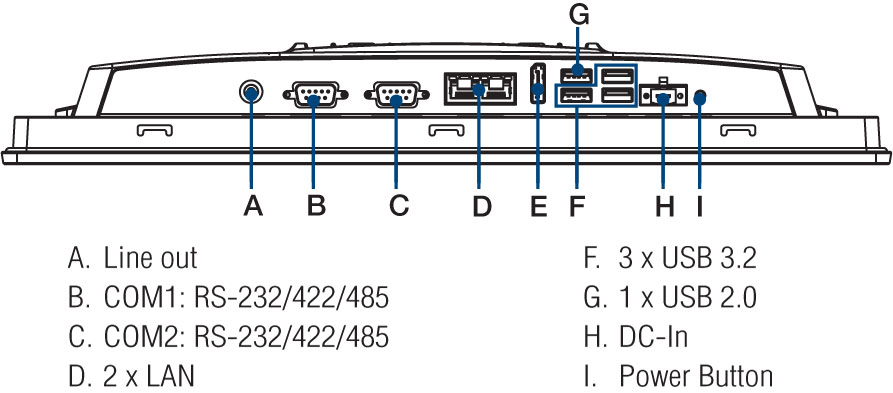

| I/O | 2 x RS-232/422/485, 3 x USB 3.2, 1 x USB 2.0, 1 x DP, 1 x Line Out, 1 x iDoor Slot |
| Expansion | 1 x M.2 E Key 2230, 1 x M.2 B key 2242/3042/3052, 1 x PCI or PCIe x 1 |
| Watchdog Timer | 1~255 s |
| OS Support | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux, Android |
| Power Input | 24 VDC ±30% |
| Power Consumption | 70 W @ 24 VDC |
| Certification | CE, FCC Class B, BSMI, CB, UL, CCC, UKCA |
| Mechanical | |
| Dimension (W x H x D) | 359.6 x 283.6 x 50.4 mm |
| Weight (Net) | 6.3 kg (13.89 lb) |
| LCD Display | |
| Display Size | 19" |
| Max. Resolution | 1280 x 1024 |
| Viewing Angle (H/V°) | 178/178 |
| Luminance (cd/m2) | 450 |
| Backlight Life (hrs) | 50,000 |
| Touchscreen | |
| Touch Type | PCAP |
| Environment | |
| Operating Temperature | -10~50 °C (14~122 °F) |
| Storage Temperature | -30~60 °C (-22~140 °F) |
| Relative Humidity | 95% RH (non-condensing) |
| Ingress Protection | Front Panel IP66 |
