P-AIO-W215-ASL-3L
15.6" AIO with Intel® Alder lake N97/ Atom® x7835RE Processor, 3x 2.5GbE LAN
- 15.6" (16:9) Full HD All-in-One Touchscreen Computer
- World Class Certifications for Safety and Reliability: CE/FCC/CB/UL/UKCA/IC
- Front IP65 Rating for protection against water and dust
- Scratch Resistant 7H Glass Hardness
- Versatile Display Outputs; HDMI and DP
- MTBF 30,000 Hours
Datasheet
AIO Series All In One IP65 Industrial Touchscreen Computer
Simple Solution for Human Machine Interface Deployments
Designed to meet the complex connectivity needs of Human Machine Interface applications with a simple all in one solution. The AIO Panel PC is designed to deliver efficient HMI computing for a wide range of industrial applications in an all in one solution.
| Display | |
| IP Rating | Front IP65 |
| LCD Size | 15.6" (16:9) |
| Max. Resolution | 1920 x 1080 (Full HD) |
| Brightness (cd/m2) | 400 nits |
| Contrast Ratio | 800:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.17925(H) x 0.17925(V) |
| Viewing Angle (H-V) | 85 /85 /85 /85 (Typ.) (CR>=10) |
| Backlight MTBF | 30,000 Hours (LED Backlight) |
| Touch | |
| Touch Type | Projected Capacitive Touch |
| Surface Hardness | 7H / IK07 |
| System | |
| DisplayPort | 12th Gen Intel® Alder Lake-N Processor N97, 6M Cache, up to 3.60 GHz, 4 core 12W Intel® Atom® x7835RE Processor 6M Cache, up to 3.60 GHz, 8 core 12W |
| System Chipset | SoC integrated |
| System Memory | 1x 262-Pin DDR5 4800MHz SO-DIMM. Max. up to 16GB (Non-ECC) |
| LAN Chipset | GbE1~3: Intel i226V 2.5GbE LAN PXE Support |
| Audio Codec | Realtek ALC897 High Definition Audio CODEC |
| BIOS | AMI uEFI 256MB SPI flash |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM2.0 |
| Storage | |
| M.2 B Key | 128G M.2 B Key NVMe SSD (Default) |
| SATA | 1x SATA 3.0 6Gb/s port Support AHCI (Option) |
| Expansion | |
| M.2 | 1x M.2 E Key Support WiFi 6E/Bluetooth (Option) 1x M.2 B Key Support NVMe/4G/5G (Option) |
| I/O | |
| DisplayPort | 1x DP 1.4a up to 4096×2304 @60Hz |
| HDMI | 1x HDMI™ 1.4b up to 3840x2160 @30Hz |
| COM | COM 1: RS-232/422/485 COM 2: RS-232 |
| USB | 2x USB 3.2 Gen 2 (10 Gbps) |
| LAN | 3x 2.5GbE LAN |
| SIM | 1x Dual Nano SIM |
| Others | Support up to 6x Antenna (optional) |
| Operating System | |
| Windows | Windows 10 / Windows 11 |
| Linux | Linux Ubuntu 22.04 |
| Power | |
| Power Adapter | 60W (12V 5A, Default) |
| Power Supply Voltage | DC 12~36V |
| Power Connector | DC Jack 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 10% to 80% (non-condensing) |
| Certification | CE, FCC Class A, CB, UL Listed, UKCA, IC |
| Vibration | With SSD: 3 Grms (5 - 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 20G half-sin 11ms |
| Physical | |
| Dimensions | 400 (W) x 249 (H) x 50 (D) mm |
| Weights | 2.3 kg |
| Mounting | VESA Mount (75mm x 75mm/100mm x 100mm) Panel Mount (optional) |
AIO SERIES ALL IN ONE INDUSTRIAL TOUCHSCREEN COMPUTER
The AIO Series is a reliable all in one panel PC solution that simplifies HMI solutions with high efficient computing capabilities and advanced I/O connectivity. Designed for simple industrial and commercial applications with its sleek all in one panel design and comprehensive functionality.
- Comprehensive All In One Solution
- Front Panel IP65
- Various Display Sizes (10.1" to 21.5") & Aspect Ratio (16:10 & 16:9)
- High Efficient Computing
- MIL-STD-810G Method 516.7 Procedure
Harnessing the Power of Intel Efficiency Cores
- 4 E-Cores (Intel 7 Gracemont Architecture)
- Supports single channel memory
- Improve Power Efficiency
- Lower Power Consumption
Industrial Grade Durability
- IP65 Front Panel
- Wide Operating Temperature: -10°C - 50°C
- MIL-STD-810H Method 516.8 Procedure
Enhanced Optical Clarity
The AIO Series delivers ultimate readability and clarity for industrial applications and settings. Its wide viewing angles and high contrast ratio offers flexibility and consistent high-quality visibility to accommodate operators with varying viewing positions.

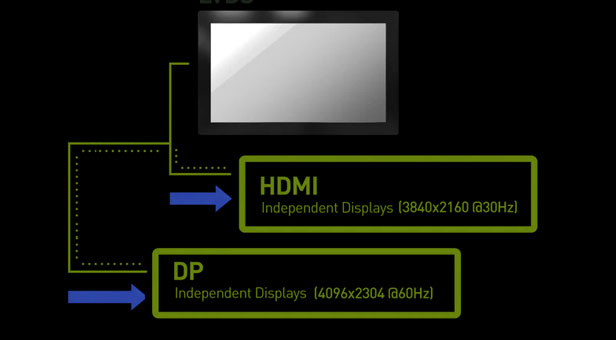

Triple Independent Displays Support
HDMI: Supports high-definition output up to 3840 x 2160 4K UHD @30Hz.
DP: Handles ultra-high resolutions up to 4096 × 2304 Real 4K @60Hz.
- LVDS: Up to 1920 x 1200 WUXGA @60Hz for clear, sharp imagery.

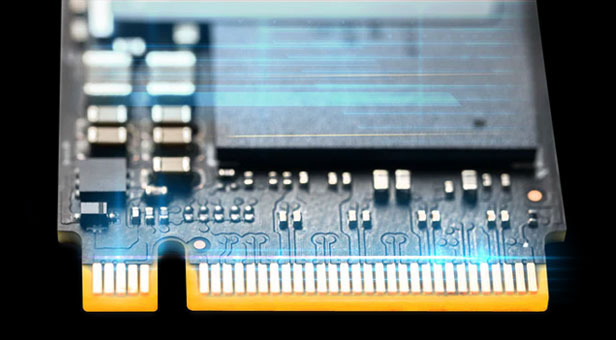

Storage and Connectivity M.2 Keys
1x M.2 B Key 128G SSD default Storage
1x M.2 E Key Wifi 6e Support
- 1x SIM slot for 5G support (AIO-200-ASL-3L series)

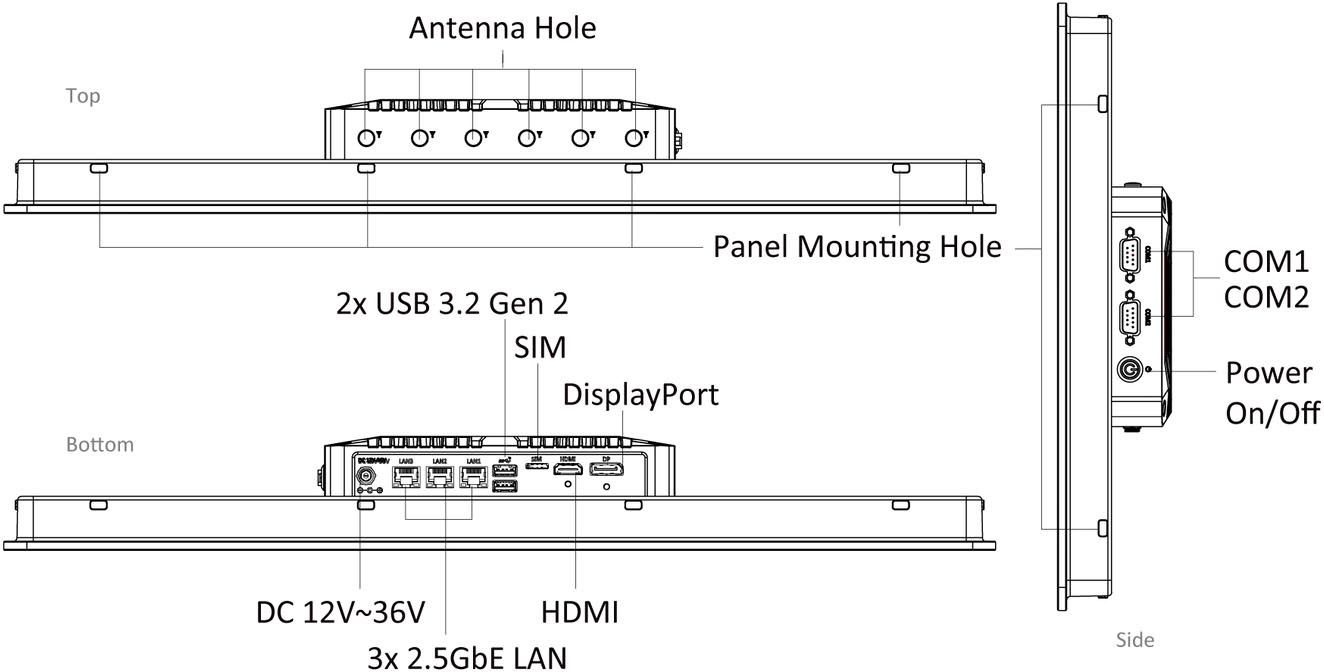

Mechanical Layout

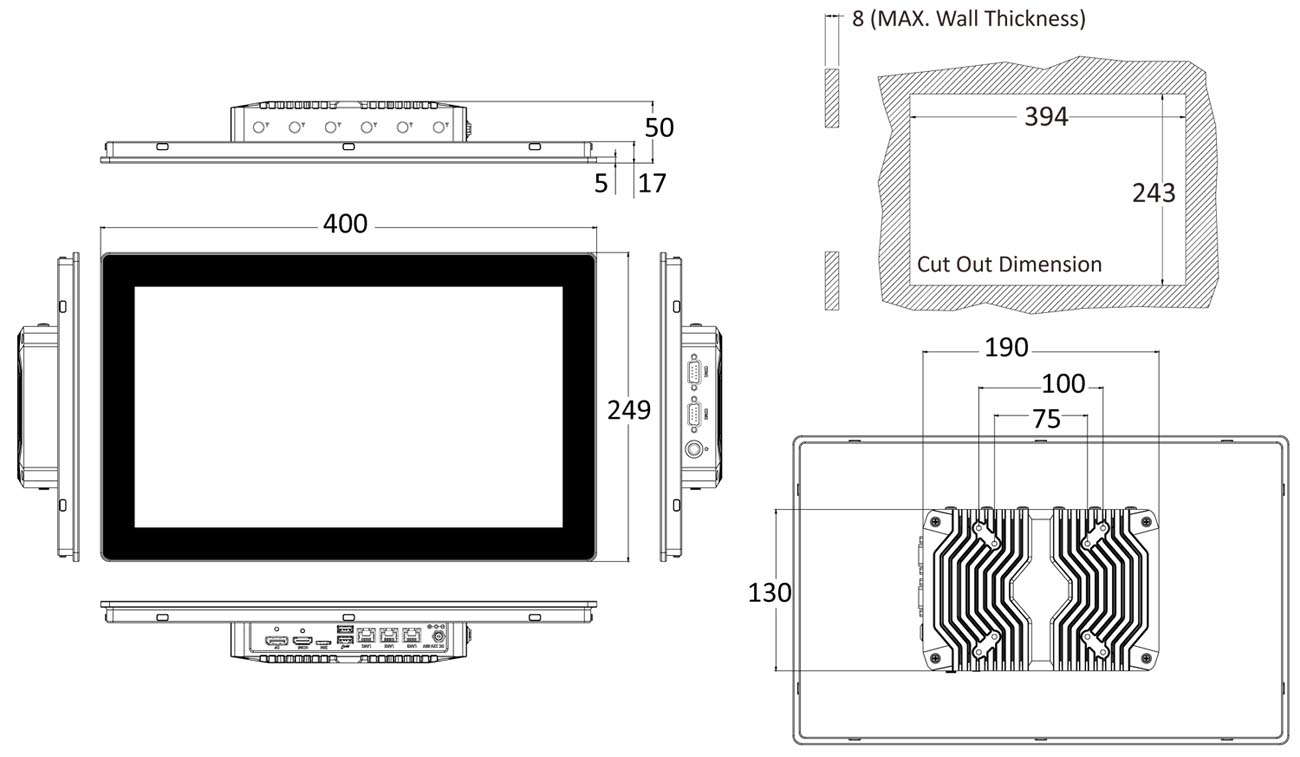

Product Dimension
