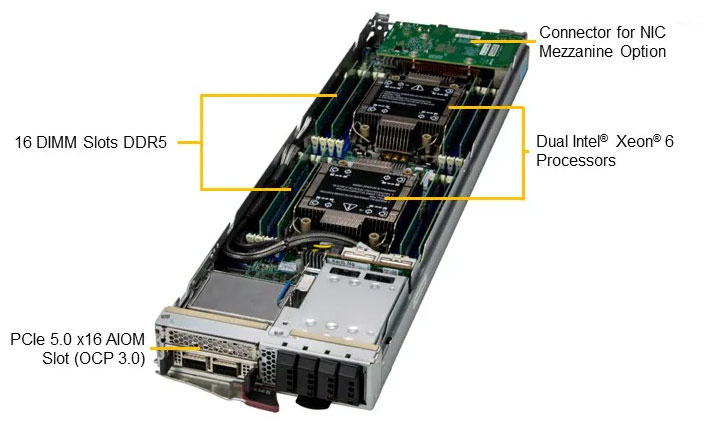

SBI-422B-1NE14
100 servers per 42U Rack. Dual Socket E2 (LGA-4710), Intel® Xeon® 6 processors
- 100 servers per 42U Rack
- Dual Socket E2 (LGA-4710), Intel® Xeon® 6 processors
- Up to 16 DIMMs, 1DPC with DDR5-6400MT/s ECC RDIMM/RDIMM 3DS
- Support up to 9 drives per blade
- Dual-port 25G Ethernet (LOM)
- Expansion slot for IB or Ethenret mezzanine card and for OCP 3.0 compliant card
- Liquid cooling solution is available
Key Applications
- Enterprise data center
- EDA, Cloud
- High-performance Computing (HPC)
Product Specification
| SuperBlade Sled | SBI-422B-1NE14 |
| Motherboard | MBD-B14DBT |
| Processor | |
| CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6 6700 series processors with E-cores |
| System Memory | |
| Memory Capacity | 16 DDR5 DIMM slots 1DPC with DDR5-6400MT/s ECC RDIMM/RDIMM 3DS |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Controllers | Onboard Dual 25G Ethernet 1 expansion slot w/ optional mezzanine cards 1 expansion slot for OCP 3.0 compliant card (IB NDR/NDR200) |
| MGMT/Security | IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust |
| Graphics | Aspeed AST2600 |
| System BIOS | |
| BIOS Type | 256Mb SPI Flash EEPROM with AMI® BIOS |
| Dimensions | |
| Height | 1.75" |
| Width | 6.5" |
| Depth | 23.5" |
| Weight | 9.5 lbs (4.3 kg) |
| Available Colors | Metalic Silver with Black Drive Bays |
| Front Panel | |
| Buttons | Power On/Off button |
| LEDs | Power LED UID Network Activity LED Fault LED |
| Expansion Slot | |
| OCP card | 1x OCP 3.0 card compliant including IB NDR or IB NDR200 |
| Drive Bays | |
| Hot-swap | 4 E1.S drives |
| M.2 | 1 NVMe M.2 2280 (onboard) Optional: 4 M.2 NVMe via mezz card |
| Input / Output | |
| TPM | 1 TPM 2.0 Header |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
X14 8U SuperBlade®: Highest Density Multi-Node Server Solutions
- 120 servers per rack (Up to 34,560 CPU cores) 8U enclosure with 20 single-wide or 10 double-wide servers,
- sharing power supplies, cooling fans, CMMs, Ethernet, and InfiniBand switches
SBI-422B-1NE14
16 DIMMs, 4 E1.S, 1 M.2
20 DP Nodes in 8U
SBI-422B-5NE14
16 DIMMs, 4 E1.S, 1 M.2
10 DP Nodes in 8U
