AS-4125GS-TNRT1
DP AMD 4U Single-Root PCIe GPU Server with up to 10 PCIe GPUs
- Flexible GPU support: active & passive GPUs
- Single Root Configuration with PCIe Switch for up to 10 double width, full length GPUs
- 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
- Single AMD EPYC™ 9004/9005 Series Processor
- 12 DIMM Slots, up to 3TB DDR5 memory
- up to 8 Hot-swap 2.5" NVMe drive bays
- AIOM / OCP 3.0 Support
Datasheet
| Product SKUs | A+ Server AS -4125GS-TNRT1 |
| Motherboard | Super H13DSG-O-CPU |
| Processor | |
| CPU | Single processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x) |
| Core Count | Up to 160C/320T |
| Note | Supports up to 400W TDP CPUs |
| GPU | |
| Max GPU Count | Up to 10 double-width or 10 single-width GPUs |
| Supported GPU | NVIDIA PCIe: H100, H100 NVL, A100, L4, L40, L40S, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 4000 Ada Generation, RTX 5000 Ada, RTX 6000 Ada Generation, RTX A6000 AMD PCIe: Instinct™ MI210 |
| CPU-GPU Interconnect | PCIe 5.0 x16 Switch Single-Root |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (optional), AMD Infinity Fabric™ Link (optional) |
| System Memory | |
| Memory | Slot Count: 12 DIMM slots Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| SATA | SATA (6Gbps) |
| Chipset | AMD SP5 |
| Network Connectivity | 2 RJ45 10GbE |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports |
| USB | 2 ports(rear) |
| Video | 1 VGA port |
| Serial | 1 COM port(rear) |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | 7 +1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 4U Rackmount |
| Model | CSE-418G2TS |
| Dimensions and Weight | |
| Height | 7" (178 mm) |
| Width | 17.2" (437 mm) |
| Depth | 29" (737 mm) |
| Package | 26.57" (H) x 27" (W) x 41" (D) |
| Weight | Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) |
| Available Color | Black Front & Silver Body |
| Front Panel | |
| Buttons | Power On/Off button System Reset button |
| LED | Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 11 PCIe 5.0 x16 (in x16) FHFL slots Option A 12 PCIe 5.0 x16 (in x16) FHFL slots |
| Drive Bays / Storage | |

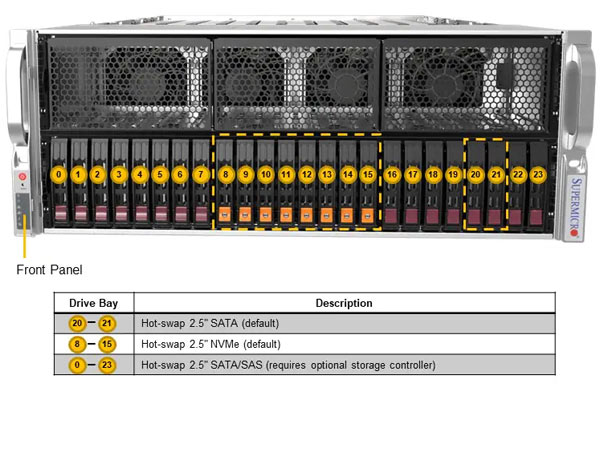

| Drive Bays Configuration | Default: Total 10 bays 8 front hot-swap 2.5" NVMe drive bays 2 front hot-swap 2.5" SATA drive bays |
| System Cooling | |
| Fans | Up to 8 heavy duty fans with optimal fan speed control |
| Power Supply | |
| 4x 2000W | 4x 2000W Redundant (3 + 1) Titanium Level (96%) power supplies |
| Dimension (WxHxL) | 73.5 x 40 x 203 mm |
| Input | 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 220-240Vac 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vdc / 50-60Hz (for China only) |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) |
| 12V SB | Max: 3.5A / Min: 0A Max: 3.5A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Flexible, High-Density GPU Server Family for AI, ML, and HPC
To support AI, ML, and HPC workloads, we designed a family of servers with up to 160 lanes of PCIe 5.0 connectivity to up to ten GPUs, with support for the fastest accelerators from AMD and NVIDIA. To accelerate GPU-to-GPU connectivity, the family of servers support both AMD Infinity Fabric™ Link and NVIDIA® NVLink Bridge™ technologies.
We have optimized these systems with a range of options that enable you to choose the right balance of computation, acceleration, I/O, and local storage to best suit your workload needs.
Three GPU-Dense Servers Optimized for Compute Intensive Workloads
Support up to 10 GPU accelerators of your choice plus bandwidth to spare for networking and disk storage:
- PCIe 5.0 connectivity throughout including direct-connected, single-root, and dual-root options, plus CXL 1.1+ support
- Supports the latest GPUs, including AMD Instinct™ MI210 and NVIDIA® H100
- 1- and 2-socket designs supporting 4th Gen AMD EPYC™ Processors
- Up to 24 DIMMs for up to 6 TB of DDR5-4800 memory
- Flexible PCIe slot options for I/O and networking
- Titanium-Level efficiency power supplies
PCIe GPU SYSTEMS
Maximum Acceleration 4U GPU Systems
The Supermicro 4U GPU servers are 4U single and dual processor systems, supporting up to 10 FHFL double-width PCIe GPU cards, including the latest NVIDIA H100 and AMD Instinct GPUs.
The 4U GPU-optimized systems provide maximum acceleration, flexibility, and balance for AI/deep learning, HPC, and Graphically-intensive workloads.
- 4U dual processors
- direct attached GPU system
- supporting 8 PCIe 5.0 GPUs
- AMD Instinct
- NVIDIA Enterprise level GPUs
- 4U single processors
- single-root GPU system with PLX
- supporting 10 PCIe 5.0 GPUs
- AMD Instinct
- NVIDIA Enterprise level GPUs
- 4U dual processors
- dual-root GPU system with PLX
- supporting 10 PCIe 5.0 GPUs
- AMD Instinct
- NVIDIA Enterprise level GPUs
