AS-8126GS-NB3RT
DP AMD 8U GPU System with NVIDIA HGX B300 NVL8
- Dual AMD EPYC™ 9005/9004 Series Processors
- 8x Blackwell 300 Ultra SXM GPUs
- Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 memory (1DPC only)
(Please check System Memory Section for detail) - 8x OSFP 800GbE
- 2x PCIe 5.0 x16 FHHL slots
- 8x front hot-swap E1.S NVMe drive bays
- 6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies
(Power supply full redundancy based on configuration and application load)
Key Applications
- Scientific Research
- Conversational AI
- Business Intelligence & Analytics
- Drug Discovery
- Finance Services and Fraud Detection
- AI/Deep Learning Training and Inference
- Large Language Model (LLM) and Generative AI
- High Performance Computing (HPC)
- Autonomous Vehicle Technologies
Datasheet
Product Specification
| Product SKUs | A+ Server AS -8126GS-NB3RT |
| Motherboard | Super H14DSG-OM |
| Processor | |
| CPU | Dual processor(s) AMD EPYC™ 9005/9004 Series Processors |
| Core Count | Up to 384C/768T |
| Note | Supports up to 500W TDP CPUs |
| GPU | |
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B300 8-GPU (288GB) |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ |
| System Memory | |
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | System on Chip |

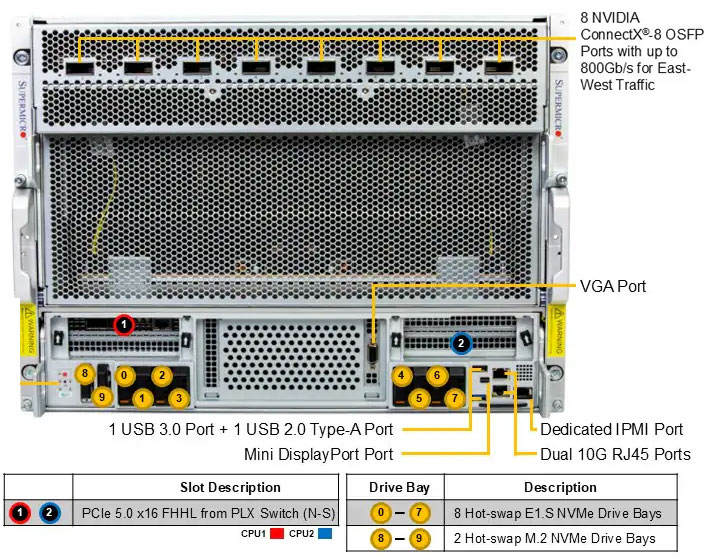

| Network Connectivity | 8 OSFP 800GbE |
| Input / Output | |
| USB | 1 USB 3.0 Type-A port(Front) 1 USB 2.0 Type-A port(Front) |
| Video | 1 VGA port 1 mini-DP port |
| System BIOS | |
| BIOS Type | AMI 64MB UEFI |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 8U Rackmount |
| Model | CSE-GP807TS-R000NP |
| Dimensions and Weight | |
| Height | 13.8" (356 mm) |
| Width | 17.6" (449 mm) |
| Depth | 37.4" (950 mm) |
| Package | 27.6" (H) x 51" (W) x 29.5" (D) |
| Weight | Gross Weight: 266.76 lbs (121 kg) Net Weight: 108 lbs (49.4 kg) |
| Available Color | Silver |
| Front Panel | |
| LED | HDD activity LAN1 activity LAN2 activity Power Fail Power status System information (overheat/UID) |
| Buttons | Power On/Off UID |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 2 PCIe 5.0 x16 FHHL slots |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays |
| M.2 | 2 M.2 NVMe slots (M-key) |
| System Cooling | |
| Fans | Up to 12 heavy duty fans with optimal fan speed control |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
