AS-1015CS-TNR
1U CloudDC Server. 4 hot-swap 3.5" NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 2 AIOM slots
- Single AMD EPYC™ 9004/9005* Series Processor
(*AMD EPYC™ 9005 series drop-in support requires board revision 2.x) - Support up to DDR5 12 DIMM slots (1DPC)
- 2 PCIe 5.0 x16 FHHL
- Dual AIOM (OCP 3.0) for networking, 1 dedicated IPMI LAN
- 4 Hot-swap 3.5"/2.5" SATA drive bays
- Optional 4 Hot-swap NVMe/SAS drives support via additional parts
- 2 M.2 PCIe 3.0 x2 NVMe slots
Key Applications
- Web Server, Firewall
- Data Center Optimized, Value IaaS
- Cloud Computing
- DNS & Gateway Servers, Firewall Application
- CDN, Edge Nodes
| Product SKUs | A+ Server AS -1015CS-TNR Standard version with PWS-860P-1R2 (Platinum Level) A+ Server AS -1015CS-TNR-EU European version with PWS-861A-1R (Titanium Level) |
| Motherboard | Super H13SSW |
| Processor | |
| CPU | Single processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x) |
| Core Count | Up to 160C/320T |
| Note | Supports up to 400W TDP CPUs * *Air Cooled CPUs with TDP over 360W only supported under specific conditions. |
| GPU | |
| Max GPU Count | Up to 2 single-width GPUs |
| Supported GPU | NVIDIA PCIe: A2, L4 |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
| System Memory | |
| Memory | Slot Count: 12 DIMM slots Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01) Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0) Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01) |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) |
| Video | 1 VGA port |
| Serial | 1 COM port(rear) |
| TPM | 1 TPM header |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash ROM |
| BIOS Features | ACPI 6.4 Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) OOB Management Package (SFT-OOB-LIC ) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism, |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-LA15TS-R860AWP2 |
| Dimensions and Weight | |
| Height | 1.7" (43 mm) |
| Width | 17.2" (437 mm) |
| Depth | 25.6" (650 mm) |
| Package | 7.8" (H) x 23.8" (W) x 34.6" (D) |
| Weight | Gross Weight: 46 lbs (20.9 kg) Net Weight: 25 lbs (11.3 kg) |
| Available Color | Black front & sliver body |
| Front Panel | |

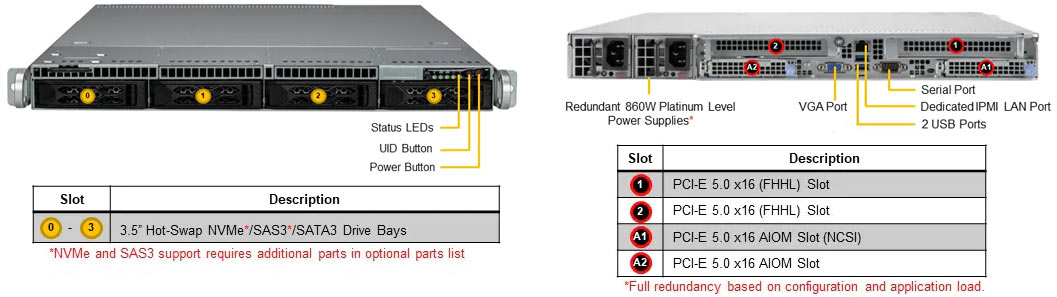

| Buttons | Power On/Off Reset button Universal Information (UID) |
| LED | Drive activity Network activity Power status Universal Information (UID) |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 4 bays 4 front hot-swap 3.5"/2.5" SATA drive bays Option A: Total 4 bays 4 front hot-swap 2.5" PCIe 5.0 NVMe* drive bays Option B: Total 4 bays 4 front hot-swap 3.5"/2.5" SAS* drive bays (*NVMe/SAS support may require additional storage controller and/or cables) |
| M.2 | 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110) |
| System Cooling | |
| Fans | Up to 6x 4cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Ultimate Scalability and Flexibility for Cloud Data Centers
H13 CloudDC systems are single-socket systems optimized for AMD EPYC™ 9004 Series processors with up to 128 cores and 256 threads—ready to power a wide range of cloud workloads. The capacity for up to 3 TB of memory accessed through twelve high speed channels provides the right balance of CPU-to-memory resources to power workloads ranging from financial services to virtualization.
Internally, the system utilizes 128 PCIe 5.0 lanes that support high-speed, high-bandwidth networking and storage. Our 2U server’s I/O capacity extends to up to four PCIe expansion slots, each with 16-lane capability.
- Single-socket servers with up to 128 cores of 4th Gen AMD EPYC processor performance
- Tool-less design for rapid deployment and easy maintenance
- Up to 3 TB of memory with 12 DDR5 DIMMs
- PCIe 5.0 I/O with CXL 1.1+ for double the bandwidth of our prior generation servers
- Two 16-lane AIOM slots for flexible networking
- 2.5" and 3.5" NVMe and SATA drive options to meet virtually any workload storage requirements
Leading Multi-node Architecture with Front or Rear I/O
Single-Socket 1U and 2U Options
Flexible configurations for I/O and storage designed for cloud data centers
Ultimate flexibility on I/O and storage with 2 to 4 PCIe 5.0 slots and dual AIOM slots (PCIe 5.0; OCP 3.0 compliant) for maximum data throughput. Supermicro H13 CloudDC systems offer convenient serviceability with tool-less brackets, hot-swap drive trays and redundant power supplies that ensure a rapid deployment in data centers.
1U single processor server
12 DIMMs, supports dual AIOM
4 hot-swap 3.5" NVMe/SATA drives
1U single processor server
12 DIMMs, supports dual AIOM
10 hot-swap 2.5" NVMe/SATA drives
2U single processor server
12 DIMMs, supports dual AIOM
supports 2 double-width PCIe GPU
12 hot-swap 3.5" NVMe/SATA drives
