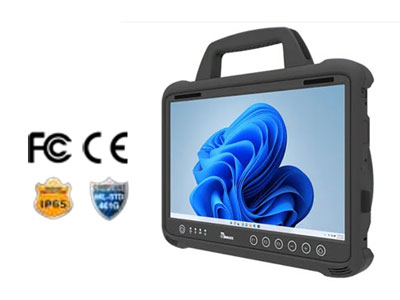

WM-M133MT
13.3” Intel® Core™ ultra 5 125U Industrial Ultra Rugged Tablet
- 13.3” 1920 x 1080 IPS wide viewing angle LED panel
- Intel® Core™ ultra 5 125U Tiger Lake processor
- Removeable kickstand usable as carrying handle
- Magnesium alloy housing with all around elastomeric rubber
- IP65 waterproof and dustproof
- Fanless cooling system
Datasheet
Product Specification
| Display | |
| Size | 13.3 inches |
| Resolution | 1920x1080 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Bonding | Optical Bonding for Sunlight Viewability |
| System Specification | |
| Processor | Intel Ultra 5 processor 125U 2.1 GHz (up to 4.3 GHz) |
| Memory | 8GB DDR5 SDRAM 16GB DDR5 SDRAM (Optional) 32GB DDR5 SDRAM (Optional) |
| Storage | 256GB M.2 NVMe SSD Additional storage available with micro SDXC card slot 512GB M.2 NVMe SSD (Optional) 1TB M.2 NVMe SSD (Optional) 2TB M.2 NVMe SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0 Kensington Lock |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) |
| GNSS | GPS, GLONASS |
| RFID | HF RFID reader 13.56 MHz (Optional) |
| Mechanical | |
| Dimension | 338.2 x 239.8 x 33.8 mm |
| Weight | 2.4 Kg (Without Kickstand), 2.5 Kg (With Kickstand) |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 3 x USB 3.0 Type A, 2 x USB 2.0 Type A, 1 x USB 3.0 Type C |
| Serial Port | 1 x RS232 (DB9) |
| LAN | 1 x RJ45-10/100/1000 Mbps LAN |
| Audio | 2 x 1 watt speaker |
| SD Card Slot | 1 x SDXC Slot |
| Indicator | 4x LED Indicator for Power, Battery, SSD, RF status |
| Docking Connector | 1 x Docking connector |
| Environment | |
| Operating Humidity | 30% to 80% RH, non-condensing |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6, 4 ft |
| IP rating | IP65 |
| EMC | MIL-STD-461G CE101, CE102, RE101, RE102, CS118 (Default) MIL-STD-461G CS101, CS114, CS115, CS116, RS101, RS103 (Optional) |
| Certification | |
| Certification | CE, FCC |
| Security Function | |
| Kensington Lock | Kensington Lock Support |
| Control | |
| Button | 1 x Power,1 x menu,2 x volume key 3 x Programmable Function Keys |
| Camera | |
| Rear Camera | 8MP Rear Camera with auto-focus and LED light |
| Power | |
| Battery | 15.4V, typ. 5900 mAh Li-Polymer Battery (4S1P) Hot-Swap Battery (Optional) |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Accessory | |
| Accessory | Adapter and Power Cord Standard Battery Stand with Integrated Handle |
| Optional Accessory | Vehicle Charger (Optional) Battery Charger (Optional) Desk Docking (Optional) Vehicle Dock (Optional) Stylus (Optional) Shoulder Strap (Optional) Handle (Optional) |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
