AD-AIMB-523
AMD Ryzen™ Embedded 7000 Series processors, MicroATX motherboard with 6 2.5GbE LAN, DDR5, PCIe x16 Gen5
- AMD Ryzen™ Embedded 7000 Series processors with B650 chipset
- 6 2.5Gbe LAN ports for multiple IP-based devices
- High-speed expansions: 8 USB 3.2, 1 M.2 M-key (PCIe Gen4 x4)
- Triple displays by 1 DP and 2 HDMI
- 1 internal USB2.0 type A to support USB keylock functions
- Windows Server and Windows 10/11
Model | AIMB-523BK-PAA1 |
| Form Factor | |
| Form Factor | Micro ATX |
| Processor | |
| CPU TDP | 105W/65W |
| Core Number | 12/8/6 |
| Frequency | 3.7GHz~4.7GHz |
| L3 Cache | 32MB~64MB |
| BIOS | AMI EFI 256 Mbit |
| Chipset | B650 |
| Memory | |
| Max. Capacity | 128GB |
| Technology | DDR5 |
| ECC Support | No |
| Socket | 4 x 288-pin DIMM |
| Display | |
| DDI (HDMI/DVI/DisplayPort) | DP/HDMI |
| Multiple Display | Dual/ Triple |
| Expansion | |
| PCI Express x 16 | 1 |
| PCI Express x 4 | 1 |
| PCI Express x 1 | 1 |
| Ethernet | |
| Controller | Intel i226LM |
| Speed | 10/100/1000/2500 Mbps |
| Audio | |
| CODEC | Realtek ALC888S |
| Connector | 2 (Line out, Mic-in) |
| Connector | |
| Connector | RJ45 x 6 |
| Watchdog Timer | |
| WatchDog Timer | Yes |
| Storage | |
| SATA | 4 x SATA III (Max. Data Transfer Rate600 MB/s) |
| RAID | RAID 0, 1, 10 |
| I/O | |
| GPIO | 8-bit GPIO |
| USB 3.2 | 8 |
| COM Port | 4(2 x RS232, 2 x RS232/ 422/ 485) |
| USB2.0 | 1 (internal type A connector) |
| TPM | TPM Module (optional) |
| Power | |
| Power Type | ATX |
| Connector | ATX24P |
| Environment | |
| Operational Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing |
| Vibration Resistance | 3.5 Grm (Non-Operation Mode) |
| Physical | |
| Dimension (mm) | 244 x 244 mm |
| Weight | 1.2 kg (2.64 lb), weight of total package |
| Operating System | |
| Microsoft Windows | Yes |
| Linux | Yes |
| SUSIAccess | Yes |
| Certification | |
| EMC | CE, FCC |
AD-AIMB-523, a high-functionality Micro-ATX motherboard is ideal for 3D vision guided inspection and is powered by AMD Ryzen™ Embedded 7000 series processors with “Zen 4” architecture and 5nm technology. With 12 cores and support for up to 128GB of DDR5 memory, it delivers up to 49% more performance within the same power budget compared to the AMD Ryzen™ 5000 series.
Targeted toward demanding 3D/4D visual capturing applications, AD-AIMB-523 features 6 x 2.5GbE LAN ports and 8 x USB 3.2 ports for high-speed, high-resolution image capturing devices, ensuring exceptional data transmission with minimal latency. It also includes a steel-reinforced PCIe x16 Gen5 slot for dual-slot GPU cards, plus an internal USB Type-A port for a USB security dongle. These features make it an ideal solution for real-time visual inspection applications in industrial automation that require full functionality, precise graphics inference, and high-security data processing capability.
Empowering Edge AI with AMD Technology
The advent of edge computing has revolutionized the IoT landscape, taking it to new heights by enabling local nodes to host individual services and applications. Key requirements for successful edge computing in various industries include computing power, low latency, data security, analytics, and AI capabilities.
The High-Performance Edge Platform, featuring the latest industrial motherboards, delivers a comprehensive range of cutting-edge benefits for edge computing. This platform empowers customers to effortlessly upgrade their edge devices, equipping them to handle the escalating demand for local services.

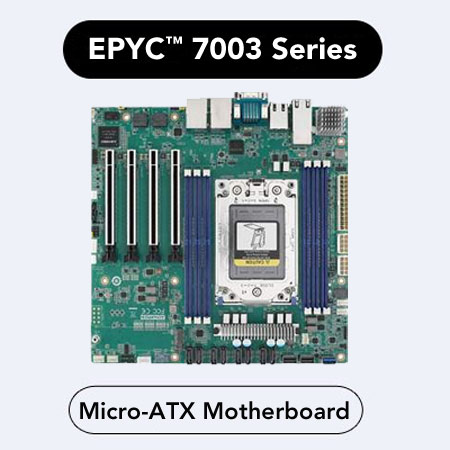

- AIMB-592
- 64-core CPU and up to 768GB DDR4 memory
- Four PCIe Gen 4.0 x16 slots, high bandwidth for double-deck GPU
- Dual 10GbE LAN provides high-throughput data connectivity

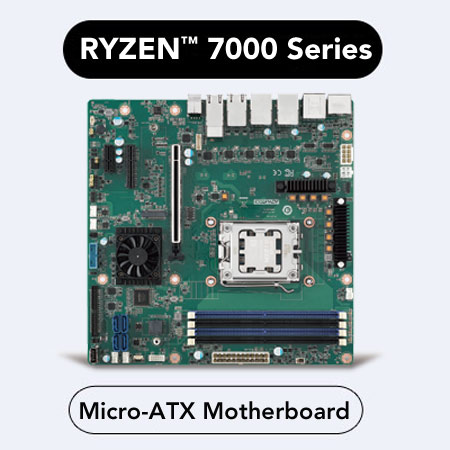

- AIMB-523
- Desktop APU up to 12C computing power
- 6 x LAN ports (2.5GbE), 2 for IP-based devices
- PCIe Gen5 x16 slot and 8 x USB 3.2, 1 x M.2 M-Key for NVMe SSD

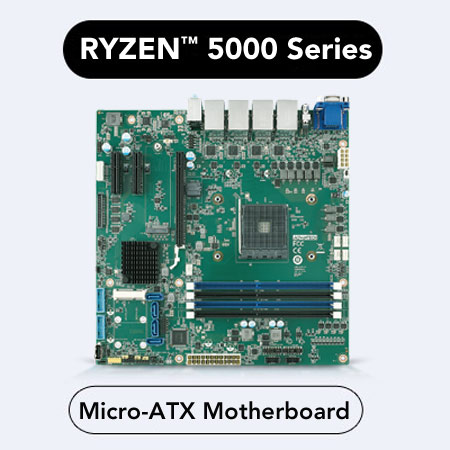

- AIMB-522
- Energy-efficient desktop CPU
- High-speed PCIe Gen4 x16 slot
- Rich I/O: Triple displays, 8 x USB 3.2 10Gbps, 2 x USB 2, 4 x SATA and 4 x GbE LAN ports
