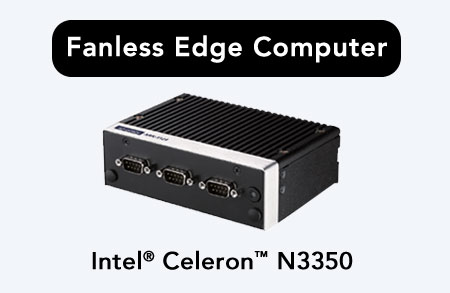

AD-ARK-1124C
Intel Celeron N3350 DC SoC With Four Serial Ports Modular Fanless Embedded PC
- Intel® Celeron™ N3350 Dual Core SoC
- VGA Display, 4 x RS-232/422/485, 2 x USB3.0
- 1 x full-size miniPCIe for communication module
- 1 x 2.5" SATA III drive bay and 1 x half-size mSATA
- -20 ~ 60 °C extended operating temperature
- 12V lockable DC jack power input
- Optional 12~24V power module (Dual Layer)
- iDoor module compatible (Dual Layer)
Datasheet
Product Specification
| Model | ARK-1124C-S1A3 | |
|---|---|---|
| Processor | ||
| CPU | Intel® Celeron® N3350 Dual Core SoC | |
| Core Number | 2 | |
| Frequency | 1.1 GHz, turbo burst 2.4 GHz | |
| L2 Cache | 2 MB | |
| BIOS | AMI EFI 64 Mbit | |
| Memory | ||
| Technology | DDR3L 1866 MHz | |
| Max. Capacity | 8 GB | |
| Socket | 1 x 204-pin SO-DIMM | |
| Graphics | ||
| Chipset | Intel® HD Graphics 500 | |
| Graphic Engine | 4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG | |
| VGA | Up to 2048 x 1280 @ 60Hz | |
| Ethernet | ||
| LAN1 | 10/100/1000 Mbps Intel i210 GbE, support Wake On Lan | |
| Audio | ||
| Interface | Realtek ALC888S, High Definition Audio. Line-out, Line-in | |
| I/O | ||
| Serial port | 4 x RS-232/422/485 port with auto flow control | |
| USB | 2 x USB 3.0 | |
| Others | ||
| Watchdog timer | 255 levels timer interval, setup by software | |
| Expansion | ||
| Mini PCIe | 1 x full-size mPCIe for WLAN/WWAN | |
| iDoor Module | 1, optional (2nd layer) | |
| Storage | ||
| 2.5" HDD/SSD | Supports 1 x 2.5" SATA III Drive Bay (Compatible with 9.5mm height) | |
| mSATA | 1x Half-size mSATA (by CTOS or T-PN) | |
| Software Support | ||
| Microsoft Windows | Win 10 IoT Enterprise LTSB | |
| Linux | Support by project | |
| Power | ||
| Power Type | AT/ATX | |
| Input Voltage | 12VDC (Optional 12~24V power module) | |
| Power Adaptor | AC to DC, DC12 V/3 A, 36 W with lockable DC Jack | |
| Consumption | Typical 5.5W, Max. 10.2W | |
| Mechanical | ||
| Construction | Aluminum housing | |
| Mounting | DIN-Rail/Wall/VESA Mounting Kits (Optional) | |
| Dimensions | 133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71") | |
| Weight | 0.7 kg (1.55 lb) | |
| Environment | ||
| Operational Temperature | With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow, With 2.5-inch hard disk 0 ~ 40 °C (32 ~ 104 °F) with 0.7m/s air flow | |
| Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) | |
| Relative Humidity | 95% @ 40° C (non-condensing) | |
| Vibration during Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis; With HDD: 0.5Grms, IEC 60068-2-64, random, 5~500Hz, 1hr/axis | |
| Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration; With HDD: 10G, IEC 60068-2-27, half sine, 11 ms duration | |
| Certification | ||
| EMC | CE/FCC Class B, CCC, BSMI | |
| Safety Certifications | UL 62368, CB 62368, CCC, BSMI | |
