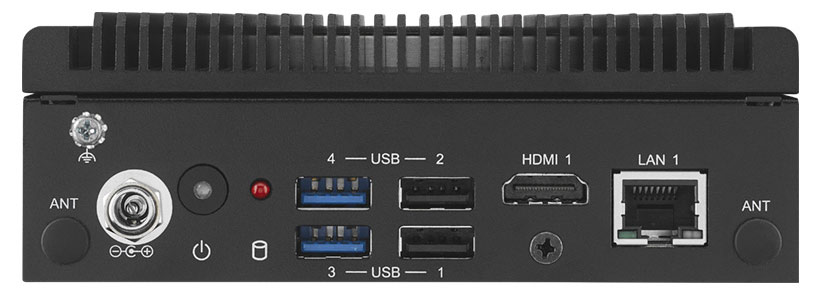

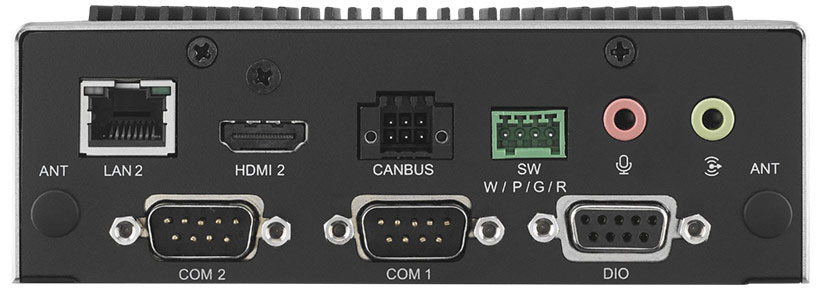

AD-ARK-1125H
Intel® Processor N200 QC SoC with Dual HDMI, Dual GbE, Dual Serial Ports, Dual CANBus, Remote Switch, USB x4
- Intel® Processor N-series N200 QC SoC
- DDR5-4800 SO-DIMM memory support up 16G
- Dual HDMI independent display support 4K resolution
- M.2 E Key and B Key for storage and wireless module installation
- TPM for system security by option
- -30 ~ 60 °C extended operating temperature
- 12V lockable DC jack power input
Datasheet
Product Specification
| Model | ARK-1125H-S0A1 (Made in China) ARK-1125H-S0A1U (Made in Taiwan) |
| Processor | |
| CPU | Intel® Processor N200 |
| Core Number | 4 |
| Frequency | 1.0GHz, Max Turbo Frequency up to 3.7GHz |
| BIOS | AMI EFI 256 Mbit |
| Memory | |
| Technology | DDR5 up to 4800MHz |
| Max. Capacity | 16 GB |
| Socket | 1 x 262-pin SO-DIMM |
| ECC Support | No |
| Graphics | |
| HDMI | 2 |
| Dual Display | Yes, HDMI + HDMI , both display support 4K2K resolution |
| Ethernet | |
| Controller | 2 |
| LAN1 | 10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN |
| LAN2 | 10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN |
| Audio | |
| Main System | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| I/O Interface | |
| Serial Port | 2 x RS-232/422/485 port with auto flow control |
| USB Interface | 2 x USB 3.2, 2 x USB 2.0 |
| GPIO | 8-bit |
| Expansion | |
| M.2 | 2x, including 1x M.2 2230E key, 1x M.2 2280 B key with nano SIM holder |
| CAN Bus | 2 |
| Others | |
| Watchdog timer | 255 levels timer interval, setup by software |
| TPM | TPM 2.0 built in |
| Storage | |
| SATA and PCIe/NVMe | 2x, including 1x M.2 2230 E key (PCIe x1) and 1x M.2 2280 B key (PCIe x1) |
| Software Support | |
| Microsoft Windows | Windows 10 |
| Linux | Ubuntu 22.04 |
| Power | |
| Power Type | AT/ATX |
| Input Voltage | 12 VDC power input |
| Power Adaptor | Input: 100-240Vac, Output 12Vdc, 60W |
| Power Consumption | |
| Max. | 29.18W |
| Typical | 10.54W |
| Mechanical | |
| Construction | Aluminum housing |
| Dimensions | 133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71") |
| Mounting | DIN-rail/Wall Mount |
| Weight | 0.7 kg (1.55 lb) |
| Environment | |
| Relative Humidity | 95% @ 40° C (non-condensing) |
| Operating Temperature | With extended temperature peripherals: -30 ~ 60 °C (-22 ~ 140 °F) with 0.7m/s air flow |
| Storage Temperature | - 40 ~ 85° C (-40 ~185° F) |
| Vibration During Operation | 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis |
| Shock During Operation | 30G, IEC60068-2-27, half sine, 11m duration |
| Certification | |
| EMC | CE, FCC, CCC, BSMI |
| Safety Certifications | CB, UL, CCC, BSMI |
