AD-ARK-1125C

Intel® Atom® Processor x7211E DC SoC with Four Serial Ports, HDMI, GbE, GPIO, Remote Switch, USB x4
Anewtech-Systems-Embedded-PC-AI-Inference-System-AD-ARK-1125C
  • Intel® Atom® Processor x7211E Dual Core SoC
  • DDR5-4800 SO-DIMM memory support up 16G
  • Four Serial Ports
  • M.2 E Key, B Key and M Key for storage and wireless module installation
  • TPM for system security by option
  • -30 ~ 60 °C extended operating temperature
  • 12V lockable DC jack power input
Datasheet
AD-ARK-1125C.pdf
Product Specification

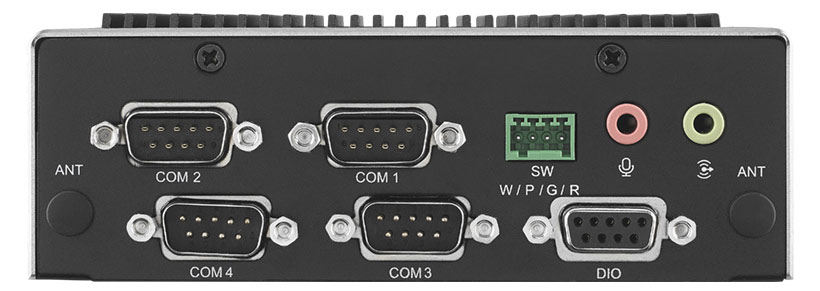

Anewtech-Systems-Embedded-PC-AI-Inference-System-AD-ARK-1125C-Advantech

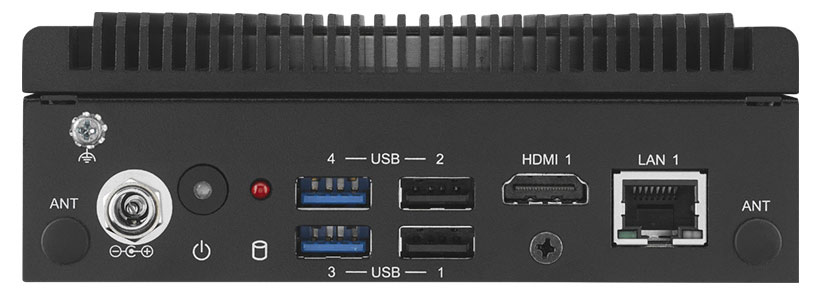

Anewtech-Systems-Embedded-PC-AI-Inference-System-AD-ARK-1125C-Advantech-Singapore
ModelARK-1125C-S0A1ARK-1125C-S0A1UARK-1125C-EN1A1
Processor
CPUIntel Atom® x7211EIntel Atom® x7211EIntel Atom® x7211E
Core Number444
Frequency1.0GHz, Max Turbo Frequency up to 3.2GHz1.0GHz, Max Turbo Frequency up to 3.2GHz1.0GHz, Max Turbo Frequency up to 3.2GHz
BIOSAMI EFI 256 MbitAMI EFI 256 MbitAMI EFI 256 Mbit1
Memory
TechnologyDDR5 up to 4800MHzDDR5 up to 4800MHzDDR5 4800 MHz
Max. Capacity16 GB16 GB16 GB built-in
Socket1 x 262-pin SO-DIMM1 x 262-pin SO-DIMM1 x 262-pin SO-DIMM
ECC SupportNoNoNo1
Graphics
HDMI1111
Ethernet
Controller111
LAN110/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN1
Audio
Main SystemRealtek ALC888S, High Definition Audio, Line-out, Mic-inRealtek ALC888S, High Definition Audio, Line-out, Mic-inRealtek ALC888S, High Definition Audio, Line-out, Mic-in1
I/O Interface
Serial Port4 x RS-232/422/4854 x RS-232/422/4854 x RS-232/422/485
USB Interface2 x USB 3.2, 2 x USB 2.02 x USB 3.2, 2 x USB 2.02 x USB 3.2, 2 x USB 2.0
GPIO8-bit8-bit8-bit1
Expansion
M.23x, including 1x M.2 2230E key, 1x M.2 2242 M key and 1x M.2 2280 B key with nano SIM holder3x, including 1x M.2 2230E key, 1x M.2 2242 M key and 1x M.2 2280 B key with nano SIM holder3x, including 1x M.2 2230E key, 1x M.2 2242 M key and 1x M.2 2280 B key with nano SIM holder1
Others
Watchdog timer255 levels timer interval, setup by software255 levels timer interval, setup by software255 levels timer interval, setup by software
TPMTPM 2.0 built inTPM 2.0 built inTPM 2.0 built in1
Storage
SATA and PCIe/NVMe3x, including 1x M.2 2230 E key (PCIe x1), 1x M.2 2280 B key (PCIe x1) and 1x M.2 2242 M key (PCIe x1, SATA shared with NVMe)3x, including 1x M.2 2230 E key (PCIe x1), 1x M.2 2280 B key (PCIe x1) and 1x M.2 2242 M key (PCIe x1, SATA shared with NVMe)128G PCIe/NVMe M.2 2242 M key built-in1
Software Support
Microsoft WindowsWindows 10/11 IoT Enterprise LTSCWindows 10/11 IoT Enterprise LTSCWindows 10
LinuxUbuntu 22.04Ubuntu 22.04Support by project1
Power
Power TypeAT/ATXAT/ATXAT/ATX
Input Voltage12 VDC power input12 VDC power input12 VDC power input
Power AdaptorInput: 100-240Vac, Output 12Vdc, 60WInput: 100-240Vac, Output 12Vdc, 60WInput: 100-240Vac, Output 12Vdc, 60W1
Power Consumption
Max.19.72W19.72W19.72W
Typical10.05W10.05W6.09W1
Mechanical
ConstructionAluminum housingAluminum housingAluminum housing
Dimensions133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71")133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71")133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71")
MountingDIN-rail/Wall MountDIN-rail/Wall MountDIN-rail/Wall Mount
Weight0.7 kg (1.55 lb)0.7 kg (1.55 lb)0.7 kg (1.55 lb)1
Environment
Relative Humidity95% @ 40° C (non-condensing)95% @ 40° C (non-condensing)95% @ 40° C (non-condensing)
Operating TemperatureWith extended temperature peripherals: -30 ~ 60 °C (-22 ~ 140 °F) with 0.7m/s air flowWith extended temperature peripherals: -30 ~ 60 °C (-22 ~ 140 °F) with 0.7m/s air flow-30 ~ 60 °C (-22 ~ 140 °F) with 0.7m/s air flow
Storage Temperature- 40 ~ 85° C (-40 ~185° F)- 40 ~ 85° C (-40 ~185° F)- 40 ~ 85° C (-40 ~185° F)
Vibration During Operation3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis
Shock During Operation30G, IEC60068-2-27, half sine, 11m duration30G, IEC60068-2-27, half sine, 11m duration30G, IEC60068-2-27, half sine, 11m duration1
Certification
EMCCE, FCC, CCC, BSMICE, FCC, CCC, BSMICE, FCC, CCC, BSMI
Safety CertificationsCB, UL, CCC, BSMICB, UL, CCC, BSMICB, UL, CCC, BSMI
